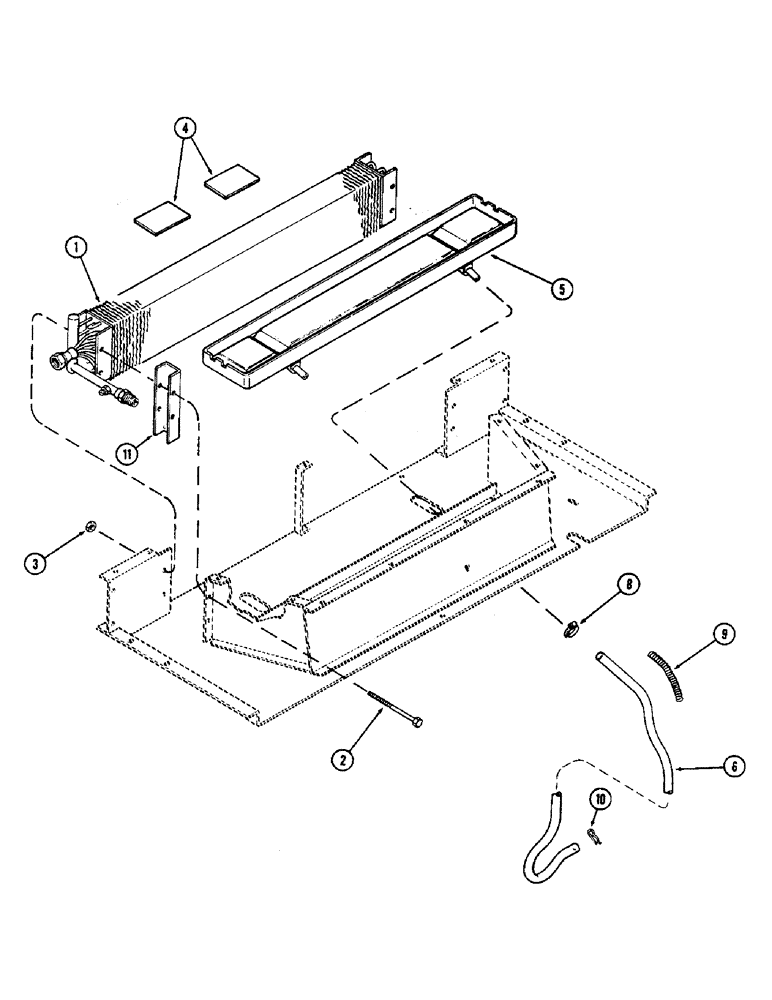

Запчасти Case IH 2470 (512) - CAB, PLENUM WITH AIR CONDITIONING, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63646

EVAPORATOR

- evaporator

1шт.

2

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" NC hex., grade 5

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4"

4шт.

4

345-38

TAPE - 7-1/2" long (190.5 MM), Serial Range: (Cut-size)

2шт.

5

F63750

PAN

- condensation

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - drain, 75" long (1905 MM) (Order A42698)

2шт.

A42698

HOSE

- 1/2" ID x 5/8" OD 50' roll, Serial Range: cut-length

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/6" (12.29 to 26.99 MM)

2шт.

9

F63327

SPRING

- upper, drain hose

2шт.

10

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - internal hair, 1-1/8" long

2шт.

11

F63747

RADIATOR

FILLER - plenum, RH and LH

2шт.
