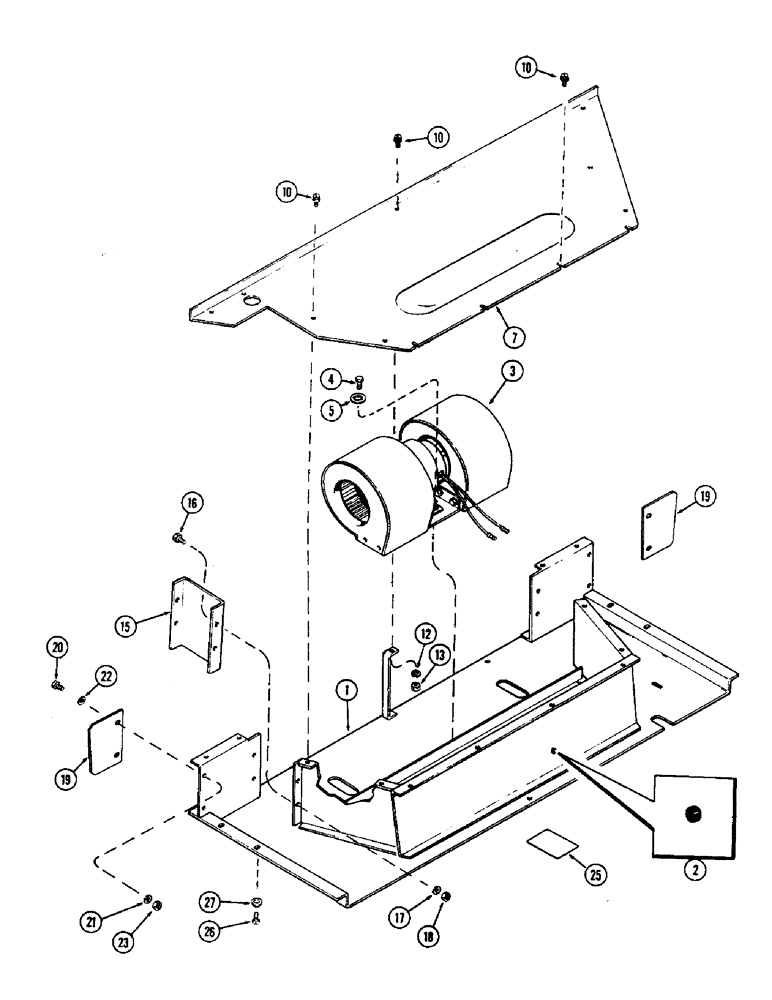

Запчасти Case IH 2470 (504) - CAB, PLENUM, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

F89840

HEATER

PLENUM - cab

1шт.

2

A42502

GROMMET

- blower wire

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - (See figure 536)

1шт.

4

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex. slotted washer head

4шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - lock, #10 internal Shakeproof

4шт.

7

F63745

HEATER

COVER - plenum

1шт.

10

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex. slotted washer head

3шт.

12

195-511

WASHER,#10

- plain, 13/64 x 15/32 x 1/16" (5.16 x 11.91 x 1.59 MM)

1шт.

13

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

1шт.

15

F63749

BRACKET

FILLER - plenum, RH and LH

2шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

19

F63250

SEAL

-, Serial Range: plenum-cab

2шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

195-518

WASHER,1/4", SAE

- plain, 9/32 x 5/8 x 1/16" (7.14 x 15.87 x 1.59 mm)

4шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

25

345-38

TAPE - drip pan holes, 7-1/2" (190.5 MM), Serial Range: (Cut-size)

2шт.

26

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips oval head

3шт.

27

F63765

WASHER

- finishing

3шт.
