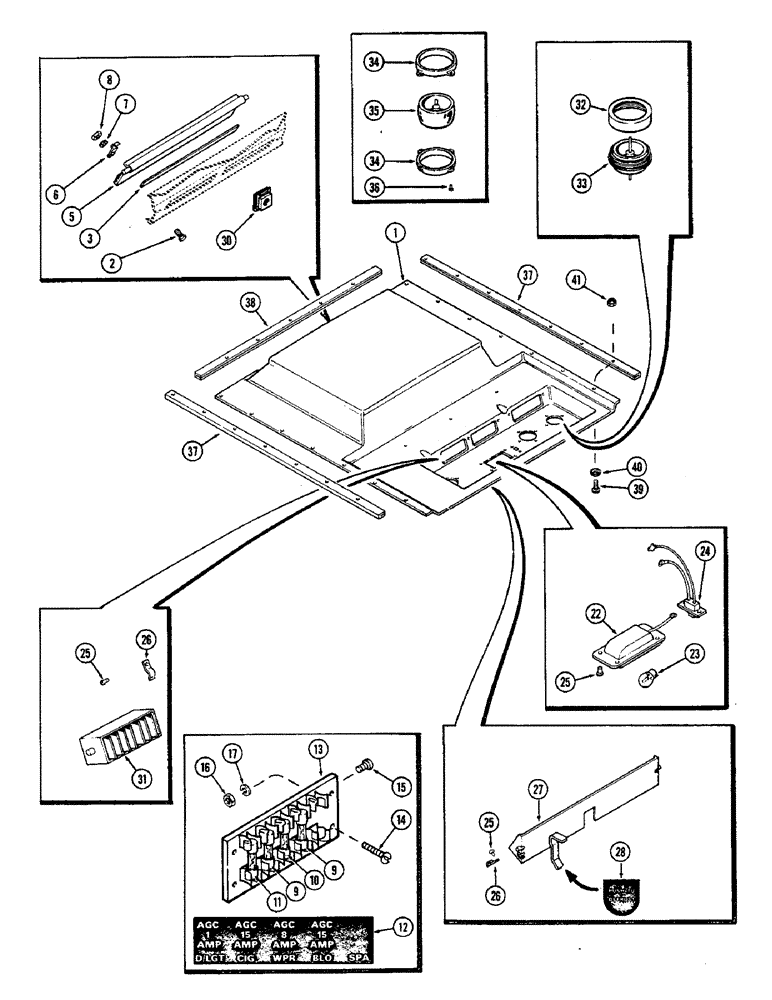

Запчасти Case IH 2470 (498) - CAB, HEADLINER AND LOUVERS, WITH BLADE TYPE FUSE BLOCK TERMINALS CAB SERIAL NO. 7844980 - 7864002 (09) - CHASSIS/ATTACHMENTS

1

F64112

LINING

HEADLINER - cab

1шт.

2

163-11

SCREW,Hex, #10 - 24 x 9/16"

- machine, #10 x 9/16" NC hex.

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - valve (Order A42905)

1шт.

A42905

FOAM

SEAL - foam (50' roll, Serial Range: cut-length)

1шт.

5

F89764

FLAP

VALVE - pressure adjusting

1шт.

6

F63810

CLIP

- valve hinge

2шт.

7

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64" (5.16 x 11.91 x 1.19 MM)

2шт.

8

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.

9

223-15

FUSE,15 Amp, Type 3AG

- 15 amp (Blower and cigar lighter)

2шт.

10

223-35

FUSE,8 Amp, Type 3AG

- 8 amp (Wiper)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- 1 amp (Dome light)

1шт.

12

321-2738

DECAL

- 5 pole fuse block

1шт.

13

F63858

BLOCK

ASSEMBLY - fuse (Includes buss bar)

1шт.

14

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-15 x 5/8" round head self tap

4шт.

15

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- brass, #5-40 x 1/2" round head

1шт.

16

129-630

NUT,#5-40, Brass

- brass, #5-40 hex.

1шт.

17

195-14

WASHER,#12

- lock, #5

1шт.

22

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 23

1шт.

23

B50217

BULB

- dome lamp, #93

1шт.

24

F63760

SWITCH

- dome lamp

1шт.

25

151-526

RIVET,Pop, 1/8" x .337"

14шт.

26

A42575

CLIP

- louver mounting

6шт.

27

F89893

BRACKET

DOOR - defroster

1шт.

28

321-2995

DECAL

- defroster control lever

1шт.

30

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

31

F89673

GUARD

LOUVER - air deflection

2шт.

32

F64131

RING

- louver retaining (Replaces F63776)

3шт.

33

F64132

GUARD

BALL - louver (Replaces F63777)

3шт.

34

F63776

FRAME

RETAINER - ball (Order 1-F64131 and 1-F64132)

6шт.

35

F63777

BALL

LOUVER - ball (Order 1-F64131 and F64132)

3шт.

36

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-15 x 5/8" round head Phillips self tap

12шт.

37

F63800

MOLDING

TRIM - side, headliner

2шт.

38

F63799

MOLDING

TRIM - rear, headliner

1шт.

39

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips drive

19шт.

40

F63765

WASHER

- finishing

19шт.

41

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.
