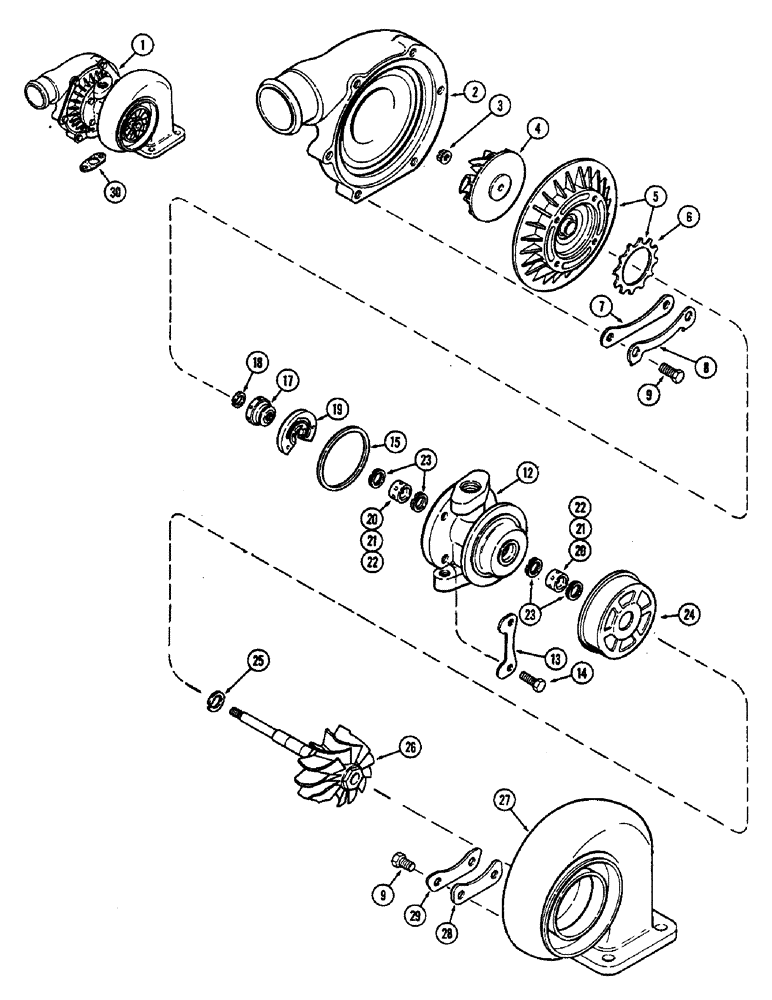

Запчасти Case IH 2470 (030) - TURBOCHARGER ASSEMBLY, 504BDT DIESEL ENGINE (02) - ENGINE

A44499

TURBOCHARGER

ASSEMBLY - remanufactured, Includes: Ref. 2 - 29

1шт.

A44498

CORE-TURBOCHARGER

RETURN NUMBER - use this part no. to return turbocharge core for credit, Includes: Ref. 2 - 29

1шт.

1

A76341

STUD

TURBOCHARGER - new, Includes: Ref. 2 - 29

1шт.

2

A45097

HOUSING

- compressor (Replaces A44837)

1шт.

3

A44831

NUT

- lock, compressor

1шт.

4

A45016

IMPELLER

- turbocharger (Replaces A44835)

1шт.

5

A45095

PLATE

BACKPLATE ASSEMBLY - turbocharger (Replaces A44836), Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44838

CLAMP

- compressor housing

3шт.

8

A44839

PLATE

LOCKPLATE - compressor housing clamp

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

12шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

LOCKPLATE - center, Serial Range: housing-backplate

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

15

A44833

RING

- seal, turbocharger backplate to center housing

1шт.

17

A44830

COLLAR

- thrust, compressor

1шт.

18

A44828

RING

- piston, compressor, 1/2" OD (12.7 MM)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- journal, center, standard (Order A45344)

2шт.

21

A44849

BUSHING

BEARING - journal, center, 0.005" undersize (0.013 MM) (Order A45345)

2шт.

22

A44850

BUSHING

BEARING - journal, center, 0.010" undersize (0.025 MM) (Order A45346)

2шт.

23

A44827

RING

SNAP RING - journal bearing

4шт.

24

A45091

GUARD

SHROUD - center housing side wheel (Replaces A44834)

1шт.

25

A44829

RING

- piston, turbine housing, 23/32" OD (18.26 MM)

1шт.

26

A44841

WHEEL

- turbocharger shaft

1шт.

27

A44840

HOUSING

- turbocharger

1шт.

28

A44823

CLAMP

- turbocharger to turbine housing

3шт.

29

A44824

PLATE

LOCKPLATE - turbocharger to turbine housing

3шт.

30

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

A45344

KIT

- repair, standard center bearing (Includes ref. 15, 18, 19, 20, 23, 25 and 30)

1шт.

A45345

KIT

- repair, 0.005" (0.013 MM) Center bearing (Includes ref. 15, 18, 19, 21, 23, 25 and 30)

1шт.

A45346

KIT

- repair, 0.010" (0.025 MM) Center bearing (Includes ref. 15, 18, 19, 22, 23, 25 and 30)

1шт.
