(490) - CAB, FLOOR MATS, CAB SERIAL NO. 7864002 AND AFTER

Запчасти Case IH 2470 (490) - CAB, FLOOR MATS, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

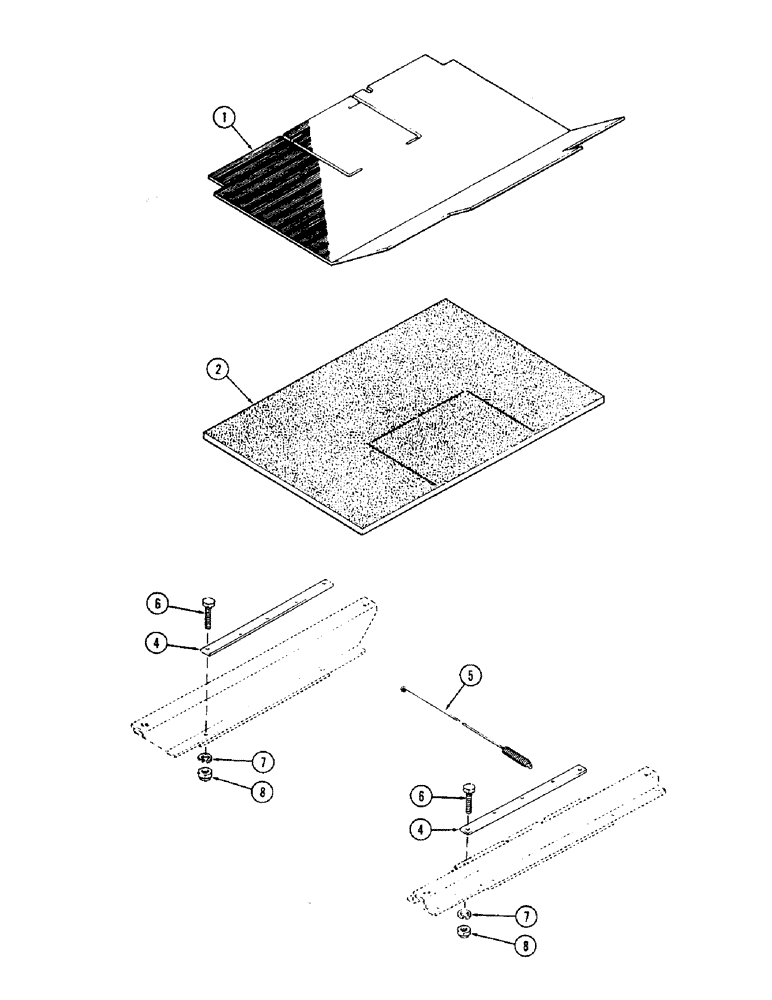

Схема запчастей Case IH 2470 - (490) - CAB, FLOOR MATS, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS
4
2
6
1
6
8
8
7
4
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A165396

MAT

- floor

1шт.

2

A141774

MAT

- transmission cover

1шт.

4

A76182

STRAP

- spring support

2шт.

5

A76184

SPRING

- mat support

3шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

7

192-215

LOCK WASHER,5/8"

5/8"

4шт.

8

129-563

NUT,5/8"-11, G8

- 5/8" NC hex.

4шт.
