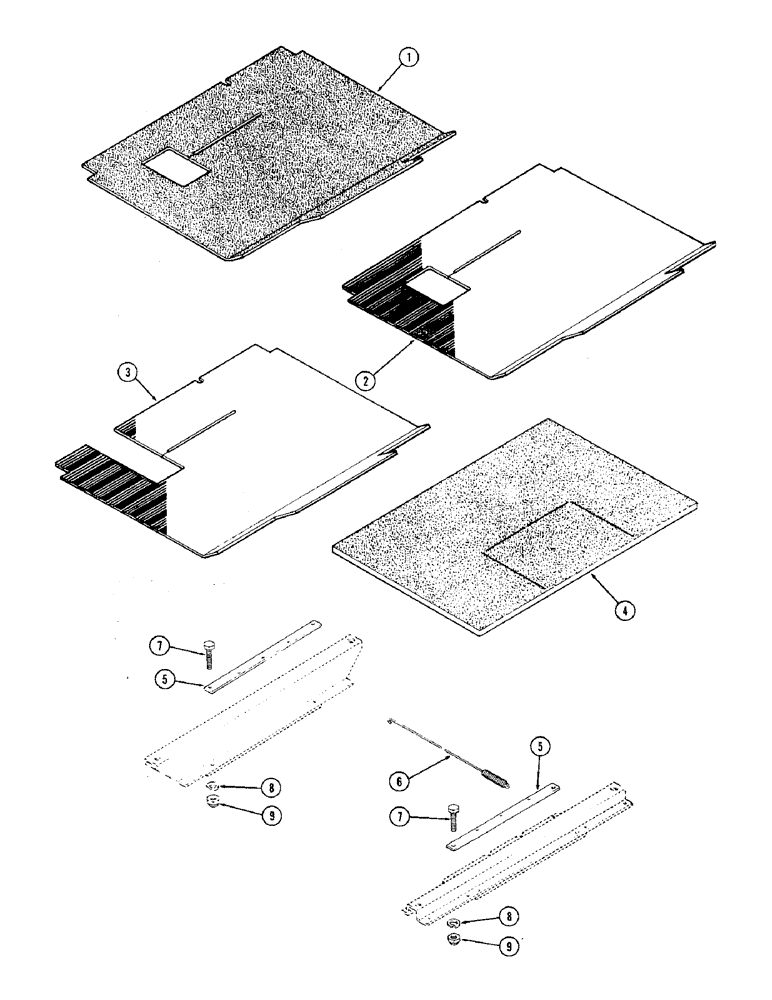

Запчасти Case IH 2470 (488) - CAB, FLOOR MATS, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63570

FLOOR MAT

MAT - floor (Order A137486), Serial Range: -8768068

1шт.

2

A137486

MAT

- floor, Serial Range: 8768086-8792900

1шт.

3

A139932

MAT

- floor, Start Serial: 8792901

1шт.

4

A141774

MAT

- transmission cover (Under cab) (Replaces A76183)

1шт.

5

A76182

STRAP

- spring support

2шт.

6

A76184

SPRING

- mat support

3шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

8

192-215

LOCK WASHER,5/8"

5/8"

4шт.

9

129-563

NUT,5/8"-11, G8

- 5/8" NC hex.

4шт.
