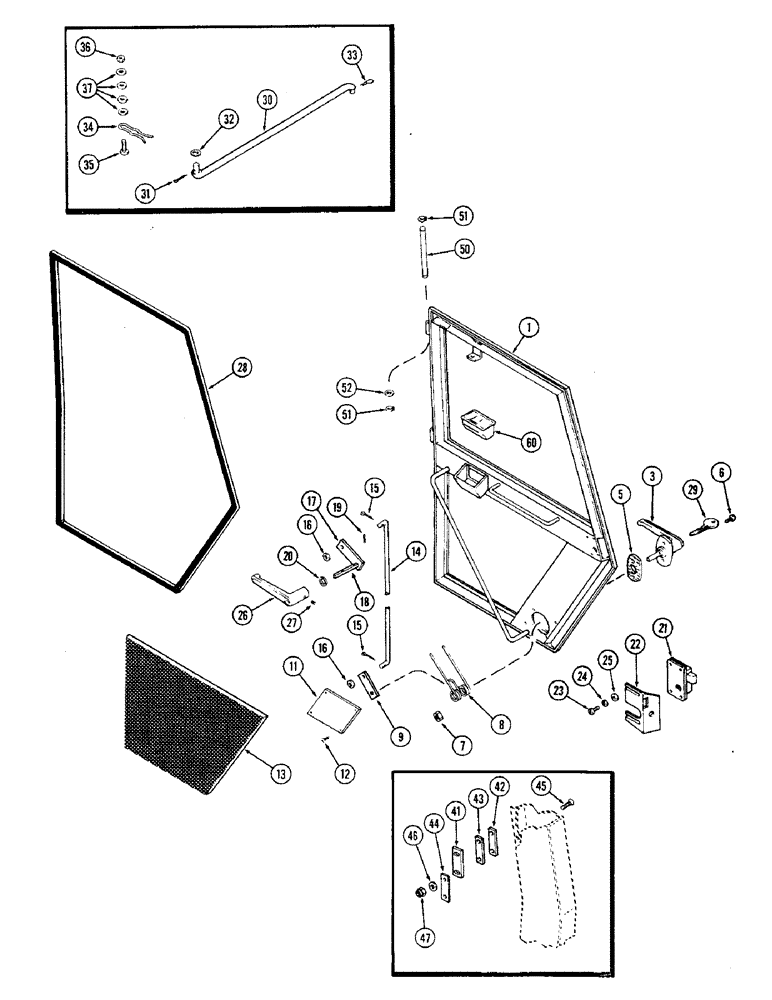

Запчасти Case IH 2470 (478) - CAB, DOOR AND LATCH, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
F98184
DOOR
ASSEMBLY - complete (Includes glass) (Replaces F89771), Includes: Ref. 1 - 28
1шт.
Order glass from figure 564.
1шт.
1
NSS
NOT SOLD SEPARAT
DOOR - cab
1шт.
3
F63966
DOOR
HANDLE - outer
1шт.
5
F63860
GASKET
- handle
1шт.
6
179-154
SCREW,Cross Oval Hd, #10 - 24 x 5/8"
- #10-24 x 5/8" Phillips head
2шт.
7
86625057
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
2шт.
8
F15243
SPRING
- latch arm
1шт.
9
F63739
ARM
- door latch
1шт.
11
F89397
COVER
PLATE - access, door latch
1шт.
12
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
- #10 x 1/2" self-tapping
4шт.
13
F63565
PADDING
- door
1шт.
14
F63551
ROD
- pull, door latch
1шт.
15
132-330
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
16
195-518
WASHER,1/4", SAE
- 9/32 x 5/8 x 5/64" (7.14 x 15.87 x 1.98 mm)
2шт.
17
F63739
ARM
- stub shaft
1шт.
18
F64297
SHAFT
- stub
1шт.
19
136-159
HAIR PIN COTTER,Int, 3/16 x .080"
PIN, SPLIT (COTTER), Int, 3/16 x .080"
1шт.
20
195-529
WASHER,7/16", SAE
- 15/32 x 59/64 x 1/16" (11.91 x 23.42 x 1.59 mm)
1шт.
21
F98123
LATCH
- door
1шт.
22
F63658
COVER
- door latch
1шт.
23
182-528
SCREW,Sl Pan Hd, #10 - 32 x 1/2"
- #10-32 x 1/2" round head, machine
4шт.
24
195-513
WASHER,#10
- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.19 MM)
4шт.
25
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
26
F63925
HANDLE
- inner, door latch, Includes: Ref. 27
1шт.
27
176-49
SCREW - set, 5/16 x 5/16" NC, slotted head cone point
1шт.
28
F64267
DOOR SEAL
STRIP - weather, door frame, 181" (4597.4 MM)
1шт.
29
REF
INSTRUCTION
KEY - door lock (Set of 2) (Ignition key)
1шт.
30
F63930
ROD
- door holder
1шт.
31
132-333
COTTER PIN,1/8" x 5/8"
PIN - cotter, 3/32 x 5/8"
1шт.
32
195-525
WASHER,3/8", SAE
(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE
1шт.
33
136-158
COTTER PIN,Int, 9/64" x .054"
PIN - 1/16 x 9/64" hair
1шт.
34
F63933
PIN
- hair, rod lock (Order F64470)
1шт.
35
182-534
SCREW,Sl Pan Hd, 1/4" - 20 x 1"
- 1/4 x 1" NC round head
1шт.
36
86625061
NUT,1/4"-20, GB
NUT - 1/4" NC hex. lock
1шт.
37
195-102
WASHER,1/4"
- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)
5шт.
41
F63783
CATCH
- door
1шт.
42
F63786
SHIM
- door catch, 3/64" (1.1906 MM)
1шт.
43
F63784
SHIM
- door catch, 7/64" (2.7781 MM) (Order F63785)
1шт.
44
F63785
SHIM
- door catch, 5/64" (1.9844 MM)
1шт.
45
171-248
SCREW,Cross Flat Hd, 1/4" - 20 x 1"
- 1/4 x 1" NC flat head
2шт.
46
195-102
WASHER,1/4"
- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)
2шт.
47
86625061
NUT,1/4"-20, GB
NUT - 1/4" NC hex. lock
2шт.
50
F63729
PIN
- door hinge
2шт.
51
A42589
SNAP RING,#37, Ext
Ring, Snap, , hinge pin #37, Ext
4шт.
52
F64046
WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk
- thrust, hinge pin
2шт.
60
F63395
TRAY
ASH TRAY
1шт.
F64403
SEAL
- door, 100 foot length - cut to length (30.48 M)
1шт.
Выбрано товаров: 48
