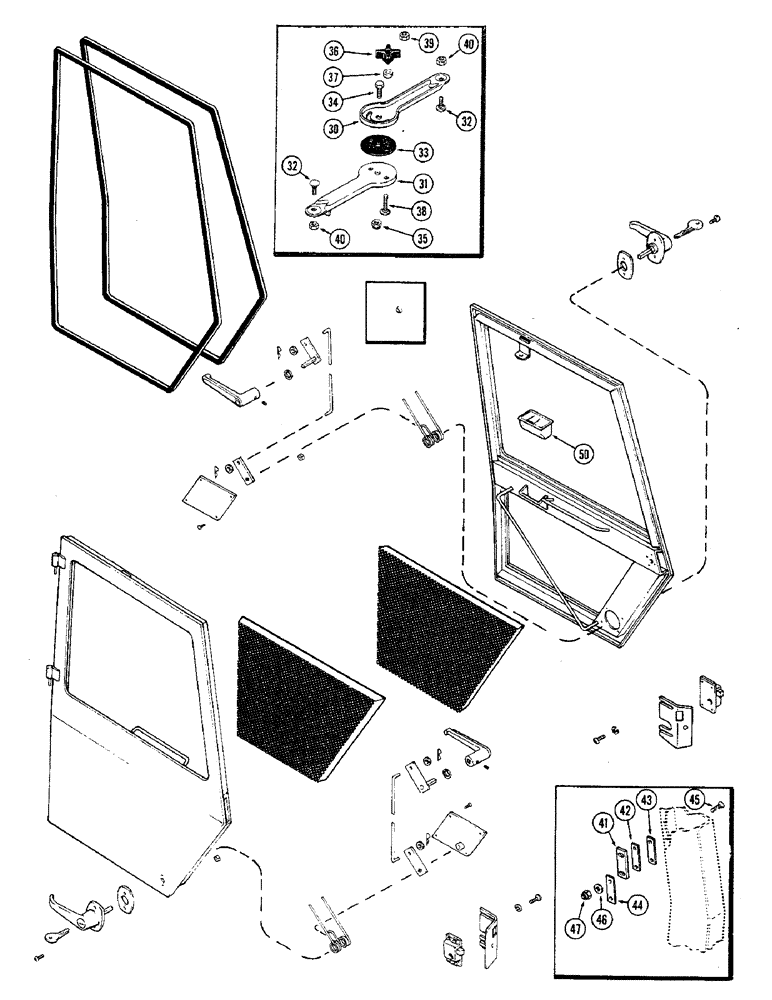

Запчасти Case IH 2470 (476) - CAB, DOORS, PRIOR TO CAB SERIAL NO. 7864002, CONTD (09) - CHASSIS/ATTACHMENTS

30

F63989

ARM

- upper, door holder, 10-3/4" (273.05 MM)

2шт.

31

F89385

ARM

- lower, door holder, 10-3/4" (273.05 MM)

2шт.

32

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" NC round head square neck, grade 2

4шт.

33

F63405

DISC

- friction, door arm

2шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16" NC

2шт.

36

F63415

KNOB

- adjusting, door arm

2шт.

37

F63586

BUSHING

SPACER - arm

2шт.

38

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" NC round head square neck, grade 2

4шт.

39

131-1117

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" NC

4шт.

40

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - 3/8" NC Crownlock

4шт.

41

F63783

CATCH

- door

1шт.

42

F63785

SHIM

- door catch, 5/64" (1.9844 MM)

1шт.

43

F63784

SHIM

- door catch, 7/64" (2.7781 MM) (Order

1шт.

44

F63786

SHIM

- door catch, 3/64" (1.1906 MM)

1шт.

45

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC, Phillips flat head

2шт.

46

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

2шт.

47

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC Esna

2шт.

50

F63395

TRAY

ASH TRAY

1шт.
