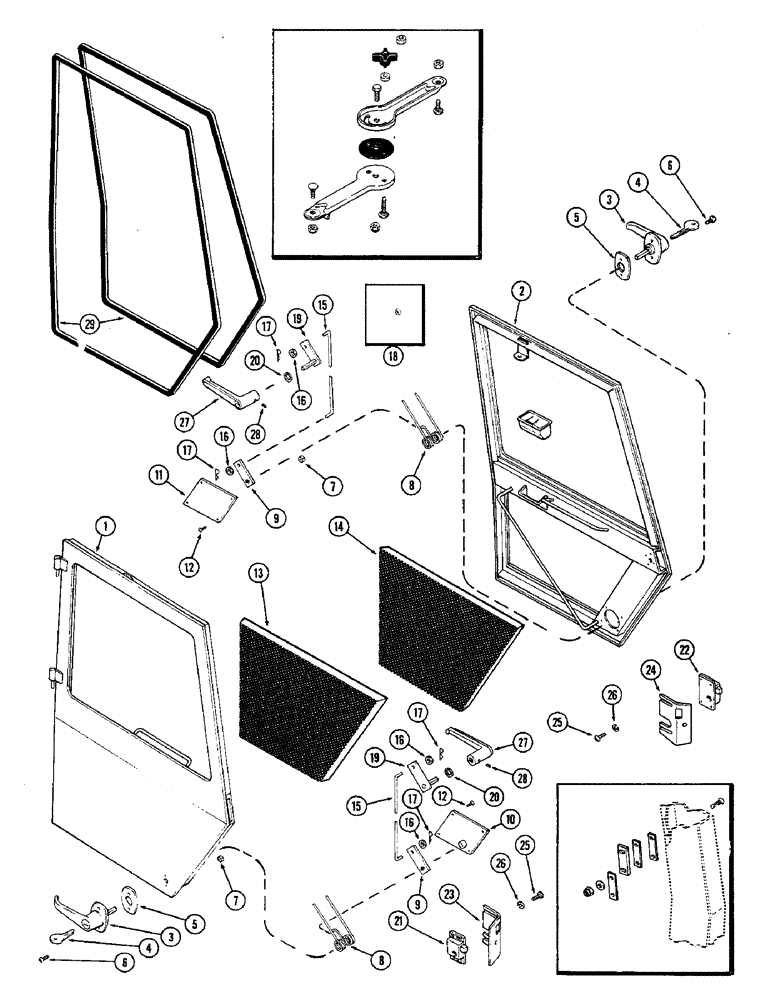

Запчасти Case IH 2470 (474) - CAB, DOORS, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
F89776
DOOR
ASSEMBLY - RH, Includes: Ref. 3 - 29
1шт.
Order glass from figure 562
1шт.
2
F89775
DOOR
ASSEMBLY - LH, Includes: Ref. 3 - 29
1шт.
Order glass from figure 562
1шт.
3
F63554
HANDLE
- outer, Includes: Ref. 4
1шт.
4
A42653
SET OF 2 KEYS
KEY - door lock (Set of 2)
1шт.
5
F63860
GASKET
- handle
1шт.
6
179-154
SCREW,Cross Oval Hd, #10 - 24 x 5/8"
- handle, #10-24 x 5/8" Phillips
2шт.
7
86625057
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
2шт.
8
F15243
SPRING
- latch arm
1шт.
9
F63739
ARM
- door latch
1шт.
10
F89398
COVER PLATE
PLATE - access, RH door latch
1шт.
11
F89397
COVER
PLATE - access, LH door latch
1шт.
12
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
- #10 x 1/2" Phillips self-tapping
4шт.
13
F63557
SKID/SHOE
PADDING - RH door (See figure 494)
1шт.
14
F63565
PADDING
- LH door (See figure 494)
1шт.
15
F63551
ROD
- pull
1шт.
16
195-518
WASHER,1/4", SAE
- 9/32 x 5/8 x 1/16" (7.14 x 15.87 x 1.59 mm) (Used if rod is drilled)
2шт.
17
132-330
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), , Used if rod is drilled 3/32" x 1/2"
2шт.
18
131-416
NUT
- push, 1/4" (Used if rod is not drilled)
2шт.
19
F89758
ARM
- stud shaft
1шт.
20
195-529
WASHER,7/16", SAE
- 15/32 x 59/64 x 1/16" (11.91 x 23.42 x 1.59 mm)
1шт.
21
F89757
LATCH
- RH door (Order F98124)
1шт.
22
F89708
LATCH
- LH door (Order F98123)
1шт.
23
F63659
COVER
- RH door latch
1шт.
24
F63658
COVER
- LH door latch
1шт.
25
182-528
SCREW,Sl Pan Hd, #10 - 32 x 1/2"
- #10-32 x 1/2" round head
4шт.
26
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
27
F63925
HANDLE
ASSEMBLY - inner, door latch, Includes: Ref. 28
1шт.
28
176-49
SCREW - 5/16"-18 x 5/16" slotted head cone point set
1шт.
29
NSS
NOT SOLD SEPARAT
STRIP - weather, door frame (Order F62801)
1шт.
F63801
WEATHERSTRIP
STRIP - weather, 40 foot roll cut to length (1016. MM)
1шт.
