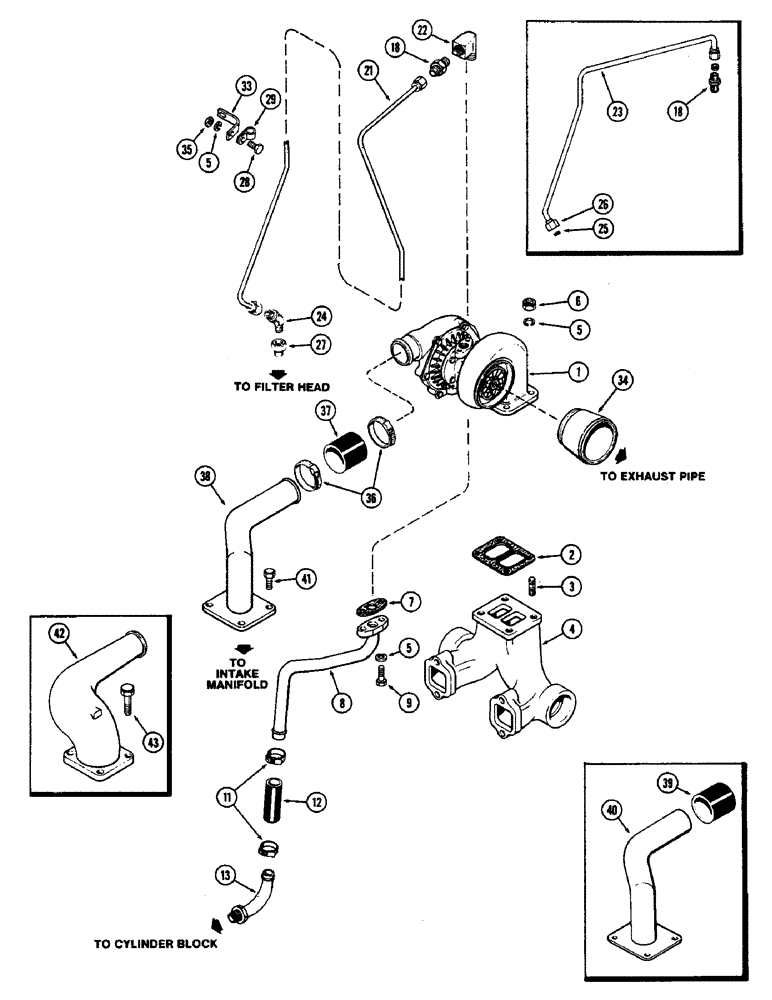

Запчасти Case IH 2470 (028) - TURBOCHARGER, 504BDT DIESEL ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

2470 AFT. S/N 8762940

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBOCHARGER - remanufactured (See figure 30)

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, use this part no. to return turbocharger core for credit

1шт.

1

A76341

STUD

TURBOCHARGER - new (See figure 30)

1шт.

Ref. 1C - A157336 New Turbo

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

STUD - 3/8" NC x 1-1/2"

4шт.

4

A76322

MANIFOLD

MANIFOLD - exhaust, center

1шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, (Prior to engine serial no. 10175026) 3/8"

7шт.

6

131-903

NUT,3/8"-16

NUT - 3/8" NC hex., Seez-Pruf

4шт.

7

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube

1шт.

8

A62518

TUBE

TUBE - oil drain, turbocharger

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, (Replaces 13-616) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 MM)

2шт.

12

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

Drain to fitting (Replaces A58893)

1шт.

13

A58897

FITTING

FITTING - drain

1шт.

18

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR ASSEMBLY - straight

1шт.

21

A153800

TUBE

TUBE - oil supply turbocharger (Engine serial no. 10175026 and after)

1шт.

22

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

ELBOW - tube to turbocharger (Engine serial no. 10175026 and after)

1шт.

23

A75303

TUBE

SPARE PART TUBE - oil supply, turbocharger (Prior to engine serial no. 10175026) (Order A153800 and 217-19)

1шт.

24

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ELBOW ASSEMBLY - 45 degree, Includes: Ref. 25 and 26

1шт.

25

222-154

SLEEVE,3/8" Tube

SLEEVE - (9.53 MM) 3/8" Tube

1шт.

26

222-114

NUT,5/8"-24

NUT - 3/8" tube (9.53 MM)

1шт.

27

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

REDUCER - hex., 3/8 to 1/4"

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, (Prior to engine S/N 10175026) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

29

49845

CLAMP

CLIP - turbocharger oil supply tube

1шт.

33

A75301

BRACKET

BRACKET - clip, held by exhaust manifold bolt (Prior to engine serial no. 10175026)

1шт.

34

A65554

TUBE

CONNECTOR - turbocharger to exhaust pipe (Prior to engine serial no. 10175026)

1шт.

35

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex. (Prior to engine serial no. 10175026)

1шт.

36

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, (33.34 to 57.17 mm) #28, 1.31/2.25 Type F Worm

2шт.

37

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

(Used with A150450)

1шт.

38

A150450

ELBOW

ELBOW - air intake, turbocharger (Replaces A77242)

1шт.

39

A58894

HOSE

HOSE - air intake elbow, 2" ID x 2-3/8" long (60.33 MM) (Used with A77242 and A58903) (Order 1-A150450 elbow and 1-A150449 hose)

1шт.

40

A77242

ELBOW

ELBOW - air intake, turbocharger (Engine serial no. 2579516 and after) (Order 1-A150450 elbow and 1-A150449 hose)

1шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" NC hex, grade 5 (Used with A150450 and A77242)

4шт.

42

A58903

ELBOW UNION

Union Elbow ELBOW - turbo intake (Prior to engine serial no. 2579516) (Order 1-A150450 elbow and 1-A150449 hose)

1шт.

43

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, (Used with A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.
