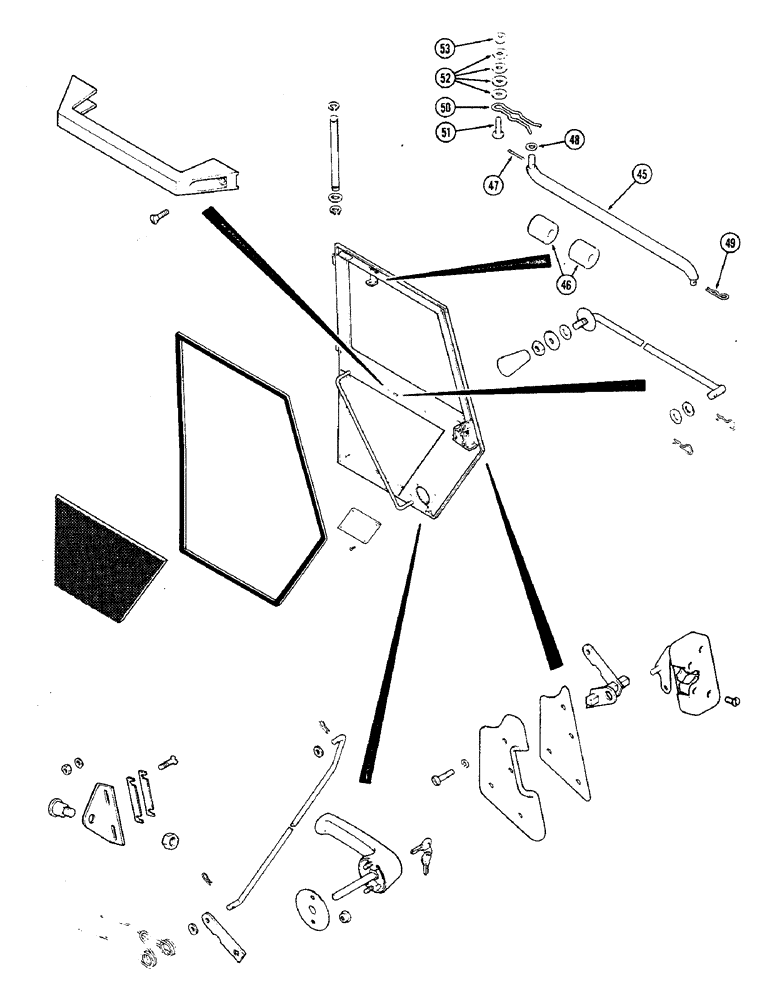

Запчасти Case IH 2470 (472) - CAB, DOOR, WITH ROTARY LATCH, CONTD (09) - CHASSIS/ATTACHMENTS

45

F64407

ROD

- door holder

1шт.

46

F64347

SEAL

BUMPER - 7/16 x 1 x 1" rubber (11.1 x 25.4 x 25.4 MM)

2шт.

47

132-333

COTTER PIN,1/8" x 5/8"

PIN - cotter, 3/32 x 5/8"

1шт.

48

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE

1шт.

49

136-158

COTTER PIN,Int, 9/64" x .054"

PIN - cotter hair, 1/16 x 9/64"

1шт.

50

F64470

COTTER PIN

- hair, rod lock (Replaces F63933)

1шт.

51

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC round head

1шт.

52

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

5шт.

53

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex. lock

1шт.
