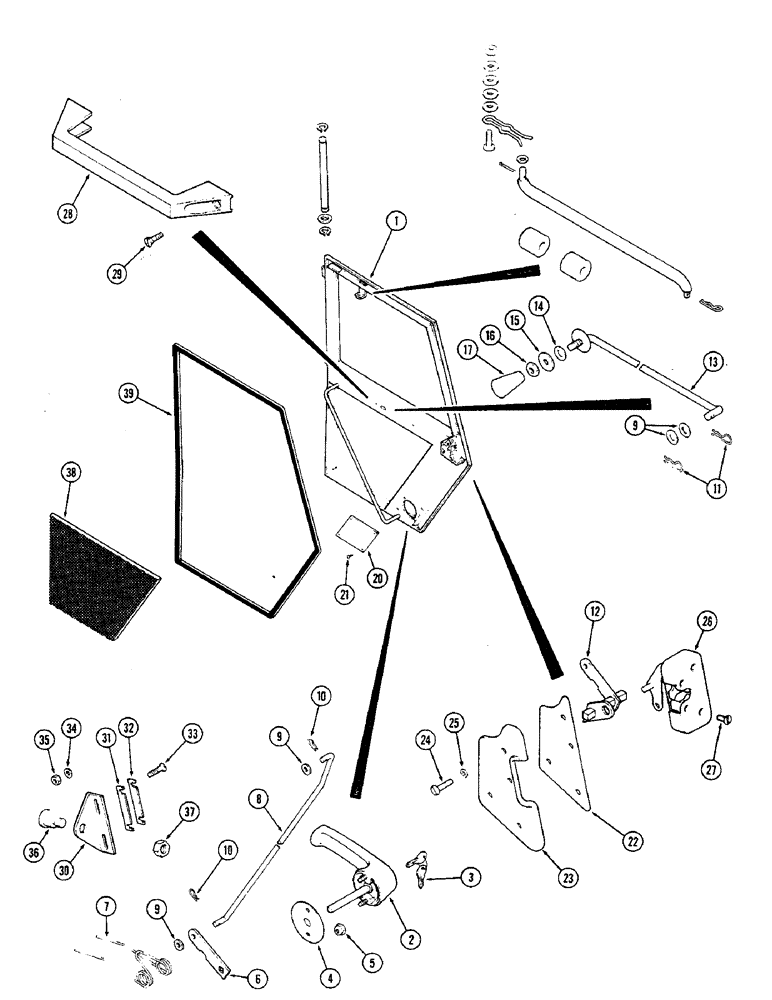

Запчасти Case IH 2470 (470) - CAB, DOOR, WITH ROTARY LATCH (09) - CHASSIS/ATTACHMENTS

F98184

DOOR

ASSEMBLY - complete (Includes glass), Includes: Ref. 1 - 39

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - welded assembly

1шт.

2

F64311

HANDLE

- outer

1шт.

3

A42653

SET OF 2 KEYS

KEY - door lock (Set of 2)

1шт.

4

F64342

GASKET,1.6mm Thk

- handle

1шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

6

F64289

ARM

- door latch, lower

1шт.

7

F15243

SPRING

- lower latch arm

1шт.

8

F64293

ROD

- lower arm to upper arm

1шт.

9

F64384

WASHER

- 17/64 x 9/16 x 1/32" (6.75 x 14.29 x 0.79 MM)

4шт.

10

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - cotter, hair

2шт.

11

136-157

COTTER PIN,Int, 9/64" x .054"

PIN - cotter, hair

2шт.

12

F98228

ARM

- door latch, upper

1шт.

13

F98226

ROD

- latch pull

1шт.

14

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- 25/64 x 3/4 x 1/32" (9.92 x 19.05 x 0.79 MM)

1шт.

15

F64340

WASHER

- shoulder

1шт.

16

131-1280

JAM NUT,Jam, 1/4"-20

NUT - 1/4" NC hex. lock

1шт.

17

F64341

KNOB

- latch rod

1шт.

20

F89397

COVER

PLATE - access, lower

1шт.

21

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" self tapping

4шт.

22

F98227

COVER

- latch

1шт.

23

F64357

COVER

- access, upper

1шт.

24

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- 1/4 x 1/2" slotted head

4шт.

25

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4"

4шт.

26

F64296

LATCH

- rotary

1шт.

27

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- 1/4 x 1-1/4" NC slotted head

4шт.

28

F64344

HANDLE

- door, inner (Order F64547)

1шт.

29

179-157

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" NC slotted head

2шт.

30

F64301

BRACKET

- latch pin

1шт.

31

F63785

SHIM

- door latch bracket, 5/64" (1.98 MM)

2шт.

32

F63786

SHIM

- latch bracket, 3/64" (1.19 MM)

2шт.

33

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC slotted head

2шт.

34

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.14 x 15.87 x 1.98 mm)

2шт.

35

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex.

2шт.

36

F64345

HARDWARE

PIN - latch

1шт.

37

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

38

F64516

INSULATOR

PADDING - door (Replaces F64298)

1шт.

39

F64775

SEAL

STRIP - weather, door frame, 100 foot roll (30.48 M) (Cut as required)

1шт.
