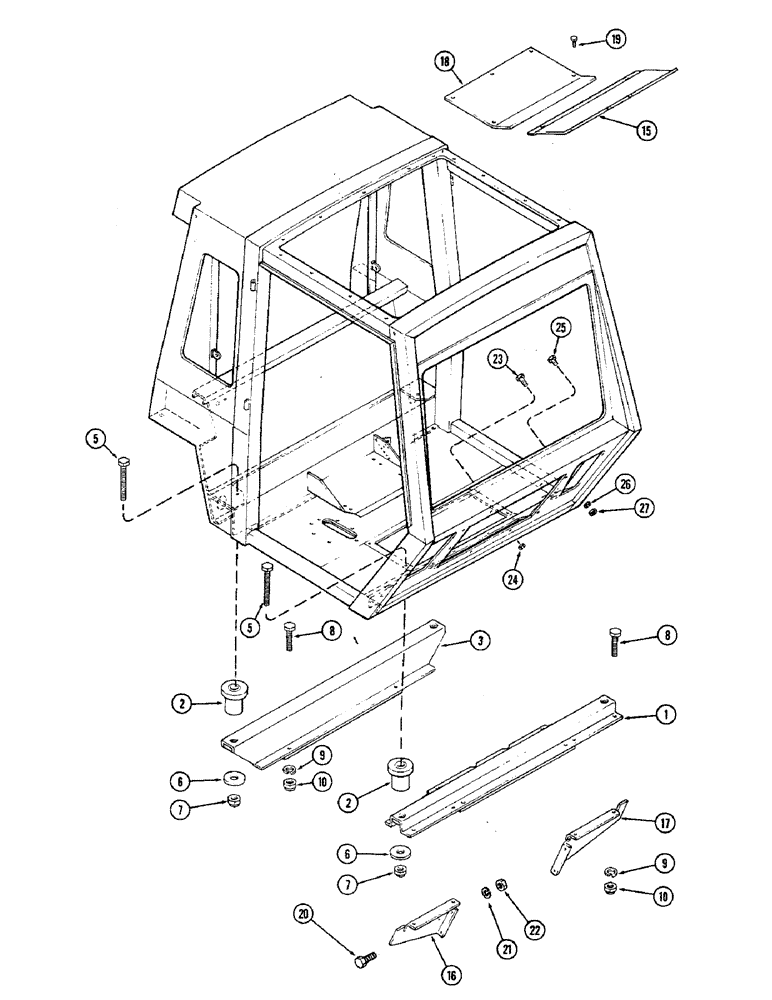

Запчасти Case IH 2470 (466) - CAB, MOUNTING, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

F89768

CHANNEL

MOUNT ASSEMBLY - front

1шт.

2

A140221

MOUNTING PARTS

MOUNT - rubber (Replaces A59516)

4шт.

3

F89767

CHANNEL

MOUNT ASSEMBLY - rear

1шт.

5

114-626

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

4шт.

6

A27903

WASHER

- 21/32 x 2-1/8 x 3/8" (16.67 x 53.87 x 9.52 MM) (Order A156428)

4шт.

7

131-60

LOCK NUT,5/8"-18

NUT - 5/8" NF Esna lock

4шт.

8

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

9

192-215

LOCK WASHER,5/8"

5/8"

8шт.

10

129-563

NUT,5/8"-11, G8

- 5/8" NC hex.

8шт.

15

F89769

DOOR

- instrument console, lower

1шт.

16

F63573

GUSSET

- cross channel, RH front

1шт.

17

F63572

GUSSET

- cross channel, LH front

1шт.

18

F63508

DOOR

- floor access

1шт.

19

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

BOLT - 1/4 x 5/8" hex. self-tapping

5шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Cab to platform) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Cab to platform) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Cab floor panel to cab floor

2шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Cab floor panel) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

A29277

WASHER

- 13/32 x 1 x 1/8" (10.32 x 25.4 x 3.17 MM) (Not shown)

2шт.

25

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Cab floor panel to cockpit) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.
