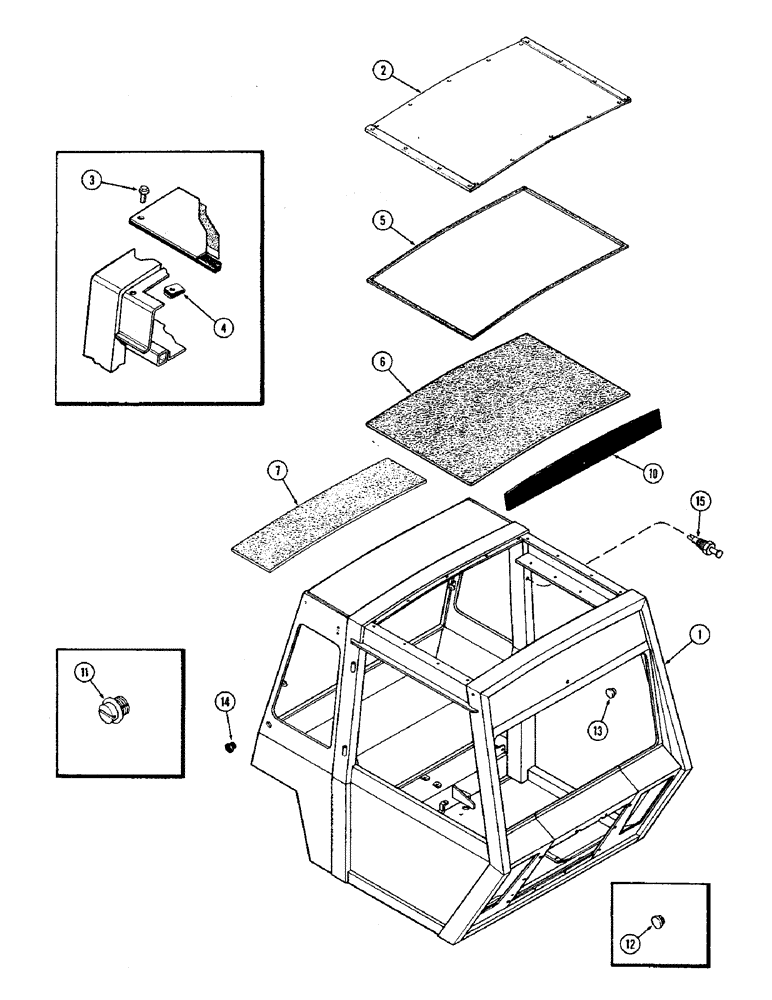

Запчасти Case IH 2470 (464) - CAB, FRAME AND ROOF, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

F98099

CAB - with heater (Machinery item)

1шт.

F98100

CAB - with air conditioning (Machinery item)

1шт.

F98101

CAB - with heater and air conditioning (Machinery item)

1шт.

F98103

CAB - with heater and radio (machinery item)

1шт.

F98104

CAB - with air conditioning and radio (Machinery item)

1шт.

F98105

CAB - with heater, air conditioning and radio (Machinery item)

1шт.

For the F98099, F98100, F98101, F98103, F98104, & F98105, Use F98317.

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab

1шт.

2

F63644

PANEL

ROOF - cab

1шт.

3

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" NC hex., washer head

18шт.

4

131-617

NUT,Ret, J, 1/4"-20

- 1/4" type J Tinnerman speed

18шт.

5

NSS

NOT SOLD SEPARAT

SEAL - roof (Order A42676)

1шт.

A42676

SEAL

- 1/4 x 3/8" x 25 ft. roll (6.35 x 9.525 MM x 635 M), Serial Range: (Cut-length)

1шт.

6

F64430

FOAM

- temperature barrier (Replaces F63722)

1шт.

7

F63352

FOAM

- rear, temperature barrier

1шт.

10

A42582

DECAL

- front upper panel

1шт.

11

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

Push type, Fender mounting hole Dome, 1.000" hole, Nylon

4шт.

13

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4" push type, front post (Without air conditioning)

2шт.

14

A143860

PLUG - RH side, antenna opening (Without radio)

1шт.

15

F63895

SWITCH

- dome light, door opening

1шт.
