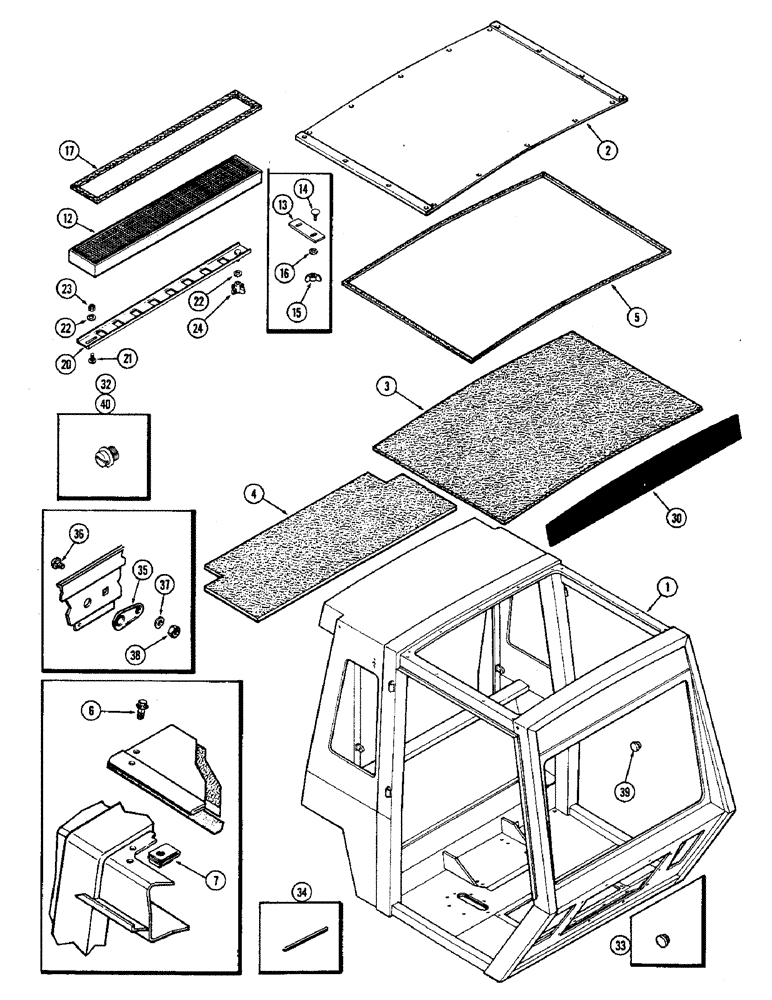

Запчасти Case IH 2470 (462) - CAB, FRAME AND ROOF, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

F89983

CAB - without heater and without air conditioning (Machinery item)

1шт.

F89984

CAB - with air conditioning (Machinery item)

1шт.

F89985

CAB - with heater (Machinery item)

1шт.

F89986

CAB - with heater and with air conditioning (Machinery item)

1шт.

For the A89983, F89984, F89985 & F89986, Use the F98315

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab

1шт.

2

F63644

PANEL

ROOF - cab

1шт.

3

F64430

FOAM

- temperature barrier (Replaces F63722)

1шт.

4

F63812

BAR

FOAM - temperature barrier, rear

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - roof (Order A42676)

1шт.

A42676

SEAL

- 1/4 x 3/8" (6.35 x 9.525 x 635. MM) (25 ft. roll, Serial Range: cut-length)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" NC hex. washer head

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- speed, 1/4" type J Tinnerman

18шт.

12

F64361

FILTER

- air intake (Replaces F63436)

1шт.

13

F63761

CLIP

- filter retainer

2шт.

14

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4 x 3/4" NC round head square neck, grade 2

4шт.

15

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

16

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 1/16" (7.14 x 15.87 x 1.59 mm)

4шт.

17

F63674

SEAL

GASKET - filter seal

1шт.

20

F63642

PLATE

ASSEMBLY - recirculation door

1шт.

21

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

22

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.47 x 1.59 MM)

2шт.

23

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16" NC

1шт.

24

F63415

KNOB

- door control

1шт.

30

A42582

DECAL

- front panel

1шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

33

353-411

PLUG,Dome, 1.000" hole, Nylon

Cab post at fender mounting Dome, 1.000" hole, Nylon

4шт.

34

F63578

GASKET

TRIM - window, 50' roll (1270. MM)

1шт.

35

F63630

COVER - utility

1шт.

36

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4 x 3/4" NC round head square neck, grade 2

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

1шт.

38

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex.

1шт.

39

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4" (Without air conditioning)

2шт.

40

353-401

PLUG,Dome, .312" hole, Nylon

- weld holes, rear rollbar assembly

4шт.
