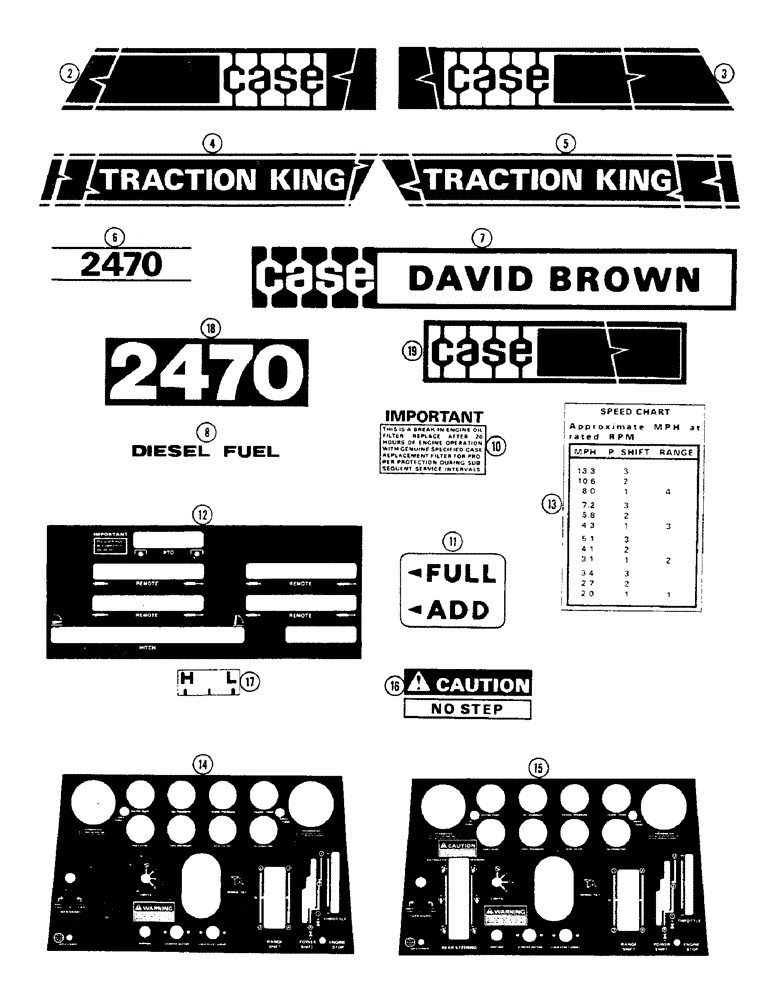

Запчасти Case IH 2470 (458) - DECALS (09) - CHASSIS/ATTACHMENTS

A46003

DECAL

KIT - tractor, complete, Includes: Ref. 2 - 19

1шт.

2

321-2682

DECAL

- Case, hood strip RH

1шт.

3

321-2683

DECAL

- Case, hood strip LH

1шт.

4

321-2684

DECAL

- Traction King, RH

1шт.

5

321-2685

DECAL

- Traction King, LH

1шт.

6

321-2681

DECAL

- 2470

2шт.

7

321-2565

DECAL

- Case-David Brown (Export only)

2шт.

8

321-230

DECAL

- Diesel Fuel, tank filler

2шт.

10

321-3863

DECAL

- Important, engine oil filter (Replaces 321-2101)

2шт.

11

321-2470

DECAL

- Oil Level, transmission

1шт.

12

321-2647

DECAL

- console top

1шт.

13

321-2652

DECAL

- speed chart

1шт.

14

321-3716

DECAL

- instrument panel, without rear steering

1шт.

See figures 422 and 424.

1шт.

15

321-3717

DECAL

- instrument panel, with rear steering

1шт.

See figures 422 and 424.

1шт.

16

321-3292

DECAL

- Caution - No Step (On rear cap)

2шт.

17

321-1335

DECAL

- seat adjustment indicator

1шт.

18

321-4337

DECAL

- 2470, rear of cab

1шт.

19

321-3407

DECAL

- Case, rear of cab

1шт.

A143220

DECAL

KIT - safety decals (See figure 460)

1шт.
