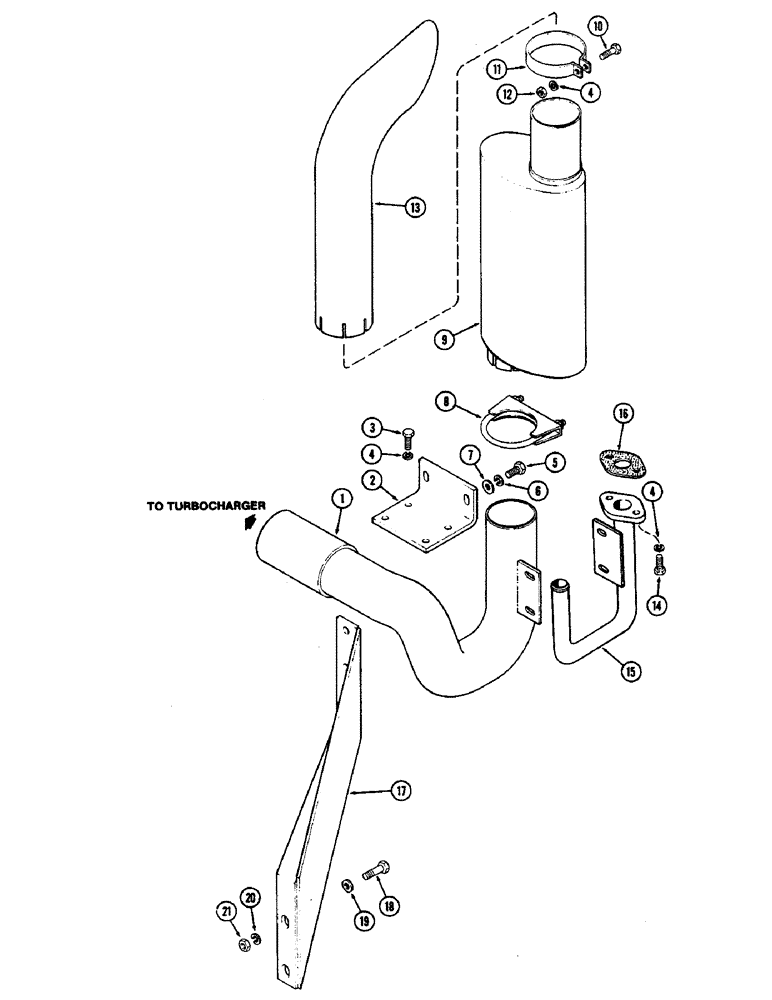

Запчасти Case IH 2470 (026) - MUFFLER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A76049

PIPE

- exhaust

1шт.

2

A76039

BRACKET

- exhaust pipe

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to engine Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Exhaust pipe to bracket Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.92 x 3.17 MM)

2шт.

8

A162896

CLAMP

ASSEMBLY - muffler to pipe (Replaces A56092)

1шт.

9

A147044

MUFFLER

- exhaust (Replaces A76022)

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

A162895

CLAMP

- exhaust stack (Replaces A76061)

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

13

A147045

PIPE

EXTENSION - exhaust (Replaces A76060)

1шт.

14

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Tube to muffler Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

15

A138973

TUBE

- aspirator (Replaces A76054)

1шт.

16

A76059

GASKET

- aspirator tube

1шт.

17

A76190

BRACE - exhaust pipe

1шт.

18

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.92 x 3.17 MM)

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
