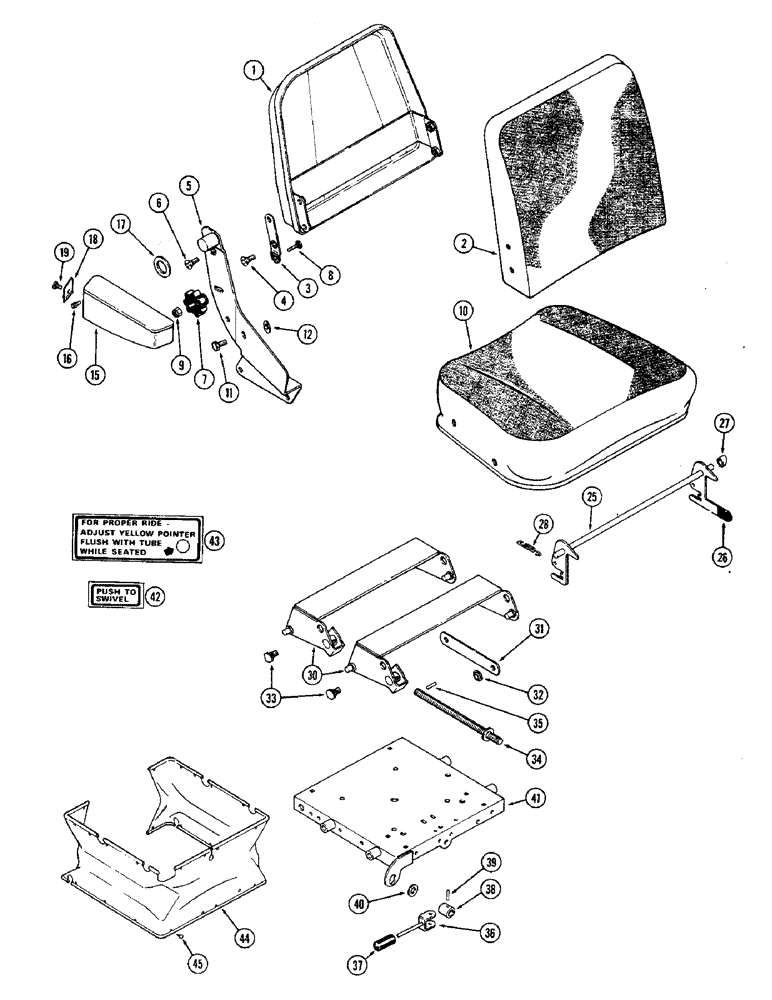

Запчасти Case IH 2470 (452) - SEAT AND UPPER SUSPENSION, 15 DEGREE SWIVEL SEAT, P.I.N. 8792901 AND AFTER (09) - CHASSIS/ATTACHMENTS

A139917

SEAT

AND SUSPENSION ASSEMBLY - 15 degree swivel, Includes: Ref. 1 - 45

1шт.

A45485

BACKREST

ASSEMBLY - cushion, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest pad

1шт.

2

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

3

A47342

LINK

- tilt

2шт.

4

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- 3/8 x 1" NC flat head

2шт.

5

A45528

SUPPORT

BRACKET ASSEMBLY - RH side

1шт.

5

A45529

BRACKET

ASSEMBLY - LH side (Not shown)

1шт.

6

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- 3/8 x 1" NC flat head

2шт.

7

A45487

BUTTON

KNOB - tilt, backrest

2шт.

8

A45493

BOLT - knob, 3/8 x 1-5/8" NC round head square neck

2шт.

9

131-94

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" NC hex., Nylok

2шт.

10

A45494

SEAT

CUSHION

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" NC hex., grade 5

2шт.

12

A45492

WASHER - spacer, 21/32 x 1 x 3/32" (16.67 x 25.4 x 2.38 MM)

2шт.

15

A45489

ARMREST

- RH

1шт.

15

A45488

ARMREST

- LH

1шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - set, #10-24 x 1/2" socket head

2шт.

17

192-123

WASHER

- lock, 1-1/8"

2шт.

18

A45584

COVER

PLATE - cover, RH armrest

1шт.

18

A45583

PLATE

- cover, LH armrest

1шт.

19

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - plate, #10 x 5/8" self-tapping

2шт.

2

A45478

SHAFT

ASSEMBLY - tilt

1шт.

26

A45472

CAP

- tilt handle

1шт.

27

A45482

BUSHING

SPACER - tilt shaft

2шт.

28

NLS

NO LONGER SERVICED

- tension

2шт.

30

A45475

LOWER LINK

LINK - cross

2шт.

31

A45474

LINK

- connecting (Order D82860)

1шт.

32

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

33

A45473

STEP BOLT

BOLT - shoulder

2шт.

34

A45476

SHAFT

- screw, height adjustment

1шт.

35

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

36

A45479

HANDLE - height adjustment

1шт.

37

A45481

HANDLE

GRIP - plastic

1шт.

38

A45480

COLLAR

BOSS - pivot, adjusting handle to screw shaft

1шт.

39

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

40

A45483

WASHER

- thrust, 5/8 x 1-1/4" x 1/16" (15.87 x 31.75 x 1.59 MM)

1шт.

41

NSS

NOT SOLD SEPARAT

PLATE - upper housing

1шт.

42

321-3719

DECAL

- swivel

1шт.

43

321-3721

DECAL

- ride adjustment

1шт.

44

A45507

BOOT

ASSEMBLY - suspension

1шт.

45

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap, 1/2" button

24шт.
