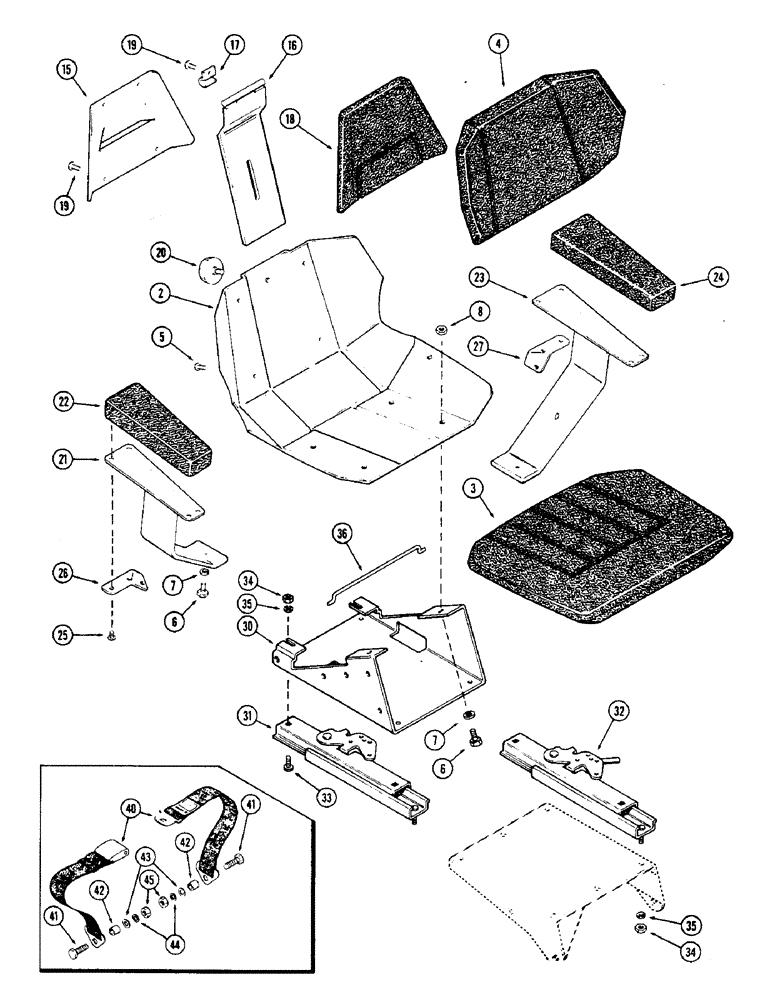

Запчасти Case IH 2470 (448) - AGRI-KING CLOTH SEAT ASSEMBLY, PRIOR TO P.I.N. 8792901 (09) - CHASSIS/ATTACHMENTS

A66652

SEAT

ASSEMBLY - Agri-King deluxe, Includes: Ref. 2 - 27

1шт.

2

A66642

FRAME

- seat

1шт.

3

A64827

CUSHION

ASSEMBLY - seat bottom with pan

1шт.

4

A64830

CUSHION

ASSEMBLY - seat and lower backrest with pan

1шт.

5

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- machine, #10 NC x 3/8" pan head

6шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

4шт.

NSS

NOT SOLD SEPARAT

BACKREST ASSEMBLY - seat, Includes: Ref. 15 - 19

1шт.

15

A66649

SUPPORT

FRAME - upper backrest pivot

1шт.

16

A66648

SUPPORT

SPRING - seat backrest

1шт.

17

A60479

CLIP

- upper backrest pivot

2шт.

18

A64832

CUSHION

ASSEMBLY - backrest

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- machine, #10 NC x 3/8" pan head

6шт.

20

A60468

KNOB

- backrest adjusting

1шт.

21

A66643

SUPPORT

- armrest, RH

1шт.

22

A64834

CUSHION

ARMREST ASSEMBLY - RH cloth cushion assembly

1шт.

23

A66644

SUPPORT

- armrest, LH

1шт.

24

A64835

CUSHION

ARMREST ASSEMBLY - LH cloth cushion assembly

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - machine, #10 x 1/2" round head top

8шт.

26

A66645

SUPPORT

- RH armrest to lower backrest

1шт.

27

A66646

SUPPORT

- LH armrest to lower backrest

1шт.

30

A64817

SUPPORT - seat, upper

1шт.

31

A64818

ADJUSTER

ASSEMBLY - seat (RH)

1шт.

32

A64819

ADJUSTER

ASSEMBLY - seat (LH)

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

34

9635082

NUT,5/16" - 18, Gr 5

8шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

36

A64822

ROD - seat lock

1шт.

40

A160404

SAFETY BELT

BELT - safety, seat (Replaces A66391)

1шт.

41

A61946

STEP BOLT

BOLT - shoulder, seat belt, safety

2шт.

42

A60907

BUSHING

SPACER - seat belt anchor, safety

2шт.

43

195-529

WASHER,7/16", SAE

- flat, 7/16", safety seat belt

2шт.

44

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

45

425-117

NUT,7/16"-20, G5

- 7/16" NF hex., safety seat belt

2шт.
