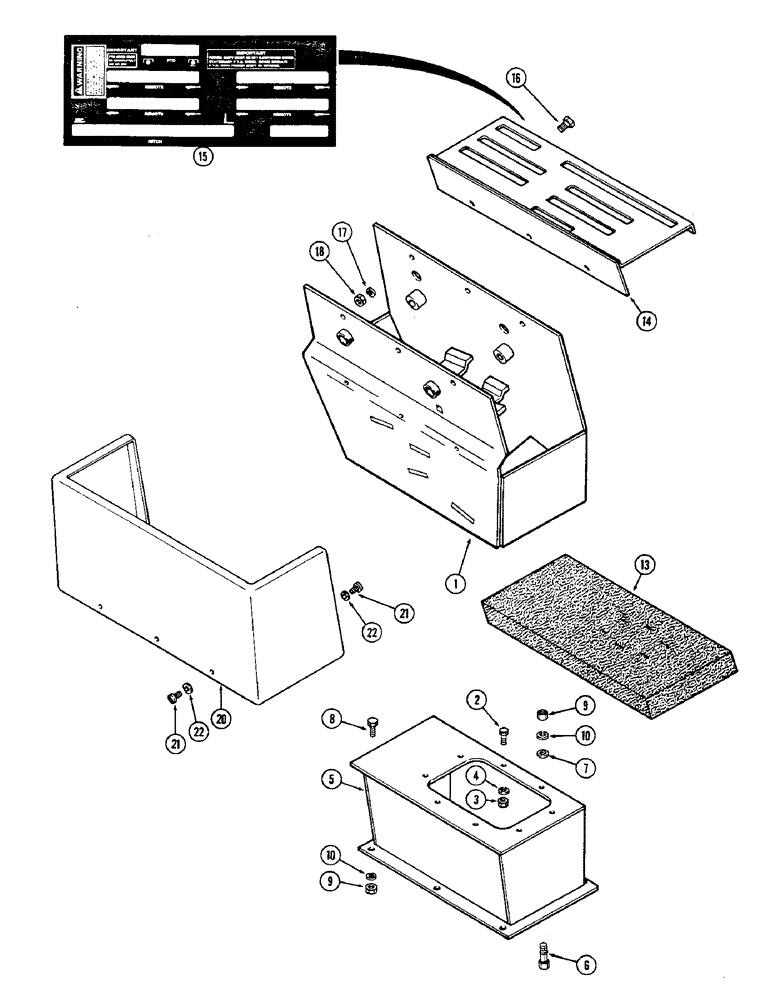

Запчасти Case IH 2470 (440) - CONTROL CONSOLE, P.I.N. 8792901 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A139930

CONSOLE - operators

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

3

9635082

NUT,5/16" - 18, Gr 5

8шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

5

A139935

SUPPORT - console

1шт.

6

113-239

SCREW

BOLT - 3/8 x 1-1/2" NC hex., grade 5, to seat support

1шт.

7

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

1шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

13

A135233

PAD

- dust, console

1шт.

14

A143837

COVER

- top, consle (Replaces A76454)

1шт.

15

321-2647

DECAL

- console top cover (For additional decals see figure 460)

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

20

A75727

PROTECTOR

JACKET - console

1шт.

21

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, 1/4 x 1/2" NC indented hex.

5шт.

22

195-517

WASHER,1/4"

- 17/64 x 5/8 x 3/64" (6.75 x 15.87 x 1.19 MM)

5шт.
