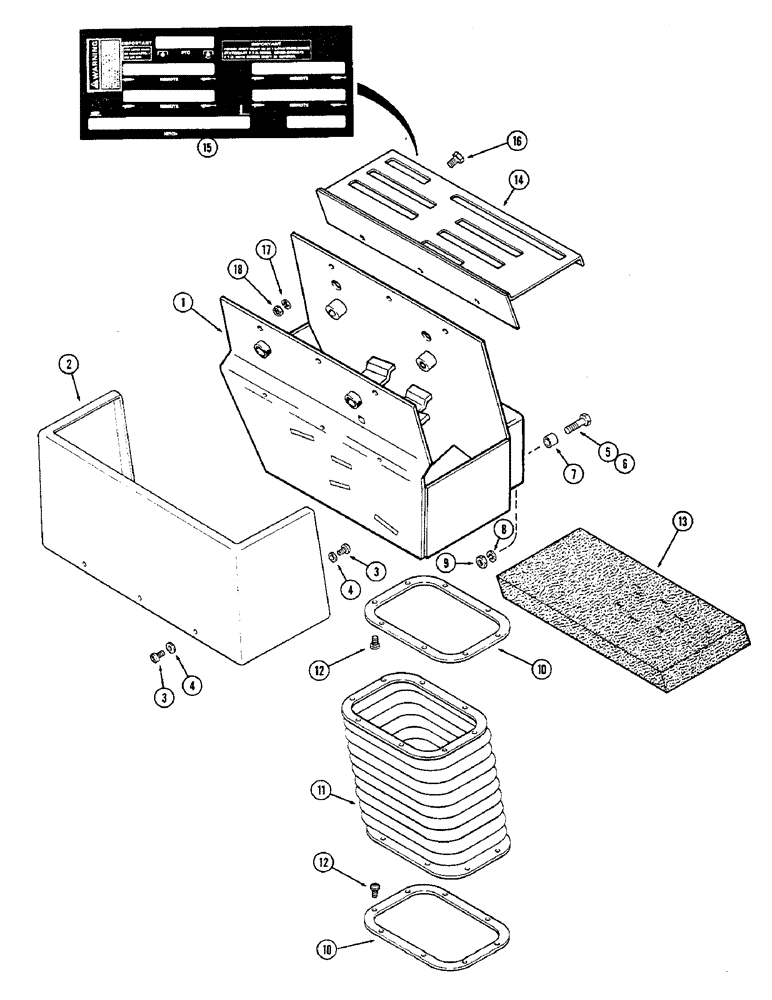

Запчасти Case IH 2470 (438) - CONTROL CONSOLE, PRIOR TO P.I.N. 8792901 (09) - CHASSIS/ATTACHMENTS

1

A76749

CONSOLE - operators

1шт.

2

A75727

PROTECTOR

JACKET - console

1шт.

3

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - 1/4 x 1/2" NC self-tapping

6шт.

4

195-517

WASHER,1/4"

- flat, 17/64 x 5/8 x 16 gauge (6.75 x 15.87 x 1.59 MM)

5шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Used on Agri-King seat mounting) Hex, 3/8"-16 x 1 1/2", G5

4шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

. (Used on series 30 deluxe seat mounting) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

B18306

SPACER - console mounting (Used on Agri-King seat mounting)

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

A75724

RING - console boot

2шт.

11

A75723

BOOT - cable, console

1шт.

2

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - 1/4 x 1/2" NC self-tapping

16шт.

13

A135233

PAD

- dust, console

1шт.

14

A76454

COVER

- console, top

1шт.

15

321-2647

DECAL

- console top (For additional decals, see figure 460)

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.
