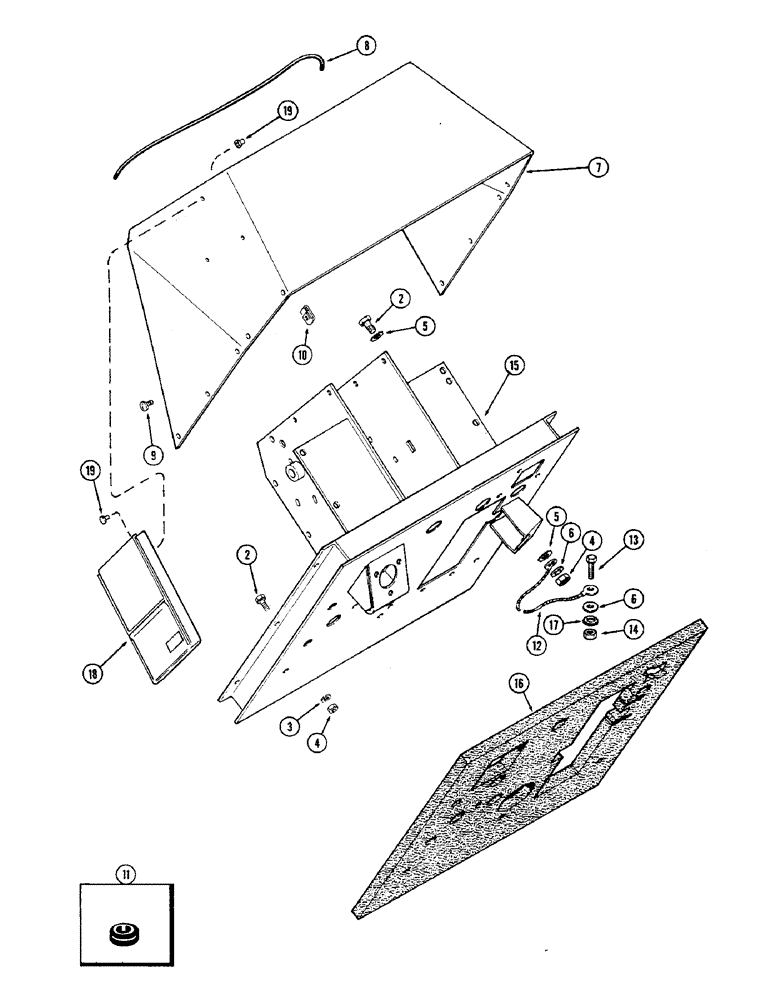

Запчасти Case IH 2470 (436) - INSTRUMENT PANEL COWL (09) - CHASSIS/ATTACHMENTS

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cowl to cab Hex, 3/8"-16 x 1", G5, Full Thd

10шт.

3

92-6

LOCK WASHER,3/8"

9шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

8шт.

5

193-72

LOCK WASHER

- 3/8" internal/external teeth (Used with ground strap, center bolt, LH side)

2шт.

6

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16" (11.11 x 25.4 x 1.59 MM)

2шт.

7

A141969

GUARD

COWL - instrument panel (Replaces A75389)

1шт.

8

A76234

ROPE

CORD - instrument panel cowl

1шт.

9

A75390

STUD

- cowl

10шт.

10

A36042

CLIP

RECEPTACLE - clip-on (Replaces L40219)

10шт.

11

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- shift cable and throttle cable

2шт.

12

A64704

STRAP

- grounding (LH center bolt on firewall to front bolt on LH hood support)

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

15

A77206

SUPPORT ASSEMBLY - cowl, Includes: Ref. 16

1шт.

16

A77207

PAD

- cowl support

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

18

A141933

BOX

- operator's manual

1шт.

19

A143300

FASTENER

- speed clinch

3шт.
