(432) - STEP, GUARD AND HAND RAIL, PRIOR TO P.I.N. 8825666

Запчасти Case IH 2470 (432) - STEP, GUARD AND HAND RAIL, PRIOR TO P.I.N. 8825666 (09) - CHASSIS/ATTACHMENTS

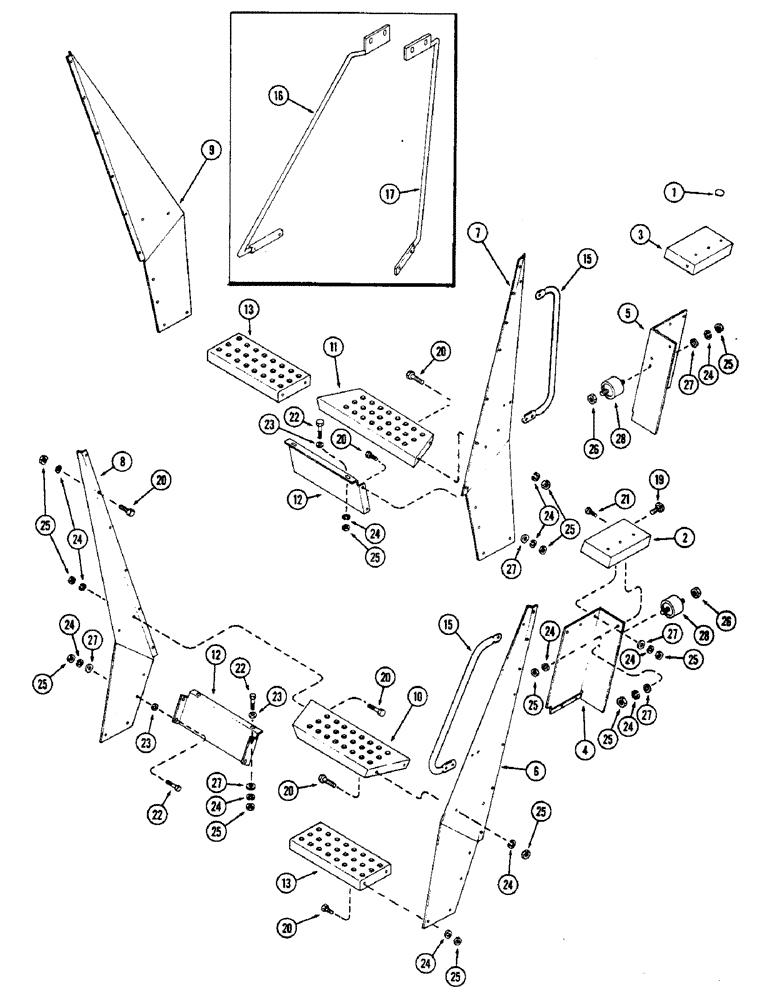

Схема запчастей Case IH 2470 - (432) - STEP, GUARD AND HAND RAIL, PRIOR TO P.I.N. 8825666 (09) - CHASSIS/ATTACHMENTS
23
16
27
25
24
25
24
24
24
23
20
27
28
7
27
15
26
24
22
25
13
6
11
25
12
4
26
1
15
25
20
24
20
24
27
22
24
28
12
24
8
25
17
9
27
13
3
22
25
27
2
25
24
20
20
25
24
20
25
19
23
21
5
10
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

205-23

PLUG,17/32"

- button

5шт.

2

A75554

CAP - front RH

1шт.

3

A75555

CAP - front LH

1шт.

4

A75552

GUARD

- front RH

1шт.

5

A75553

GUARD

- front LH

1шт.

6

A139486

BRACKET

- step mounting, front RH (Replaces A75556)

1шт.

7

A139485

BRACKET

- step mounting, front LH (Replaces A75557)

1шт.

8

A75566

BRACKET - step mounting, rear RH

1шт.

9

A75567

BRACKET - step mounting, rear LH

1шт.

0

A75564

STEP - upper RH

1шт.

11

A75565

STEP - upper LH

1шт.

12

A75562

STIFFENER - bracket, RH and LH

2шт.

13

A75563

STEP

- lower, RH and LH

2шт.

15

A139487

RAIL

- hand, RH and LH (Formed tube)

2шт.

16

A75558

RAIL - hand RH (Welded)

1шт.

17

A755

RAIL - hand LH (Welded)

1шт.

19

111-340

BOLT,Short NK, 3/8"-16 x 3/4", G2, Full Thd

- 3/8 x 3/4" NC round head square neck

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

64шт.

22

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

23

195-104

WASHER,3/8"

- plain, 3/8"

6шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

121шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

72шт.

26

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" NC Esna

2шт.

27

195-525

WASHER,3/8", SAE

16шт.

28

A75568

BOLT

- mounting, front, Serial Range: guard-cab

2шт.
