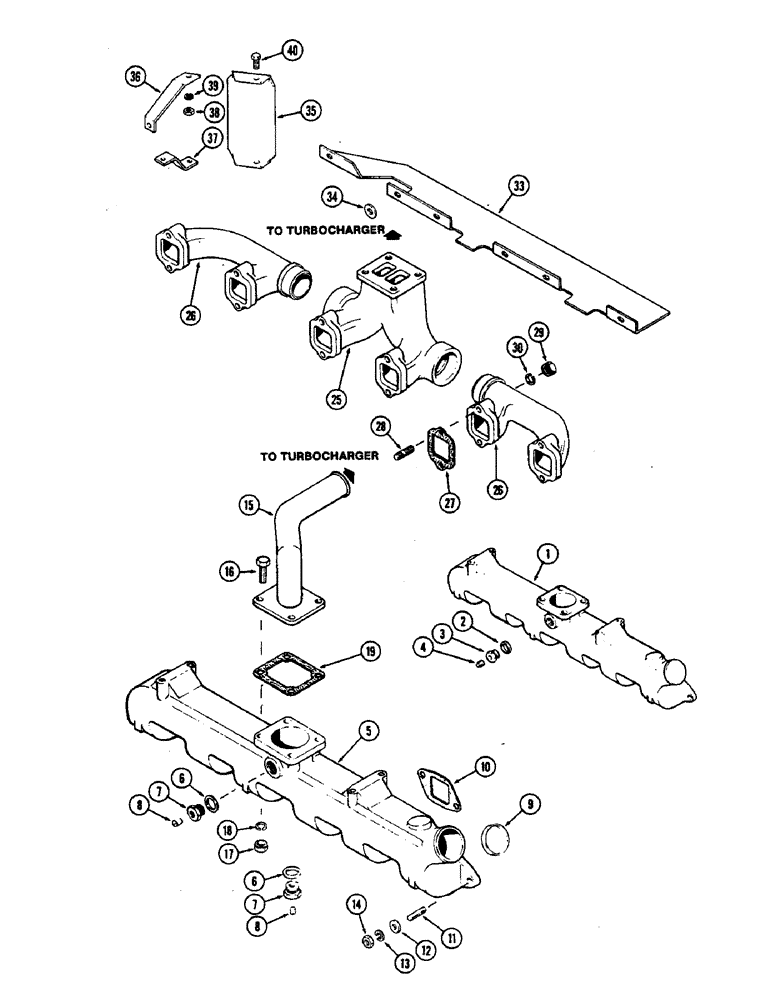

Запчасти Case IH 2470 (024) - MANIFOLDS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug, heater hole, Includes: Ref. 3 and 4

2шт.

3

L10283

PLUG

- manifold heater hole

2шт.

4

221-1849

PLUG

- 1/8" PT hex. socket

2шт.

5

A66087

MANIFOLD

ASSEMBLY - intake (Order A154446), Includes: Ref. 6 - 9

1шт.

6

A20916

MANIFOLD GASKET

GASKET - plug, heater hole

2шт.

7

L10283

PLUG

- manifold heater hole

2шт.

8

221-41

PLUG

- 1/8" PT slotted headless

2шт.

9

41-1042

PLUG,Cup, 2 5/8"

- cup, 2-5/8" (66.68 MM)

1шт.

10

A58662

MANIFOLD GASKET

- intake manifold

6шт.

11

A59077

STUD

- 3/8" NC x 1-13/16", intake manifold

12шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", intake manifold (10.32 x 20.64 x 1.59 MM)

12шт.

13

92-6

LOCK WASHER,3/8"

12шт.

14

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex., intake manifold

12шт.

15

REF

INSTRUCTION

ELBOW - turbocharger intake (See figure 28)

1шт.

16

REF

INSTRUCTION

BOLT - elbow (See figure 28)

4шт.

17

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex.

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

A58910

GASKET

- air intake elbow

1шт.

25

A76322

MANIFOLD

- exhaust, center

1шт.

26

A65917

MANIFOLD

- exhaust ends

2шт.

27

A58895

GASKET

- exhaust manifold

6шт.

28

A140924

STUD

- 3/8" NC x 2-7/16", exhaust manifold (Replaces A35175)

12шт.

29

131-903

NUT,3/8"-16

NUT - 3/8" NC hex. Seez-Pruf, exhaust manifold

12шт.

30

92-6

LOCK WASHER,3/8"

12шт.

33

A76351

GUARD

SHIELD - heat exhaust

1шт.

34

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

6шт.

35

A76188

GUARD

SHIELD - exhaust manifold

1шт.

36

A76187

SUPPORT

- upper, manifold shield

1шт.

37

A77069

SUPPORT

- lower, manifold shield

1шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

40

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.
