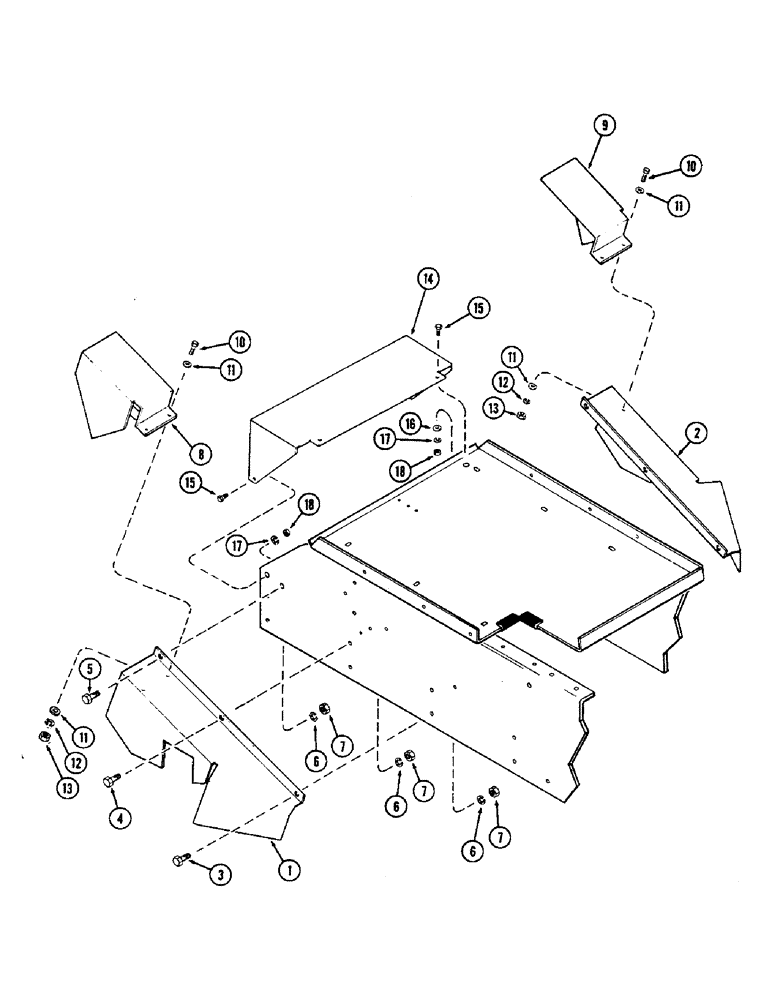

Запчасти Case IH 2470 (430) - MUD SHIELD ATTACHMENT (09) - CHASSIS/ATTACHMENTS

A145350

ATTACHMENT - mud shield (Machinery item), Includes: Ref. 1 - 18

1шт.

1

A141547

SHIELD - rear axle trunnion lower, RH

1шт.

2

A141548

SHIELD - rear axle trunnion lower, LH

1шт.

3

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

4

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

5

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

129-107

NUT,5/8"-11, G5

6шт.

8

A143042

SHIELD - rear axle trunnion upper, RH

1шт.

9

A143154

SHIELD - rear axle trunnion upper, LH

1шт.

10

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

11

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

129-107

NUT,5/8"-11, G5

4шт.

14

A141829

PLATE - rear cover

1шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

16

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
