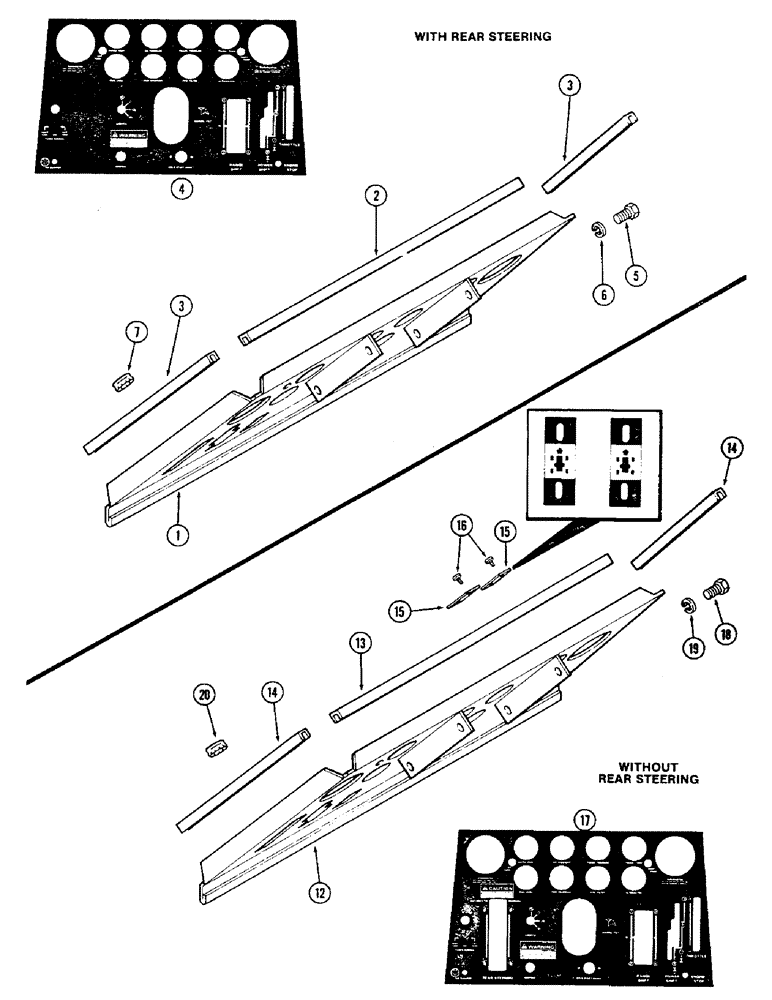

Запчасти Case IH 2470 (424) - INSTRUMENT PANEL, WITHOUT REAR STEER, P.I.N. 8825001 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A143629

PANEL ASSEMBLY - instrument, Includes: Ref. 2 and 3

1шт.

2

A75854

CHANNEL

- top

1шт.

To be attached with adhesive 345-22.

1шт.

3

A75855

CHANNEL

- side

2шт.

To be attached with adhesive 345-22.

1шт.

4

321-3936

DECAL - instrument panel

1шт.

5

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" NC hex.

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

205-29

PLUG - button (In lieu of brake light)

1шт.

12

A145748

PANEL

ASSEMBLY - instrument (Replaces A143626), w/ rear steering, Includes: Ref. 13 and 14

1шт.

13

A75854

CHANNEL

- top, w/ rear steering

1шт.

To be attached with adhesive 345-22.

1шт.

14

A75855

CHANNEL

- side, w/ rear steering

2шт.

To be attached with adhesive 345-22.

1шт.

15

A147162

PLATE

- rear steering adjust

2шт.

16

182-556

SCREW,Cross Pan Hd, #10-24 x 1/4"

- 10-24 x 1/4" pan head machine, w/ rear steering

4шт.

17

321-4226

DECAL

- instrument panel (Replaces 321-3928), w/ rear steering

1шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" NC hex., w/ rear steering

4шт.

19

92-6

LOCK WASHER,3/8"

w/ rear steering 3/8"

4шт.

20

205-29

PLUG - button (In lieu of brake light), w/ rear steering

1шт.
