Запчасти Case IH 2470 (420) - HOOD, SIDES AND TOP (09) - CHASSIS/ATTACHMENTS

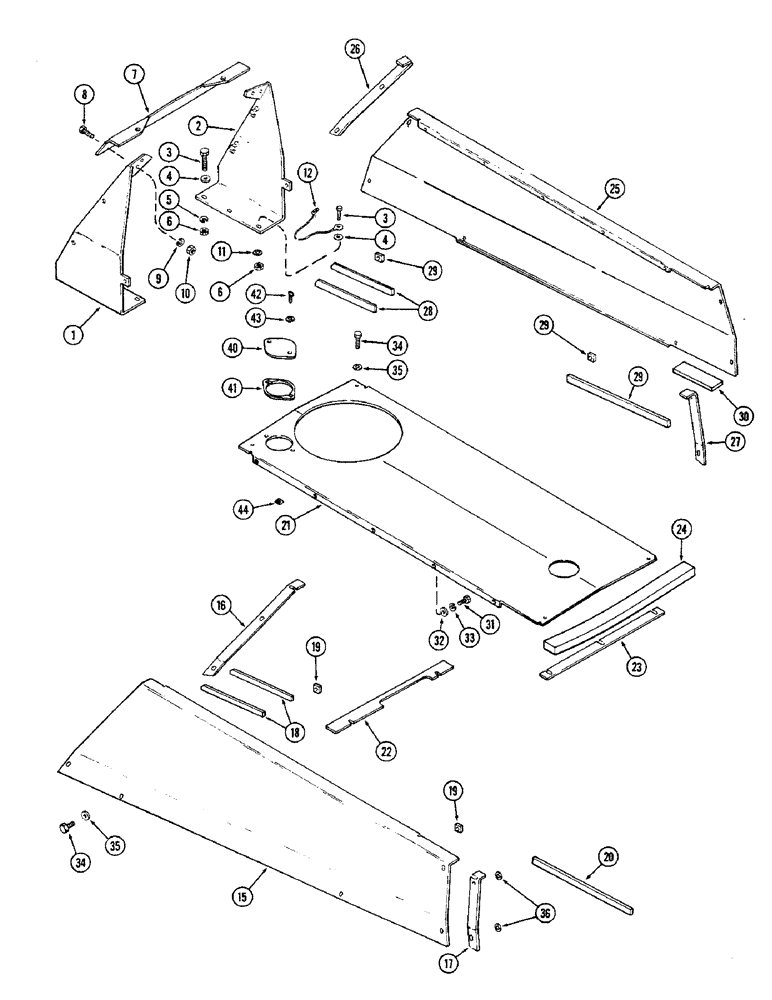

Схема запчастей Case IH 2470 - (420) - HOOD, SIDES AND TOP (09) - CHASSIS/ATTACHMENTS
9
16
44
34
30
8
41
32
28
12
7
15
1
31
4
5
20
19
36
25
42
10
29
18
40
6
22
27
4
33
35
29
29
19
35
34
3
11
2
26
24
6
43
21
3
23
17

Артикул

Название

Примечание

Количество

1

A75776

SUPPORT - RH hood

1шт.

2

A75777

SUPPORT - LH hood

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support to side plate Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

4

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.92 x 3.17 MM)

6шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

7

A75781

TIE - rear hood support

1шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Tie to support Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, (Ground strap bracket bolt LH side) Ext-Int Tooth, 1/2"

1шт.

12

A64704

STRAP

- ground (See figure 436)

1шт.

15

A76824

HOOD ASSEMBLY - side (RH), Includes: Ref. 16 - 20

1шт.

16

A76145

PAD

- side hood, rear

1шт.

To be attached with adhesive 345-22.

1шт.

17

A76144

PAD

- side hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

18

A76146

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

19

A76068

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

20

A76448

SEAL

- side hood

1шт.

To be attached with adhesive 345-22.

1шт.

21

A76840

HOOD ASSEMBLY - top, Includes: Ref. 22 - 24

1шт.

22

A76150

PAD

- top hood, rear

1шт.

To be attached with adhesive 345-22.

1шт.

23

A76151

PAD

- top hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

24

A76450

SEAL - top hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

25

A76845

HOOD ASSEMBLY - side (LH), Includes: Ref. 26 - 30

1шт.

26

A76145

PAD

- side hood, rear

1шт.

To be attached with adhesive 345-22.

1шт.

27

A76144

PAD

- side hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

28

A76146

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

29

A76068

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

30

A76448

SEAL

- side hood

1шт.

To be attached with adhesive 345-22.

1шт.

31

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Side hood to top hood Hex, 3/8"-16 x 7/8", G5, Full Thd

10шт.

32

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

10шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

34

113-288

BOLT - 3/8 x 7/8" NC hex., grade 5, hood, front and rear

17шт.

35

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE

17шт.

36

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm), Hood side to radiator support tabs 3/8", SAE

1шт.

40

A76842

CAP

- hood top

1шт.

41

A76843

PAD

- hood top cap

1шт.

42

A137887

NUT

STUD - wing head (Replaces A61044)

2шт.

43

A61045

RETAINER

WASHER - stud retainer

2шт.

44

A63849

CLIP

RECEPTACLE - clip-on

2шт.
