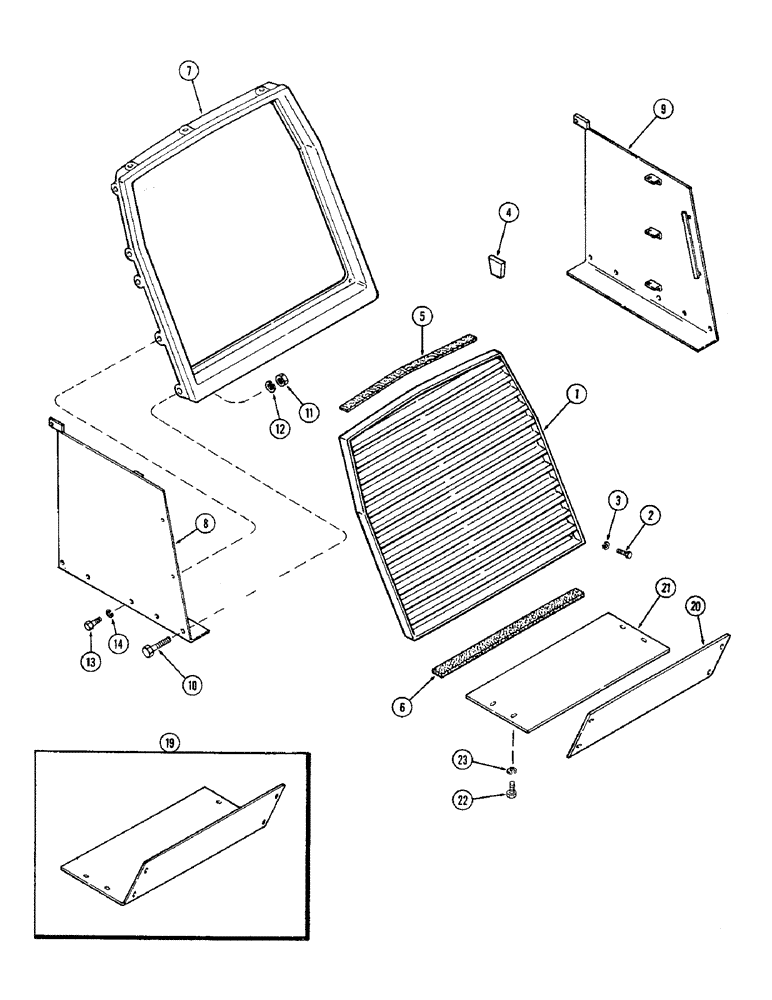

Запчасти Case IH 2470 (418) - RADIATOR GRILLE, RETAINER AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

A77061

GRILLE

- radiator

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Grille to retainer Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

A75547

FOAM - grille screen

22шт.

To be attached with adhesive 345-22.

1шт.

5

A76296

SEAL

- upper grille

1шт.

To be attached with adhesive 345-22.

1шт.

6

A76297

SEAL

- lower grille

1шт.

To be attached with adhesive 345-22.

1шт.

7

A77060

RETAINER

- grille

2шт.

8

A75508

SUPPORT - radiator, RH

1шт.

9

A75509

SUPPORT - radiator, LH

1шт.

10

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8 x 3-3/4" NC hex., grade 5

2шт.

11

129-107

NUT,5/8"-11, G5

2шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Support to retainer Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

A76817

PLATE

- front (Order A140219 and A140220), Serial Range: -8767382

1шт.

20

A140219

PLATE

- upper, front, Start Serial: 8767382

1шт.

21

A140220

PLATE

- lower, front, Start Serial: 8767382

1шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate to sill Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.
