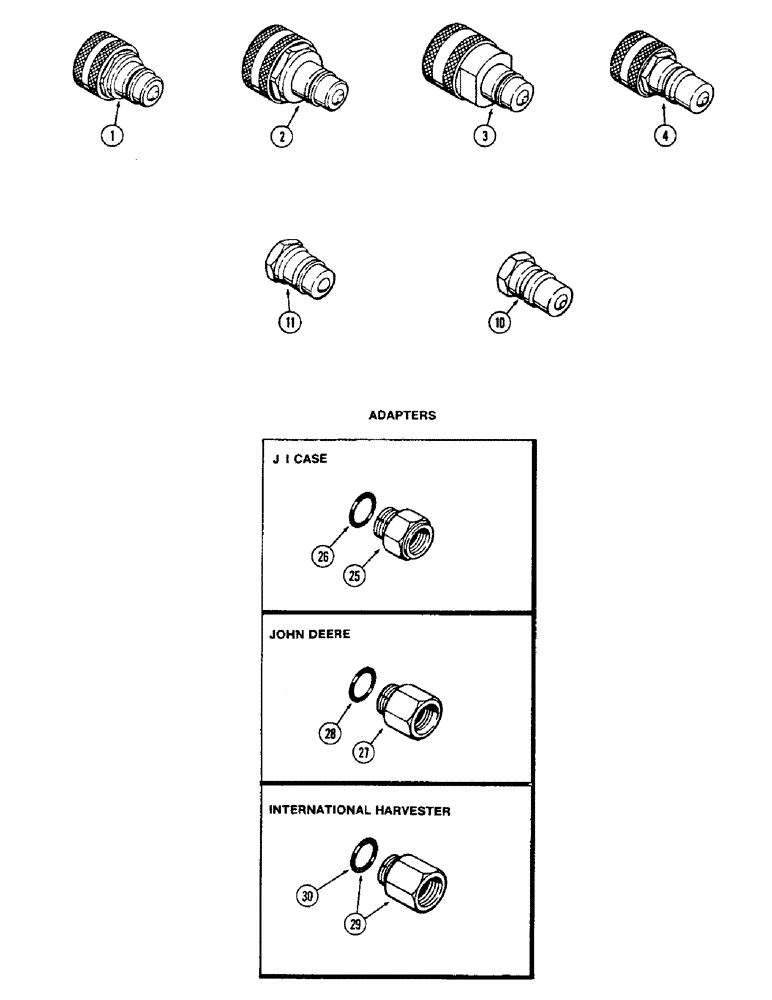

Запчасти Case IH 2470 (410) - QUICK DISCONNECT ADAPTERS (09) - CHASSIS/ATTACHMENTS

1

A160879

COUPLING, BREAK AWAY

ADAPTER - hydraulic coupling, male half of John Deere coupler to female half of Case coupler, A147888

1шт.

2

A160880

COUPLING, BREAK AWAY

ADAPTER - hydraulic coupling, male half of International Harvester coupler to female half of Case coupler, A147888

1шт.

3

A160885

QUICK MALE COUPLING

ADAPTER - hydraulic coupling, male half of Case coupler A28451 to female half of Case coupler, A147888

1шт.

4

A160888

COUPLING

ADAPTER - hydraulic coupling, Case male tip, A147889, and Case coupling, A28542

1шт.

10

A160884

COUPLING, BREAK AWAY

COUPLING - male tip (1/2"-14 NPTF with valve end), quick disconnect

1шт.

11

A160937

COUPLING, BREAK AWAY

COUPLING - male tip (1/2"-14 NPTF with ball end), quick disconnect

1шт.

25

A135687

ADAPTER

ADAPER ASSEMBLY - hydraulic coupling (7/8"-14 male to 7/8"-18 female) (To convert J I Case implement hoses), Includes: Ref. 26

1шт.

Adapter to be used with A66816 male half break-away coupling assembly.

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM), hydraulic hose adapters

1шт.

27

A135688

ADAPTER

ASSEMBLY - hydraulic coupling (7/8"-14 male to 3/4"-16 female) (To convert John Deere implement hoses), Includes: Ref. 28

1шт.

Adapter to be used with A66816 male half break-away coupling assembly.

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM), hydraulic hose adapters

1шт.

29

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSEMBLY - hydraulic coupling (7/8"-14 male to 1/2" female) (To convert International Harvester implement hoses), Includes: Ref. 30

1шт.

Adapter to be used with A66816 male half break-away coupling assembly.

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM), hydraulic hose adapters

1шт.
