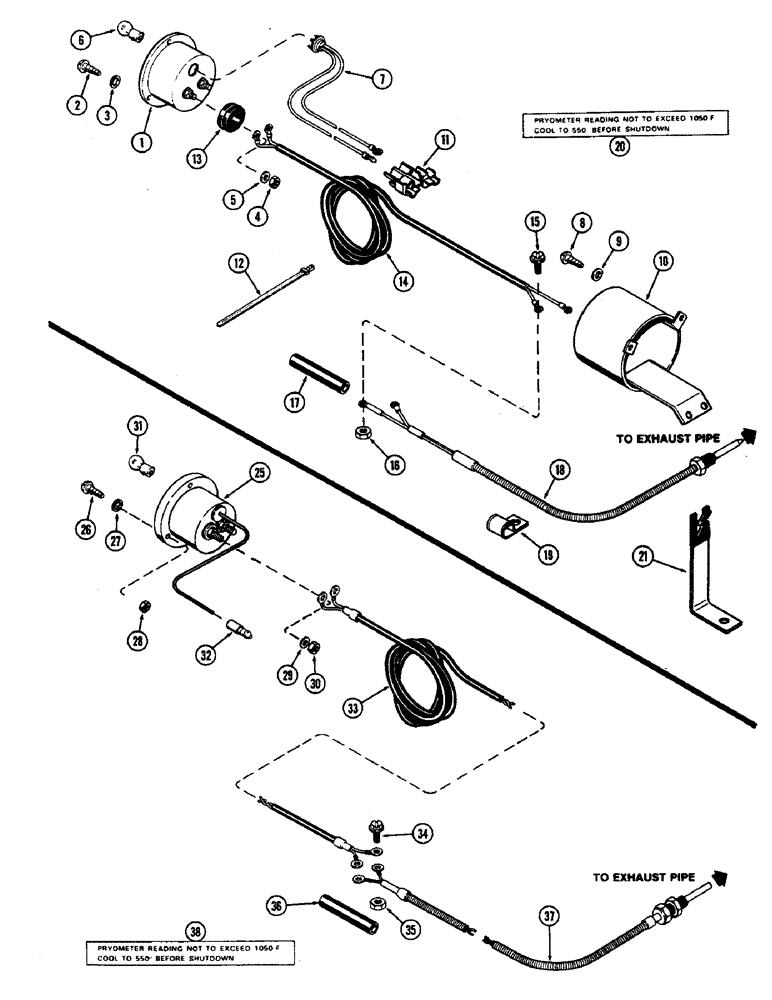

Запчасти Case IH 2470 (022) - ENGINE EXHAUST PYROMETER, P.I.N. 8767844 AND AFTER (02) - ENGINE

A139032

KIT

- pyrometer engine exhaust, Includes: Ref. 1 - 20

1шт.

1

A139021

ELECTRICAL GAUGE

PYROMETER - engine exhaust

1шт.

2

187-1104

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - #6-32 x 3/4" self tapping

3шт.

3

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

4

129-37

NUT,#10-32

2шт.

5

195-12

WASHER,#10

- 7/32 x 7/16 x 1/32" (5.56 x 11.11 x 0.79 MM)

2шт.

6

B50213

BULB

- #53

1шт.

7

A139030

SOCKET/RECEPTACLE

SOCKET - lamp

1шт.

8

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - #8-32 x 1/2" self tapping

4шт.

9

195-510

WASHER,#8

- 3/16 x 7/16 x 1/16" (4.76 x 11.11 x 1.32 MM)

4шт.

10

A139453

TUBE

- pyrometer mounting

1шт.

11

A62556

CONNECTOR, ELEC

CONNECTOR - pyrometer light

1шт.

12

A160890

STRAP

- wire harness (Replaces L11541)

1шт.

13

A27338

GROMMET

- pyrometer wire harness

1шт.

14

A139025

HARNESS

- wire, Serial Range: meter-thermocoupler

1шт.

15

175-93

SCREW,Sl Truss Hd, #10 - 24 x 1/4"

- #10-24 x 1/4" truss head

2шт.

16

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

17

A139029

BOOT

- connection

1шт.

18

A139024

PROBE

THERMOCOUPLE - pyrometer

1шт.

19

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - pyrometer lead wire

2шт.

20

321-1778

DECAL

- operating temperature

1шт.

21

A147023

BRACKET

- thermocouple cable (Replaces A145858)

1шт.

25

A76278

ELECTRICAL GAUGE

PYROMETER - engine exhaust (Order A139032), Serial Range: -8767844

1шт.

26

173-249

SCREW

- #6-32 x 3/4" round head, Serial Range: -8767844

3шт.

27

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6, Serial Range: -8767844

3шт.

28

129-15

NUT,#6-32

, Serial Range: -8767844

3шт.

29

195-15

WASHER,#12

- 1/4 x 1/2 x 3/64" (6.35 x 12.7 x 1.19 MM), Serial Range: -8767844

2шт.

30

129-502

NUT,1/4"-28, Brass

, Serial Range: -8767844

2шт.

31

T29381

BULB

- lamp, #1816, Serial Range: -8767844

1шт.

32

L10051

TERMINAL CONNECTOR,Male

TERMINAL - light wire, Serial Range: -8767844

1шт.

33

T39218

HARNESS

- wire (Order A139032), Serial Range: -8767844

1шт.

34

175-57

SCREW,Sl Truss Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" truss head, Serial Range: -8767844

2шт.

35

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA, Serial Range: -8767844

2шт.

36

T39219

BOOT

- thermocouple connecto, Serial Range: -8767844

1шт.

37

T39217

ELECTRICAL WIRE

THERMOCOUPLE - pyrometer (Order A139032), Serial Range: -8767844

1шт.

38

321-1778

DECAL

- operating temperature, Serial Range: -8767844

1шт.
