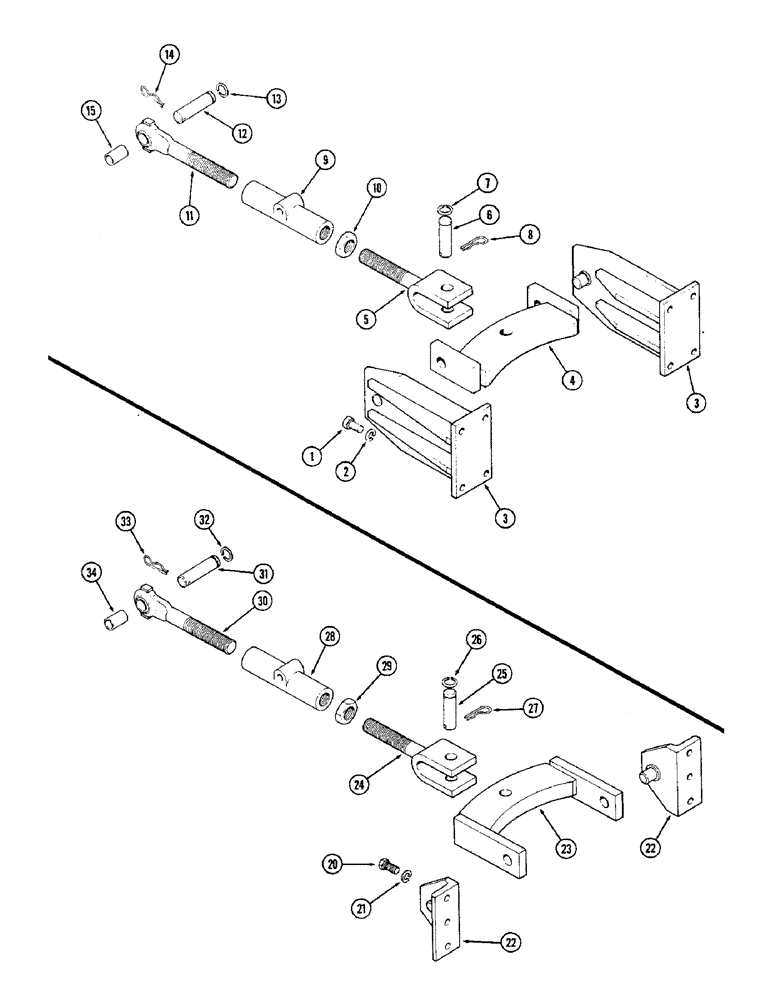

Запчасти Case IH 2470 (400) - THREE POINT HITCH, THIRD POINT, P.I.N. 8826961 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

3

A143052

BRACKET

ANGLE - mounting, third link pivot

2шт.

4

A141535

ANGLE

MOUNTING - third link pivot

1шт.

5

A75410

CLEVIS

- third link (RH thread)

1шт.

6

A76283

PIN

- clevis, third link

1шт.

7

17406

RING

- snap

1шт.

8

A56393

PIN

- cotter

1шт.

9

A160905

TURNBUCKLE

- third link (Replaces A75964)

1шт.

10

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

NUT - 1-1/2" NF hex.

1шт.

11

A141051

ROD

- third link

1шт.

12

A76285

PIN

- third link

1шт.

13

17406

RING

- snap

1шт.

14

A56393

PIN

- cotter

1шт.

15

L10462

BUSHING

- category #2, hitch pin

1шт.

20

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

, Serial Range: -8826261

6шт.

21

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4", Serial Range: -8826261

6шт.

22

A135370

BRACKET

ANGLE - mounting, third link pivot, Serial Range: -8826261

2шт.

23

A75403

MOUNTING PARTS

MOUNTING - third link pivot, Serial Range: -8826261

1шт.

24

A75410

CLEVIS

- third link (RH thread), Serial Range: -8826261

1шт.

25

A76283

PIN

- clevis, third link, Serial Range: -8826261

1шт.

26

17406

RING

- snap, Serial Range: -8826261

1шт.

27

A56393

PIN

- cotter, Serial Range: -8826261

1шт.

28

A160905

TURNBUCKLE

TURNBCKLE - third link (Replaces A75964), Serial Range: -8826261

1шт.

29

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

NUT - 1-1/2" NF hex., Serial Range: -8826261

1шт.

30

A141051

ROD

- third link (Replaces A76321), Serial Range: -8826261

1шт.

31

A76285

PIN

- third link, Serial Range: -8826261

1шт.

32

17406

RING

- snap, Serial Range: -8826261

1шт.

33

A56393

PIN

- cotter, Serial Range: -8826261

1шт.

34

L10462

BUSHING

- category #2, hitch pin, Serial Range: -8826261

1шт.
