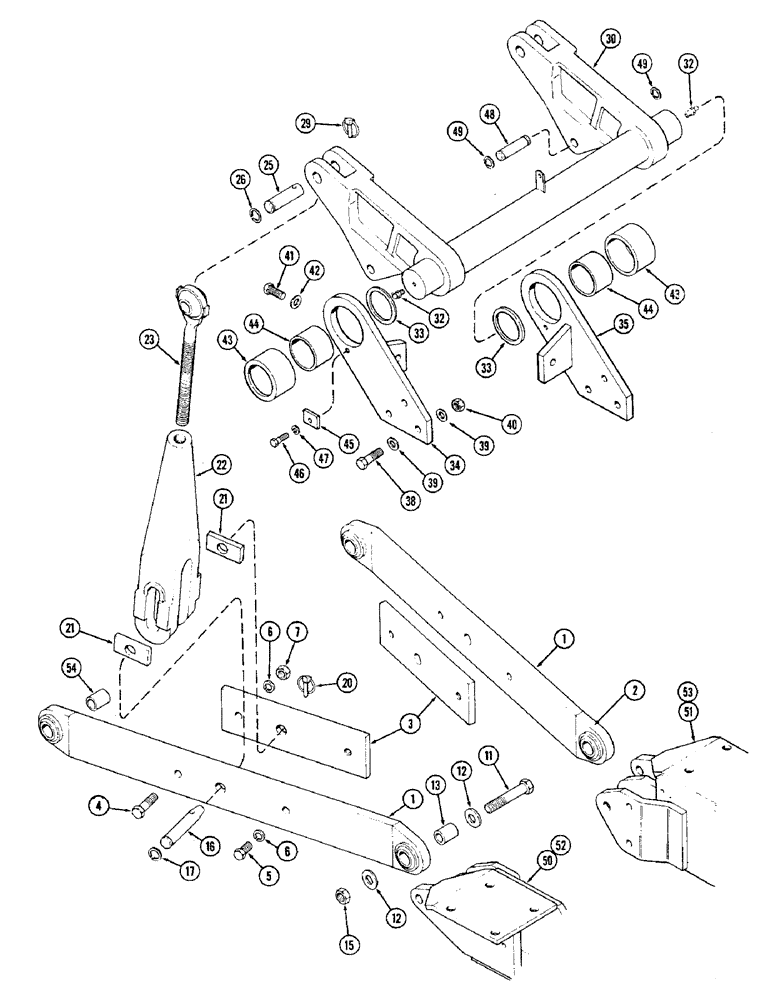

Запчасти Case IH 2470 (398) - THREE POINT HITCH, DRAFT ARM, LIFT LINK AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1

A75392

ARM

- draft, Includes: Ref. 2

2шт.

2

A56411

ARM, LIFT

END ASSEMBLY - draft arm

1шт.

3

A75473

STRAP

STIFFENER - draft arm

2шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex., grade 5

2шт.

5

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

129-108

NUT,3/4"-10, G5

2шт.

11

28-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 8

- 1 x 5-1/2" NF hex., grade 8

2шт.

12

A139817

WASHER

- pivot, 1-1/32" ID x 2-1/8" OD x 3/16" (26.19 x 53.97 x 4.76 MM)

4шт.

13

T38561

BUSHING

- draft arm

2шт.

15

131-188

LOCK NUT,1"-14, GB

NUT - lock, 1" NF hex.

2шт.

16

A76286

PIN,31.6mm OD x 193.04mm L

- clevis, lift arm, lower

2шт.

17

17406

RING

- snap

2шт.

20

A64204

PIN

- klik

2шт.

21

A63515

PLATE

- lower pin stop

4шт.

22

A75969

LINK

- clevis

2шт.

23

A141049

ROD

- lift link (Replaces A76320)

2шт.

25

A76284

PIN

- lift arm, upper

2шт.

26

17406

RING

RIN - snap

2шт.

29

A30338

PIN

- klik

2шт.

30

A76771

ROCKER

ROCKSHAFT - hitch

1шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 45 degree

2шт.

33

A32804

WASHER

- 4-1/4 x 3-9/32" x 11 gauge (107.95 x 83.34 x 3.77 MM)

1шт.

34

A75396

SUPPORT

- bearing RH

1шт.

35

A75397

SUPPORT

- bearing, LH

1шт.

38

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

- 3/4 x 3" NF hex, grade 8

6шт.

39

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4 x 1-3/8 x 25/32" (19.05 x 34.92 x 9.92 MM)

12шт.

40

131-186

LOCK NUT,3/4"-16, GB

NUT - 3/4" NF hex., Essna

6шт.

41

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- 3/4 x 1-3/4" NC hex., grade 8

2шт.

42

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4 x 1-3/8 x 25/32" (19.05 x 34.92 x 9.92 MM)

2шт.

43

A75399

HOUSING

ASSEMBLY - bearing

2шт.

44

A75401

BUSHING

- 3-point hitch

1шт.

45

A75402

KEY

- retaining

2шт.

46

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

A76282

PIN

- cylinder, upper (Order A162396 and A30338)

2шт.

49

A12667

RING

- retaining

4шт.

50

A75424

BRACE

- drawbar, RH (With 3-point hitch)

1шт.

51

A75425

BRACE

- drawbar, LH (With 3-point hitch)

1шт.

52

A75470

BRACE

- drawbar, RH (Without 3-point hitch)

1шт.

53

A75471

BRACKET

BRACE - drawbar, LH (Without 3-point hitch)

1шт.

54

L10463

BUSHING

- category #2 lower hitch pin

2шт.
