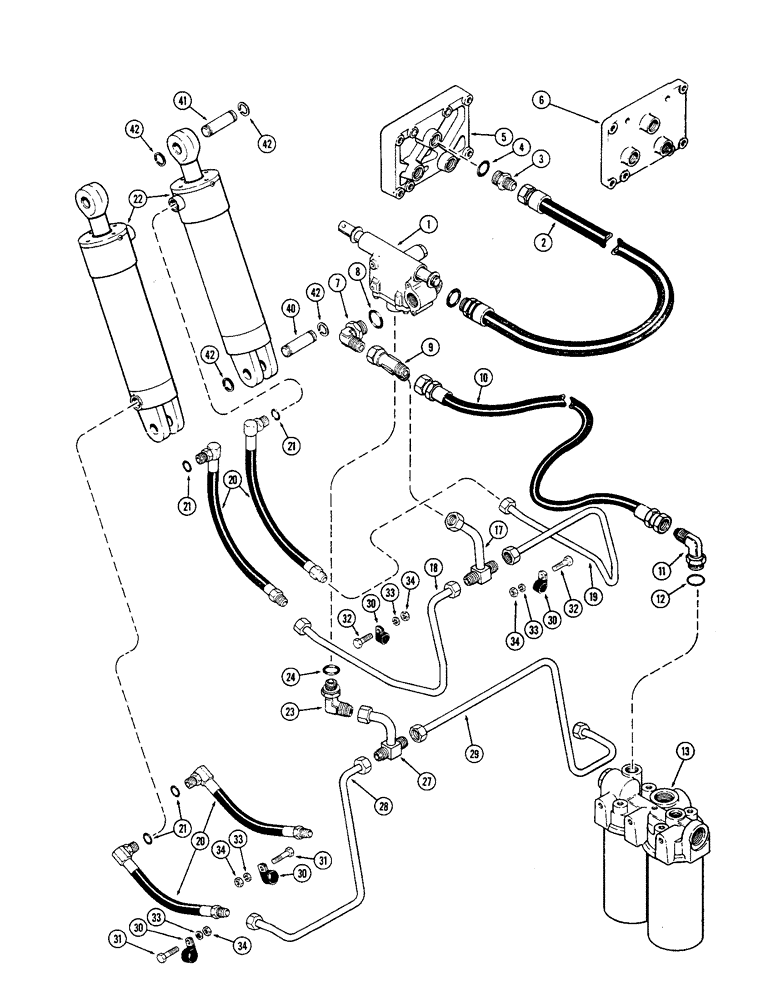

Запчасти Case IH 2470 (394) - THREE POINT HITCH, HYDRAULIC CIRCUITRY, TRANSMISSION SERIAL NO. 10025257 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

L10043

VALVE

ASSEMBLY - depth control (See figure 414)

1шт.

2

A139955

HOSE,0.75" ID x 41.00", SAE 100R2

0.75" ID x 41.00", SAE J516 - Remote valve to depth control valve

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

5

A143889

MANIFOLD

- remote valve mounting (Transmission serial no. 10053454 and after)

1шт.

6

A76908

MANIFOLD

- remote valve mounting (Prior to transmission serial no. 10053454) (Order 1-A143889, 1-A145346, 1-A145347, 1-A145407, 2-113-412 and 2-113-441)

1шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree adjustable, Includes: Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

9

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

10

D31796

HOSE

- filter to depth control valve, 3/4" ID x 29" (19.05 x 73.66 MM)

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 12 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

13

REF

INSTRUCTION

HOUSING - hydraulic filter (See figure 318)

1шт.

17

A76975

TUBE

- return line

1шт.

18

A76976

TUBE

- return, RH cylinder

1шт.

19

A76977

TUBE

- return, LH cylinder

1шт.

20

A75438

HOSE

- cylinder

4шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

4шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift arm (See figure 396)

2шт.

23

218-5109

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- 90 degree adjustable, Includes: Ref. 24

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 1/8" (26.59 x 32.54 x 3.17 MM)

1шт.

27

A76978

TUBE

- pressure line

1шт.

28

A76979

TUBE

- pressure, RH cylinder

1шт.

29

A76980

TUBE

TUB - pressure, LH cylinder

1шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- pressure hose

4шт.

31

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

A76281

PIN

- lower, lift cylinder

2шт.

41

A76282

PIN

- upper, lift cylinder (Order A162396 and A30338)

2шт.

42

A12667

RING

- retaining

8шт.
