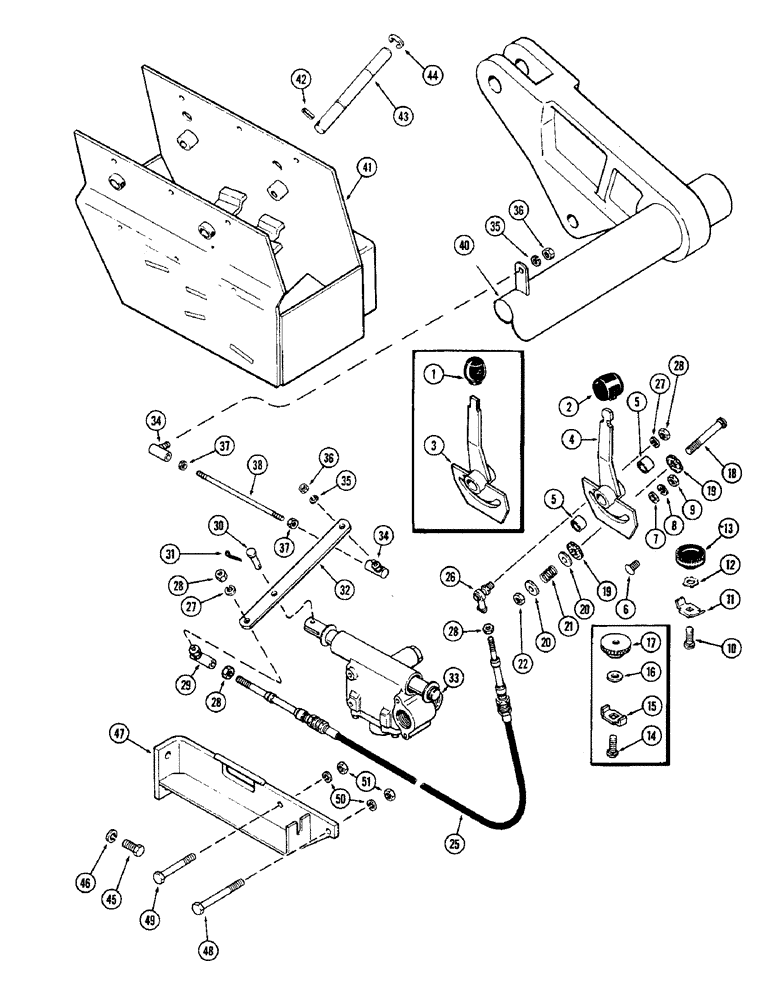

Запчасти Case IH 2470 (390) - THREE POINT HITCH, DEPTH CONTROLS (09) - CHASSIS/ATTACHMENTS

1

A65699

KNOB

- lever, plastic (Order A137806)

1шт.

2

A137806

KNOB

- lever, rubber

1шт.

3

A77010

LEVER

ASSEMBLY - depth control, with threaded top (Order ref 2 and 4), Includes: Ref. 5

1шт.

4

A137854

LEVER

ASSEMBLY - depth control (Replaces A77010), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

7

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

11

A143309

CLIP

CLAMP - lever stop, Start Serial: 8825242

2шт.

12

193-110

LOCK WASHER,Ext Tooth, 3/8"

WASHER - Shakeproor, 3/8" external

2шт.

13

A143181

NUT

- knurled, plastic, Start Serial: 8825242

2шт.

14

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

A75453

CLAMP

- lever stop (Order A143309), Serial Range: -8825242

2шт.

16

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.

17

G15951

NUT

- knurled, steel (Order A143181), Serial Range: -8825242

2шт.

18

111-327

CARRIAGE BOLT,Short NK, 3/8"-16 x 3", G2

BOLT - 3/8 x 3" NC round head square neck, grade 2

1шт.

19

A61069

DISC

- friction

2шт.

20

195-104

WASHER,3/8"

- flat

2шт.

21

A75454

SPRING

- friction disc

1шт.

22

131-94

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8"-16

1шт.

25

A145336

CABLE

- depth control (Replaces A76981)

1шт.

26

D52241

BALL JOINT

-, Serial Range: cable-lever

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

425-154

JAM NUT,Jam, 1/4"-28, G5

4шт.

29

A10329

BALL JOINT,1/4" - 28 x 1"

- 1/4"-28 cable to valve lever

1шт.

30

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

32

A77008

LEVER

- control valve

1шт.

33

L10043

VALVE

ASSEMBLY - depth control (See figure 414)

1шт.

34

A60604

BALL JOINT

- 5/16"-24 NF

2шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

36

129-122

NUT,5/16"-24, G5

2шт.

37

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

38

A77009

ROD

- valve control

1шт.

40

A76771

ROCKER

ROCKSHAFT - hitch

1шт.

41

A76749

CONSOLE - operator's

1шт.

42

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

43

A75736

SHAFT

- console lever

1шт.

44

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

45

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Support to rear plate Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

47

A77006

SUPPORT - depth valve

1шт.

48

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Valve to support Hex, 5/16"-18 x 4", G5

1шт.

49

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16 x 3-1/4" NC hex., valve to support, grade 5

2шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

51

9635082

NUT,5/16" - 18, Gr 5

3шт.
