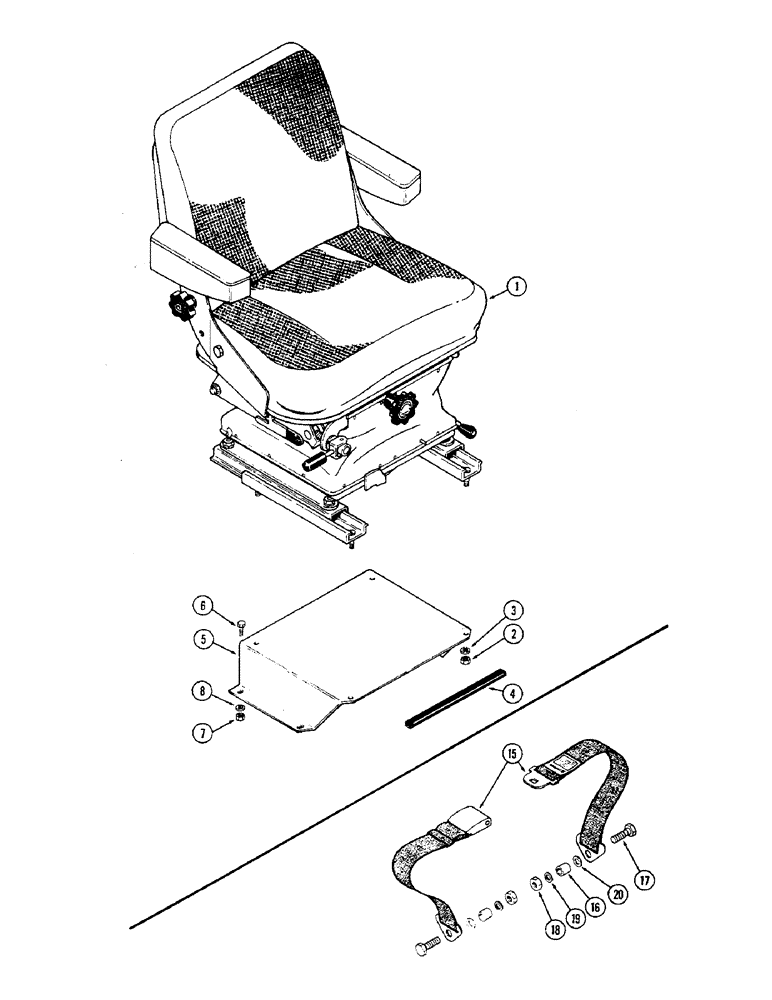

Запчасти Case IH 2470 (229) - SWIVEL SEAT MOUNTING, P.I.N. 8792901 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A139917

SEAT

ASSEMBLY - swivel (See page 452 and 454)

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

A64864

GUARD

TRIM - edge, 61" long (1549.4 MM), Serial Range: (Cut-length)

1шт.

5

A139934

BRACKET - seat support

1шт.

6

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

A160404

SAFETY BELT

BELT - safety (Replaces A66391), seat

1шт.

16

A60907

BUSHING

SPACER - bolt, safety belt, seat

2шт.

17

A61946

STEP BOLT

BOLT - shoulder, seat belt anchor, safety

2шт.

18

425-117

NUT,7/16"-20, G5

- 7/16" NF hex., seat safety belt

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

20

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16" (11.91 x 23.42 x 1.59 mm), seat safety belt

2шт.
