(388) - HYDRAULIC COUPLINGS, P.I.N. 8827618 AND AFTER

Запчасти Case IH 2470 (388) - HYDRAULIC COUPLINGS, P.I.N. 8827618 AND AFTER (08) - HYDRAULICS

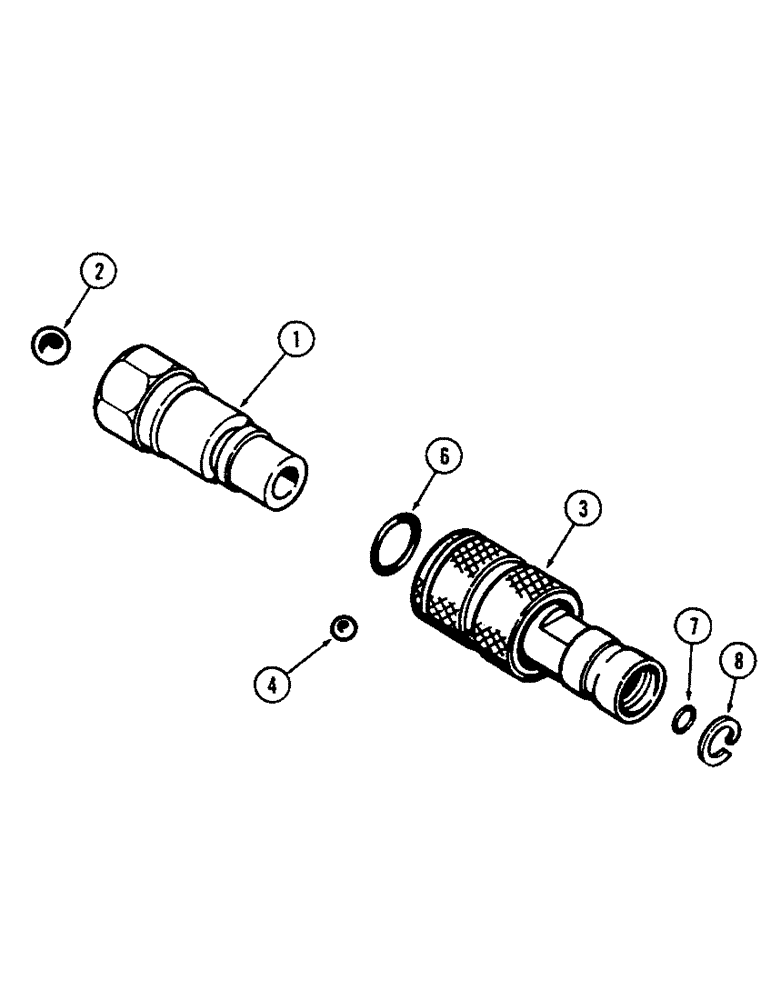

Схема запчастей Case IH 2470 - (388) - HYDRAULIC COUPLINGS, P.I.N. 8827618 AND AFTER (08) - HYDRAULICS
3
1
4
7
2
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- coupling

1шт.

3

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female, Includes: Ref. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- coupling

10шт.

A47220

GASKET KIT

KIT - repair, coupling, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock

1шт.
