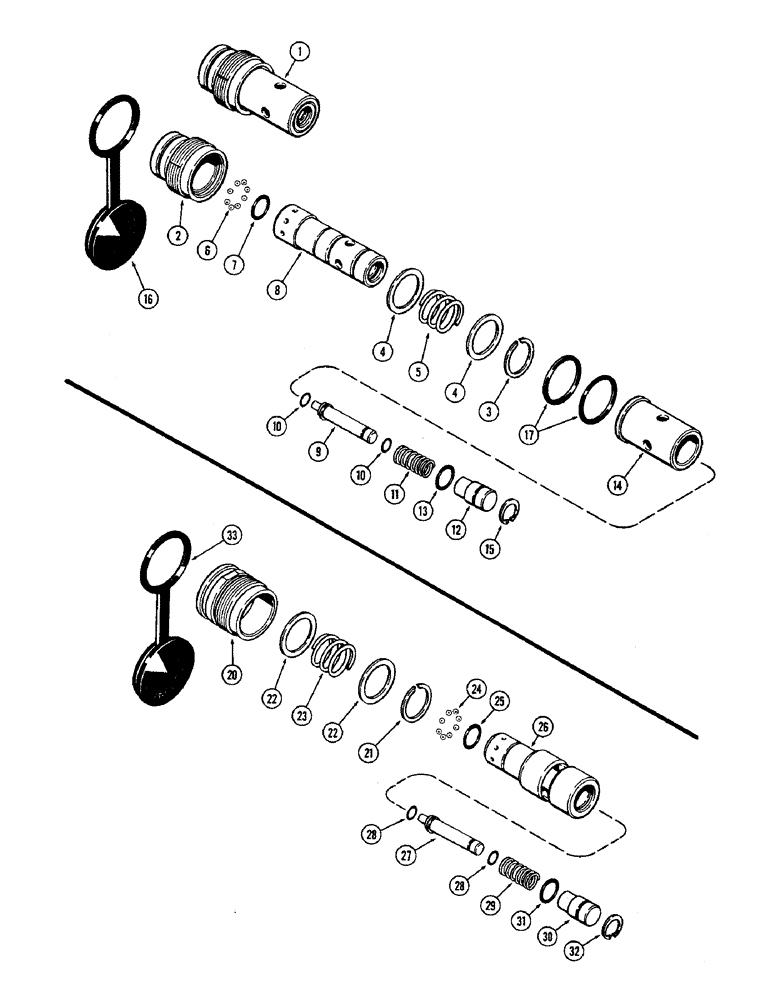

Запчасти Case IH 2470 (386) - REMOTE HYDRAULIC VALVE HOSE COUPLING, P.I.N. 8763920 THROUGH 8827618 (08) - HYDRAULICS

1

A149136

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away, hydraulic hose (Replaces A140181), Includes: Ref. 2 - 17

4шт.

Ref. 1...the male coupler that plugs into this female coupler is A147889.

1шт.

2

A135280

SLEEVE

- break-away coupling

1шт.

3

A140169

SNAP RING,#106, 1.000", Ext

- external (1" ID)

1шт.

4

A140163

WASHER

- spring, 1-3/32 x 1-5/16" x 3/64" (27.78 x 33.34 x 1.19 MM)

2шт.

5

A141287

SPRING

- body centering, 1-11/16" free length (42.83 MM) (Replaces A135211)

1шт.

6

211-5

BALL,3/16" Dia

- meter (4.76 MM) 3/16" Dia

8шт.

7

A140067

O-RING,0.796" ID x 1.074" OD x 0.139"

- 13/16 x 1-1/16 x 1/8" (20.63 x 26.98 x 3.17 MM)

1шт.

8

A140167

HOUSING

BODY - break-away coupling

1шт.

9

A140164

PISTON

- break-away coupling

1шт.

10

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 x 7/16 x 1/16" (7.93 x 11.11 x 1.58 MM)

2шт.

11

A11324

SPRING

- piston, 1-3/16" free length (30.16 MM)

1шт.

12

A140166

PLUG

- pressure release

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 x 3/4 x 1/16" (15.87 x 19.05 x 1.58 MM)

1шт.

14

A149082

COUPLING, BREAK AWAY

SLEEVE - adapter, couling (Replaces A140165)

1шт.

15

G46150

SNAP RING,0.75", Int, #75

RING - snap, 53/64" OD

1шт.

16

A47782

PLUG

- dust (Replaces A135213)

1шт.

17

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- 15/16 x 1-1/16 x 1/16" (23.81 x 26.98 x 1.58 MM) (Replaces A42302)

2шт.

20

A77078

SLEEVE

- breakaway coupling, Includes: Ref. 21 and 22

4шт.

21

A50078

SNAP RING,#118, 1.121", Ext

- external, remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

22

A77076

RING

WASHER - spring, 1-7/32 x 1-5/8 x 3/64" (30.96 x 41.27 x 1.19 MM), remote hydraulic valve hose coupling, Serial Range: -8763920

8шт.

23

A77077

SPRING

- body centering, 1-27/64" free length (36.11 MM), remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

24

211-5

BALL,3/16" Dia

- meter (4.76 MM), remote hydraulic valve hose coupling 3/16" Dia, Serial Range: -8763920

32шт.

25

A55911

O-RING,0.807" ID

- 13/16 x 15/16 x 1/16" (20.63 x 23.81 x 1.58 MM), remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

26

A77074

BODY

- breakaway coupling, remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

27

A76899

PLUNGER

PISTON - breakaway coupling, remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

28

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 x 7/16 x 1/16" (7.93 x 11.11 x 1.58 MM), remote hydraulic valve hose coupling, Serial Range: -8763920

8шт.

29

A11324

SPRING

- piston, 1-3/16" free length (30.16 MM), remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

30

A77075

PLUG

- pressure release, remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

31

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 MM), remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

32

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, , remote hydraulic valve hose coupling 0.812", Int, #81, Serial Range: -8763920

4шт.

33

A47782

PLUG

- dust (Replaces A77079), remote hydraulic valve hose coupling, Serial Range: -8763920

4шт.

A45340

SEAL

KIT - coupling (Includes ref no. 25, 28, 31 and ref 76 and 77 page 356) (Replaces A45234), remote hydraulic valve hose coupling, Serial Range: -8763920

1шт.
