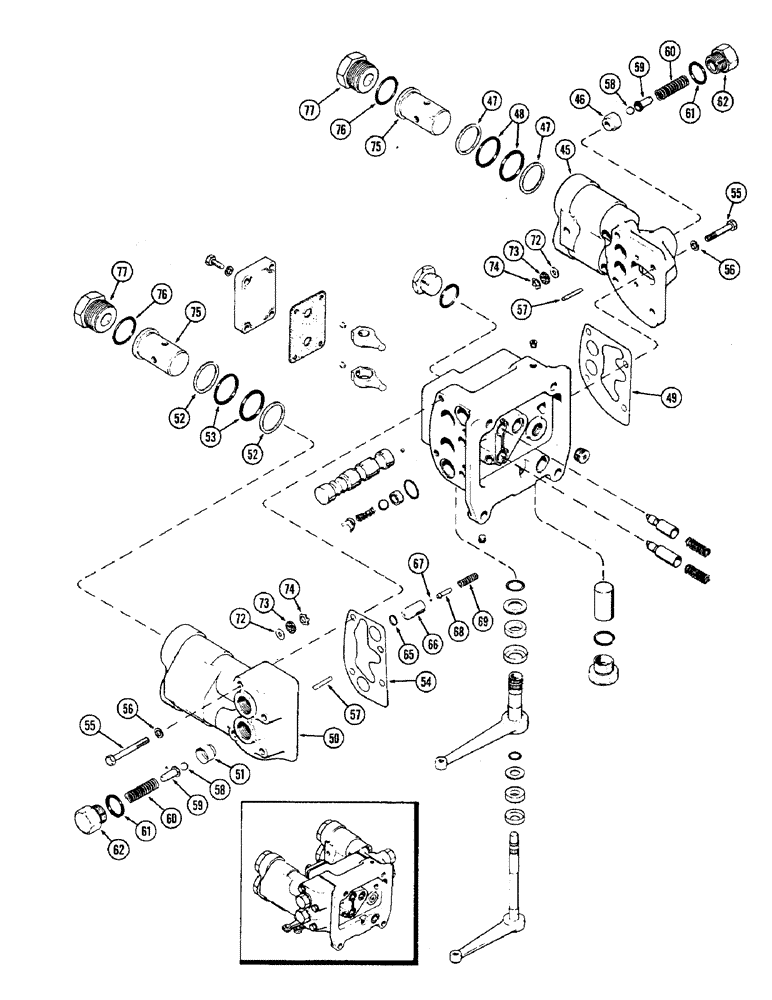

Запчасти Case IH 2470 (384) - A147433 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE, P.I.N. 8826987 AND AFTER, CONTD (08) - HYDRAULICS

A147433

VALVE ASSEMBLY - control (Continued from figure 382), Includes: Ref. 45 - 77

1шт.

45

A139951

HEAD

ASSEMBLY - remote valve, LH, Includes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

47

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

4шт.

48

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 57.19 MM)

4шт.

49

A143303

GASKET

- valve head, LH

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

50

A139949

HEAD

ASSEMBLY - remote valve, RH, Includes: Ref. 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

52

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

4шт.

53

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-13/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.5719 MM)

4шт.

54

A143304

GASKET

- valve head, RH

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

55

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" NC hex., grade 5

8шт.

56

92-6

LOCK WASHER,3/8"

8шт.

57

A57559

SPOOL

PIN - return ball check

4шт.

58

211-28

BALL,13/32" Dia

- return, meter (10.32 MM) 13/32" Dia

4шт.

59

A76895

GUIDE

- return ball check spring

4шт.

60

A76896

SPRING

- return blal, 1/2" OD x 2" free length (12.7 x 50.8 MM)

4шт.

61

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

4шт.

Part of Valve Seal Kit P/N A43086.

1шт.

62

A76894

FITTING

- valve head

4шт.

65

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve seat

2шт.

Part of Valve Seal Kit P/N A43086.

1шт.

66

A137335

SEAT

- thermal valve, RH head

2шт.

67

211-3

BALL,1/8" Dia

- thermal valve, meter (3.17 MM) 1/8" Dia

2шт.

68

A137594

GUIDE

- thermal valve ball

2шт.

69

A57396

SPRING

- thermal valve, 11/32" OD x 1-1/8" free length (8.73 x 28.57 MM)

2шт.

72

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 MM)

4шт.

73

A76892

SEAL

- valve head quick coupler

4шт.

74

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

75

A147286

INSERT

- remote valve head

4шт.

76

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/8 x 1-5/8 x 1/8" (34.925 x 41.275 x 3.17 MM)

4шт.

77

A147561

ADAPTER

ADAPTOR - remote valve head

1шт.

A43086

SEAL

KIT, seal, Includes: Ref. 49, 54, 61 and 65

1шт.
