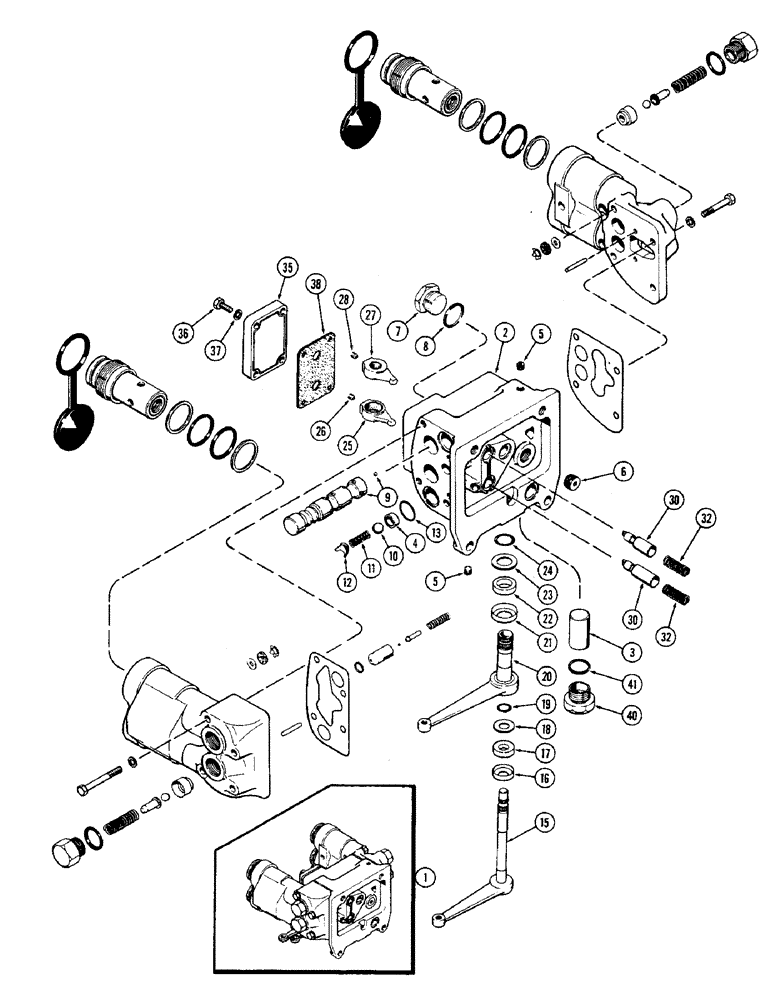

Запчасти Case IH 2470 (378) - A141844 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE & W/COUPLERS, P.I.N. 8786558 - 8826986 (08) - HYDRAULICS

1

A141844

VALVE

ASSEMBLY - control, Includes: Ref. 2 - 38

1шт.

2

A141380

HOUSING

BODY ASSEMBLY - remote valve, Includes: Ref. 3 - 8

1шт.

3

A63764

PLUG

- relief valve

1шт.

4

A139799

SEAT

- ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. socket head

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket head

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - 3/4" tube OD x 1-1/16"-12 thread, Includes: Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

9

A66469

SPOOL

ASSEMBLY - remote valve

2шт.

10

211-15

BALL,5/8" Dia

- meter (15.87 MM) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check, 1/2" OD x 1-1/8" free length

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 MM)

4шт.

Part of Valve Seal Kit P/N A43086.

1шт.

15

A57605

LEVER

- remote valve, lower

1шт.

16

A30875

RETAINER

- felt washer, 17/32" hole (13.49 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

17

A30853

WASHER

- felt, 1/2 x 15/16 x 1/14" (12.7 x 23.81 x 6.35 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

18

A27409

WASHER

- seal, 33/64 x 63/64 x 1/32" (13.10 x 25.0 x 0.79 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

- 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

20

A57604

LEVER

- remote valve, upper

1шт.

21

A30880

RETAINER

- felt washer, 49/64" hole (19.45 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

22

A30879

WASHER

- felt, 3/4 x 1-13/16 x 1/4" (19.05 x 46.04 x 6.35 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, 49/64 x 1-15/64 x 1/32" (19.45 x 31.35 x 0.79 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

25

A57546

ARM

ASSEMBLY - remote valve upper lever, Includes: Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" NC hex. socket headless cup point set

1шт.

27

A57547

ARM

ASSEMBLY - remote valve lower lever, Includes: Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" NC hex. socket headless cup point set

1шт.

30

A63765

PLUNGER

- remote valve spool

2шт.

32

A76886

SPRING

- spool detent, 15/32" OD x 1-15/32" free length (11.90 x 37.30 MM)

2шт.

35

A66435

CAP

- body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

A160690

GASKET

- body cap

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

40

A34392

PLUG

- pilot relief valve hole, Includes: Ref. 41

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 2.17 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

A43086

SEAL

KIT, repair, Includes: Ref. 8, 13, 16 - 19, 21 - 24, 38 and 41

1шт.
