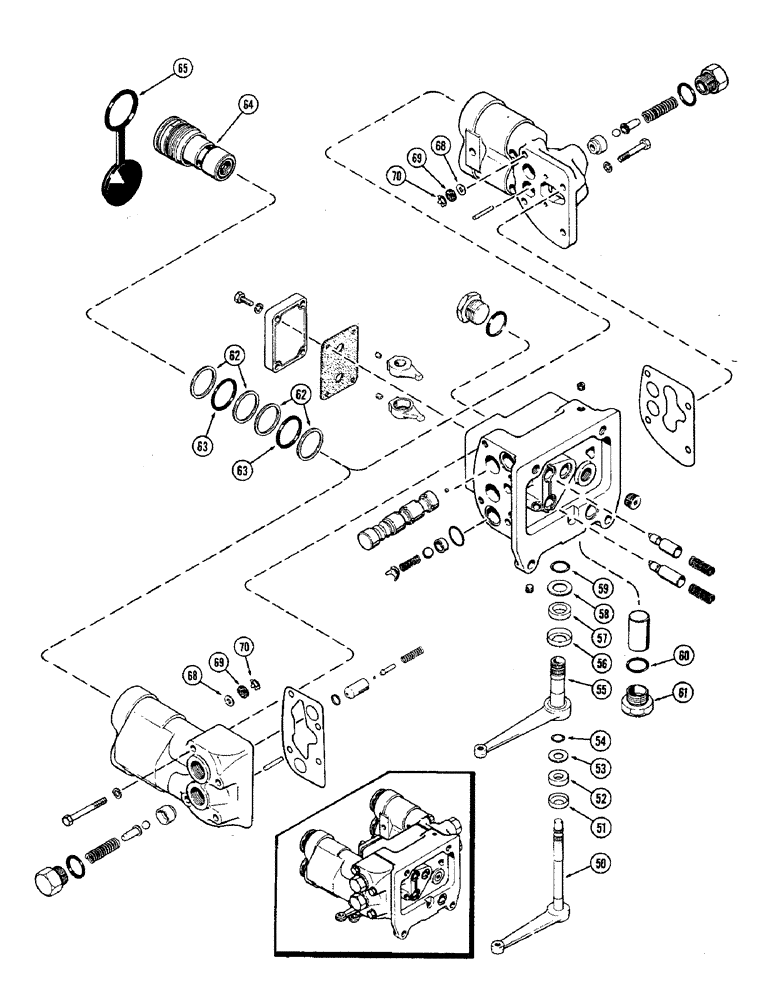

Запчасти Case IH 2470 (372) - A77073 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE, PRIOR TO P.I.N. 8763920, CONTD (08) - HYDRAULICS

A77073

VALVE ASSEMBLY - (Continued from figure 370), Includes: Ref. 50 - 70

1шт.

50

A57605

LEVER

- remote valve, outer

1шт.

51

A30875

RETAINER

- felt washer

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

52

A30853

WASHER

- felt, lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

53

A27409

WASHER

- seal, lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

54

A64836

O-RING,0.487" ID x 0.693" OD

- lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

55

A57604

LEVER

- remote valve, inner

1шт.

56

A30880

RETAINER

- felt washer

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

57

A30879

WASHER

- felt, shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

58

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

59

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

60

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

61

A34392

PLUG

- pilot relief valve hole

1шт.

62

A76898

RING

- back-up 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

16шт.

63

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

8шт.

64

REF

INSTRUCTION

COUPLING - break-away, hydraulic hose (See figure 386)

4шт.

65

A47782

PLUG

- dust (Replaces A77079)

4шт.

68

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 MM)

4шт.

69

A76892

SEAL

- valve head quick coupler

4шт.

70

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

A43086

SEAL

valve, seal, Includes: Ref. 51 - 54 and 56 - 60

1шт.
