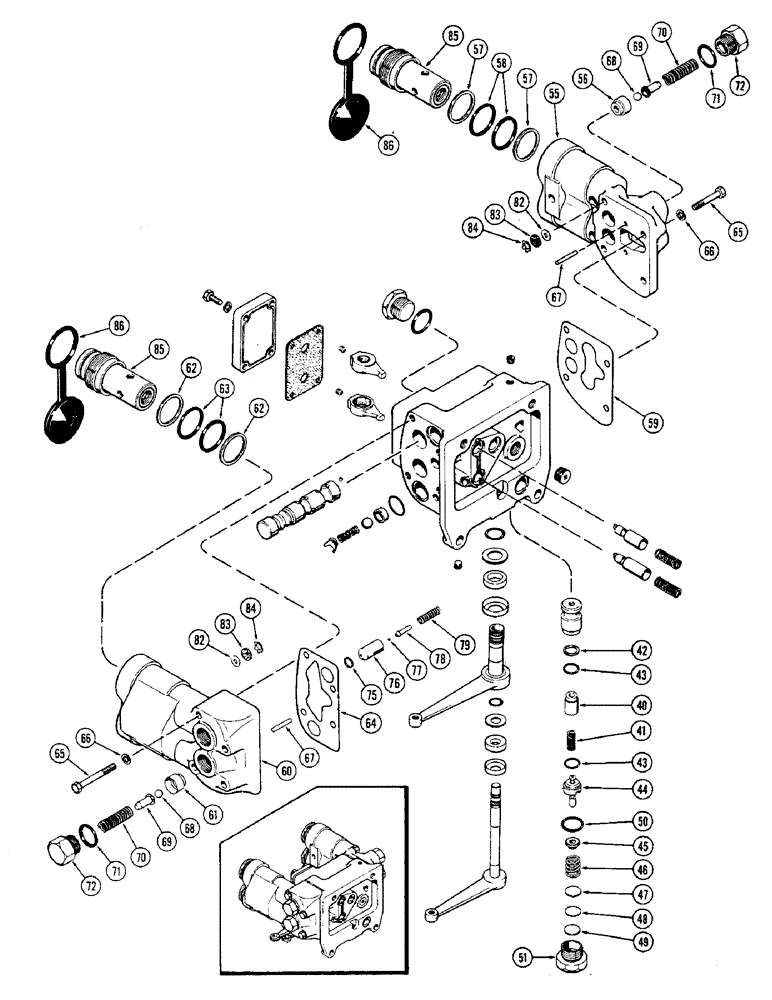

Запчасти Case IH 2470 (364) - REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE AND COUPLERS P.I.N. 8786558 THROUGH 8826986, CONTD (08) - HYDRAULICS

A149137

VALVE

ASSEMBLY - control (Continued from figure 362), Includes: Ref. 40 - 86

1шт.

40

A57553

PISTON

- pilot relief valve

1шт.

41

A34382

SPRING

- relief valve, 15/32" OD x 1" free length (11.90 x 25.4 MM)

1шт.

42

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- relief valve

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

Part of Pilot Relief Valve Kit P/N A42888.

1шт.

43

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 3/4 x 5/8 x 1/16" (19.05 x 15.87 x 1.58 MM)

2шт.

Part of Valve Seal Kit P/N A43086.

1шт.

Part of Pilot Relief Valve Kit P/N A42888.

1шт.

44

A57556

PISTON

ASSEMBLY - pilot

1шт.

45

A57558

RETAINER

- pilot relief spring

1шт.

46

A34492

SPRING

- pilot relief, 49/64" OD x 23/32" free length (19.44 x 18.25 MM)

1шт.

47

A34694

SHIM,.0201" Thk

Pilot relief spring (0.51 mm) .0201" Thk

1шт.

48

A34817

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Blue) .0149" Thk

1шт.

49

A34390

SHIM,.0329" Thk

Pilot relief spring (0.83 mm) .0329" Thk

1шт.

49

A34849

SHIM,.0105" Thk

Pilot relief spring (0.25 mm) .0105" Thk

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

Part of Pilot Relief Valve Kit P/N A42888.

1шт.

51

A34392

PLUG

- pilot relief valve

1шт.

55

A139951

HEAD

ASSEMBLY - remote valve, LH, Includes: Ref. 56 and 57

1шт.

56

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

57

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

4шт.

58

A13224

O-RING - 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

4шт.

59

A143303

GASKET

- valve head, LH

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

60

A139949

HEAD

ASSEMBLY - remote valve, RH, Includes: Ref. 61 - 63

1шт.

61

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

62

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

4шт.

63

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

4шт.

64

A143304

GASKET

- valve head, RH

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

65

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" NC hex., grade 5

8шт.

66

92-6

LOCK WASHER,3/8"

8шт.

67

A57559

SPOOL

PIN - return ball check

4шт.

68

211-28

BALL,13/32" Dia

- return, meter (10.32 MM) 13/32" Dia

4шт.

69

A76895

GUIDE

- return ball check spring

4шт.

70

A76896

SPRING

- check, return ball, 1/2" OD x 2" free length (12.7 x 50.8 MM)

4шт.

71

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

4шт.

Part of Valve Seal Kit P/N A43086.

1шт.

72

A76894

FITTING

- valve head

4шт.

75

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve seat

2шт.

Part of Valve Seal Kit P/N A43086.

1шт.

76

A137335

SEAT

- thermal valve, RH head

2шт.

77

211-3

BALL,1/8" Dia

- thermal valve, meter (3.17 MM) 1/8" Dia

2шт.

78

A137594

GUIDE

- thermal valve ball

2шт.

79

A57396

SPRING

- thermal valve, 11/32" OD x 1-1/8" OD x 1-1/8" free length (8.73 x 28.5 MM)

2шт.

82

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 MM)

4шт.

83

A76892

SEAL

- valve head quick coupler

4шт.

84

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

85

REF

INSTRUCTION

COUPLER ASSEMBLY - hose break-away (See figure 386)

4шт.

86

REF

INSTRUCTION

PLUG - dust (See figure 386)

4шт.

A43086

SEAL

KIT valve, Includes: Ref. 42, 43, 50, 59, 64, 71 and 75

1шт.

A42888

KIT

pilot relief valve, Includes: Ref. 42, 43 and 50

1шт.
