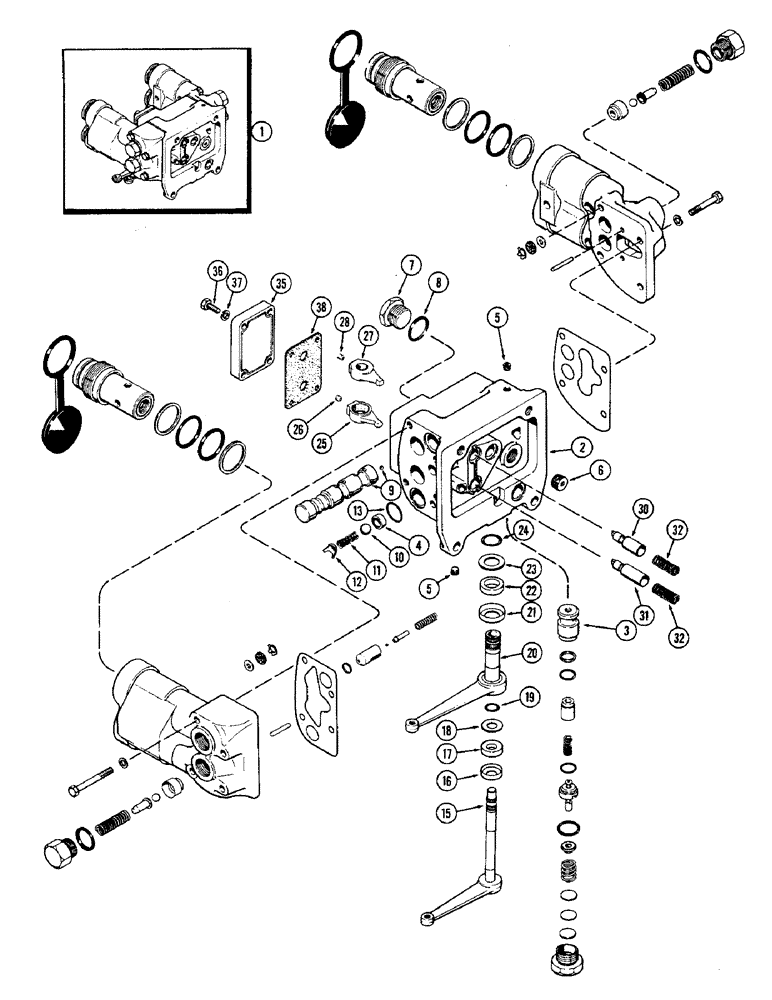

Запчасти Case IH 2470 (358) - A141379 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE & COUPLERS P.I.N. 8763920 THROUGH 8786557 (08) - HYDRAULICS

1

A141379

VALVE

ASSEMBLY - (Replaces A77072, A138883, A139216 and A139956), Includes: Ref. 2 - 38

1шт.

2

A141381

HOUSING

BODY ASSEMBLY - remote valve (Replaces A76884), Includes: Ref. 3 - 8

1шт.

3

A57536

SLEEVE

- pilot relief

1шт.

4

A139799

SEAT

- ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. socket

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - 3/4" tube OD x 1-1/16"-12 thread, Includes: Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

9

A66469

SPOOL

ASSEMBLY - remote valve

2шт.

10

211-15

BALL,5/8" Dia

- meter (15.87 MM) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.5 x 2.38 MM)

4шт.

Part of Valve Seal Kit P/N A43086.

1шт.

15

A57605

LEVER

- remote valve, lower

1шт.

16

A30875

RETAINER

- felt washer

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

17

A30853

WASHER

- felt, lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

18

A27409

WASHER

- seal, lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

- lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

20

A57604

LEVER

- remote valve, upper

1шт.

21

A30880

RETAINER

- felt washer

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

22

A30879

WASHER

- felt, shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

25

A57546

ARM

ASSEMBLY - remote valve upper lever, Includes: Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC hex. socket headless cup point

1шт.

27

A57547

ARM

ASSEMBLY - remote valve lower lever, Includes: Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC hex. socket headless cup point

1шт.

30

A57555

PLUNGER

- remote valve spool, upper (With holes)

1шт.

31

A57554

PLUNGER

- remote valve spool, lower

1шт.

32

A76886

SPRING

- spool detent

2шт.

35

A66435

CAP

- body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cap to body Hex, 1/4"-20 x 1", G5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

A160690

GASKET

- body cap

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

A43086

SEAL

KIT repair, Includes: Ref. 8, 13, 16 - 19, 21 - 24 and 38

1шт.
