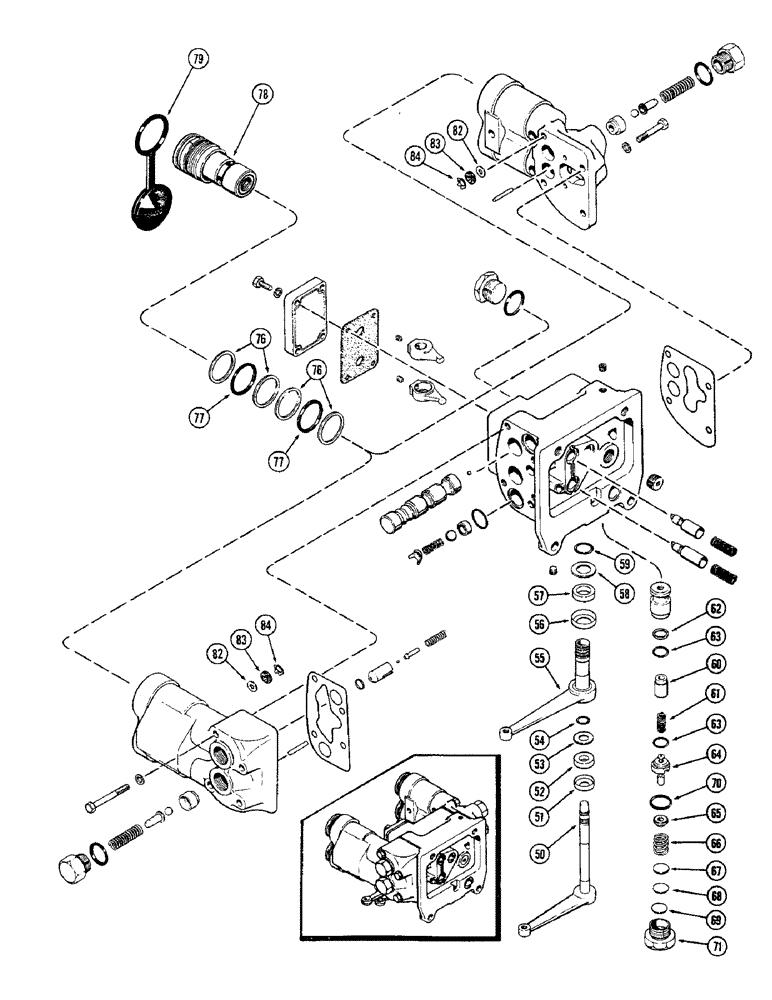

Запчасти Case IH 2470 (356) - A77072 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE AND COUPLERS PRIOR TO P.I.N. 8763920, CONTD (08) - HYDRAULICS

A77072

VALVE

ASSEMBLY - (Continued from figure 354), Includes: Ref. 50 - 84

1шт.

50

A57605

LEVER

- remote valve, outer

1шт.

51

A30875

RETAINER

- felt washer

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

52

A30853

WASHER

- felt, lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

53

A27409

WASHER

- seal, lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

54

A64836

O-RING,0.487" ID x 0.693" OD

- lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

55

A57604

LEVER

- remote valve, inner

1шт.

56

A30880

RETAINER

- felt washer

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

57

A30879

WASHER

- felt, shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

58

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

59

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- lever shaft

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

60

A57553

PISTON

- pilot relief valve

1шт.

61

A34382

SPRING

- pilot relief valve

1шт.

62

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

Part of Pilot Relief Valve Kit P/N A42888.

1шт.

63

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- pilot relief valve sleeve

2шт.

Part of Valve Seal Kit P/N A43086.

1шт.

Part of Pilot Relief Valve Kit P/N A42888.

1шт.

64

A57556

PISTON

ASSEMBLY - pilot

1шт.

65

A57558

RETAINER

- pilot relief spring

1шт.

66

A34492

SPRING

- pilot relief

1шт.

67

A34694

SHIM,.0201" Thk

Pilot relief spring (0.51 mm) .0201" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

68

A34817

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

69

A34390

SHIM,.0329" Thk

Pilot relief spring (0.83 mm) .0329" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

69

A34391

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Order A34817) .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

69

A34849

SHIM,.0105" Thk

Pilot relief spring (0.25 mm) .0105" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

70

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 3.41 x 3.17 MM)

1шт.

Part of Valve Seal Kit P/N A43086.

1шт.

Part of Pilot Relief Valve Kit P/N A42888.

1шт.

71

A34392

PLUG

- pilot relief valve

1шт.

76

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

16шт.

77

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

8шт.

78

REF

INSTRUCTION

COUPLING - hydraulic hose break-away (See figure 386)

4шт.

79

A47782

PLUG

- dust, break-away coupling (Replaces A77079)

4шт.

82

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 MM)

4шт.

83

A76892

SEAL

- valve head quick coupler

4шт.

84

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

A43086

SEAL

KIT valve Includes: Ref. 51 - 54, 56 - 59, 62, 63 and 70

1шт.

A42888

KIT

- pilot relief valve, Includes: Ref. 62, 63 and 70

1шт.
