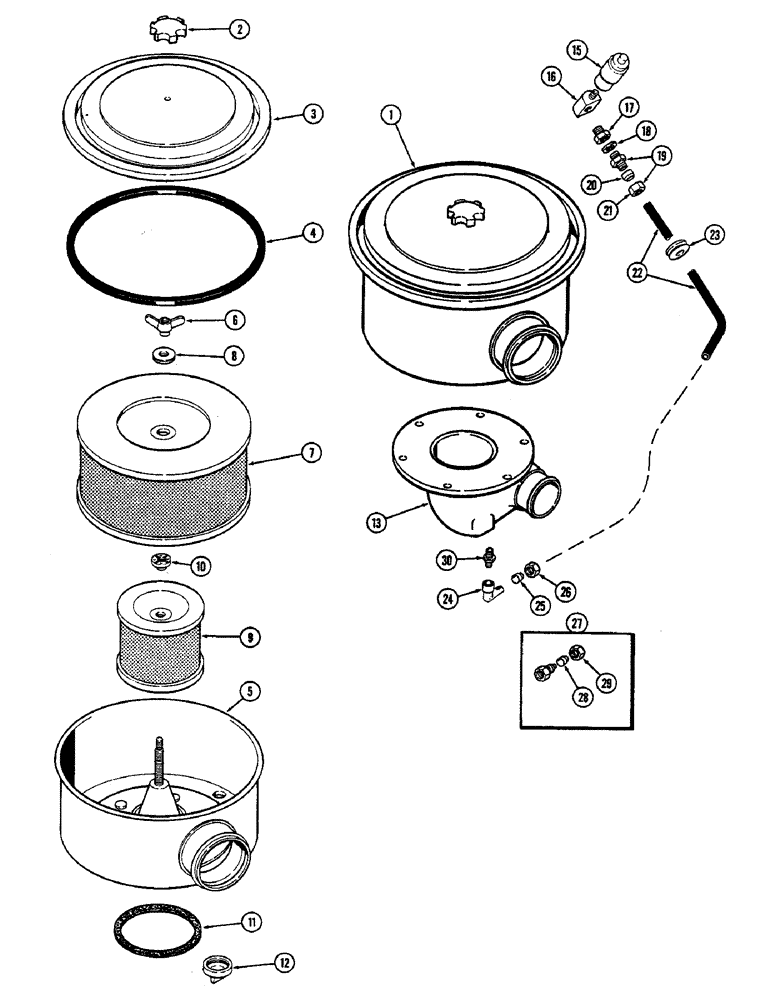

Запчасти Case IH 2470 (016) - AIR CLEANER ASSEMBLY, 504BDT DIESEL ENGINE (02) - ENGINE

1

A76854

AIR CLEANER

ASSEMBLY - engine, Includes: Ref. 2 - 12

1шт.

2

A42918

KNOB

- top cover

1шт.

3

A44190

COVER

- top

1шт.

4

A44191

GASKET

- top cover edge

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

6

F91761

WING NUT

ASSEMBLY - wing, primary element (Includes ref. 8)

1шт.

7

A44185

AIR FILTER

ELEMENT ASSEMBLY - primary, Includes: Ref. 8

1шт.

8

A44187

WASHER

- wingnut

1шт.

9

A44638

FILTER, ELEMENT

ELEMENT ASSEMBLY - secondary, inner, Includes: Ref. 10

1шт.

10

A44188

SEAL

NUT - seal, retaining

1шт.

11

A44801

GASKET

- mounting

1шт.

12

A44184

VALVE

- vacuator

1шт.

13

A150787

FITTING

ELBOW - mounting, air cleaner (Replaces A76856)

1шт.

15

A62574

INDICATOR

- air restriction

1шт.

16

L31481

FITTING

ELBOW - restrictor indicator, air

1шт.

17

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing, brass, Air restriction indicator 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

18

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM), air restriction indicator

1шт.

19

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

COUPLING ASSEMBLY - 1/4" tube, 1/8" PT, air restriction indicator, Includes: Ref. 20 and 21

1шт.

20

222-5185

SLEEVE,1/4" Tube

- for (19.05 MM), air restriction indicator 1/4" Tube

1шт.

21

222-5180

TUBE NUT,7/16"-24

for 1/4" tube (19.05 MM), air restriction indicator 7/16"-24

1шт.

22

A135026

HOSE

- air indicator, 38" long (965.2 MM) (Order A139447 and 222-5125), restriction

1шт.

22

A139447

HOSE

- air indicator, 31-1/2" long (800.1 MM), restriction

1шт.

23

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- indicator hose in firewall, air restriction

1шт.

24

222-5125

ELBOW,7/16"-24 x 1/8" NPTF Fem

ASSEMBLY - 1/4" tube x 1/8" PT, with 31-1/2" hose, air restriction indicator, Includes: Ref. 25 and 26

1шт.

25

222-5185

SLEEVE,1/4" Tube

- for (19.05 MM), air restriction indicator 1/4" Tube

1шт.

26

222-5180

TUBE NUT,7/16"-24

for 1/4" tube (19.05 MM), air restriction indicator 7/16"-24

1шт.

27

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

COUPLING ASSEMBLY - 1/4" tube, 1/8" PT (With 38" hose), air restriction indicator, Includes: Ref. 28 and 29

1шт.

28

222-5185

SLEEVE,1/4" Tube

- for (19.05 MM), air restriction indicator 1/4" Tube

1шт.

29

222-5180

TUBE NUT,7/16"-24

for 1/4" tube (19.05 MM), air restriction indicator 7/16"-24

1шт.

30

D36264

FITTING

- air restriction indicator

1шт.
