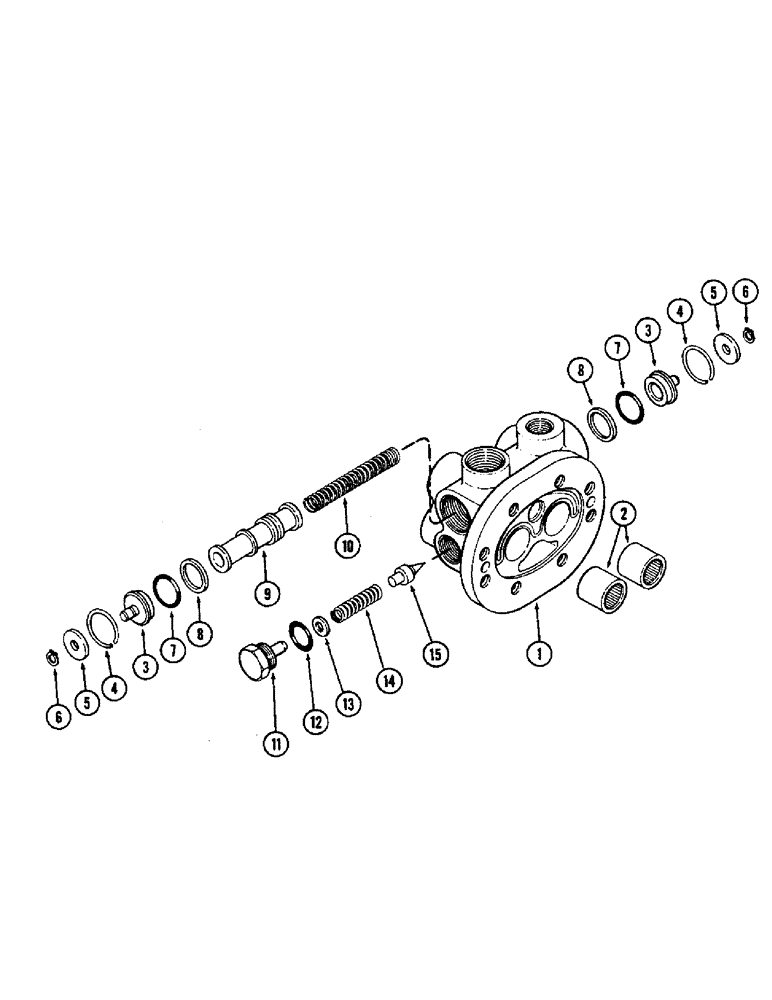

Запчасти Case IH 2470 (350) - HYDRAULIC PUMP REAR COVER, WITH PUSH TYPE FLOW DIVIDER PLUGS, FOR A139176 PUMP (08) - HYDRAULICS

A45295

REAR COVER

COVER ASSEMBLY - flow divider - relief valve (Order A45384), Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - with sleeve (Order A45384)

1шт.

2

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

3

A45422

PLUG

- flow divider piston

2шт.

4

A45301

SPECIAL RING

RING - retaining, plug

2шт.

5

A45421

WASHER

- retaining ring

1шт.

6

G10659

SNAP RING,#31, Ext

Ring, Snap, , washer #31, Ext

1шт.

7

A45298

O-RING

- plug seal

2шт.

8

L31332

BACK-UP RING

- back-up

2шт.

9

A44125

PISTON

- flow divider

1шт.

10

A45297

SPRING

- piston, 1/2" OD x 2-13/16" free length (12.7 x 71.43 MM)

1шт.

11

A45250

PLUG

ASSEMBLY - relief valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 5/8 x 3/4 x 3/32" (15.87 x 19.05 x 2.38 MM)

1шт.

13

A44882

SHIM,.010" Thk

Relief valve spring (0.25 mm) .010" Thk

1шт.

13

A44883

SHIM,.031" Thk

Relief valve spring (0.78 mm) .031" Thk

1шт.

13

A44884

SHIM,.062" Thk

Relief valve spring (1.57 mm) .062" Thk

1шт.

14

A45366

SPRING

- relief valve, 19/32" OD x 3-1/4" free length (15.0 x 57.15 MM) (Replaces A45251)

1шт.

15

A44119

SPOOL

POPPET - relief valve

1шт.
