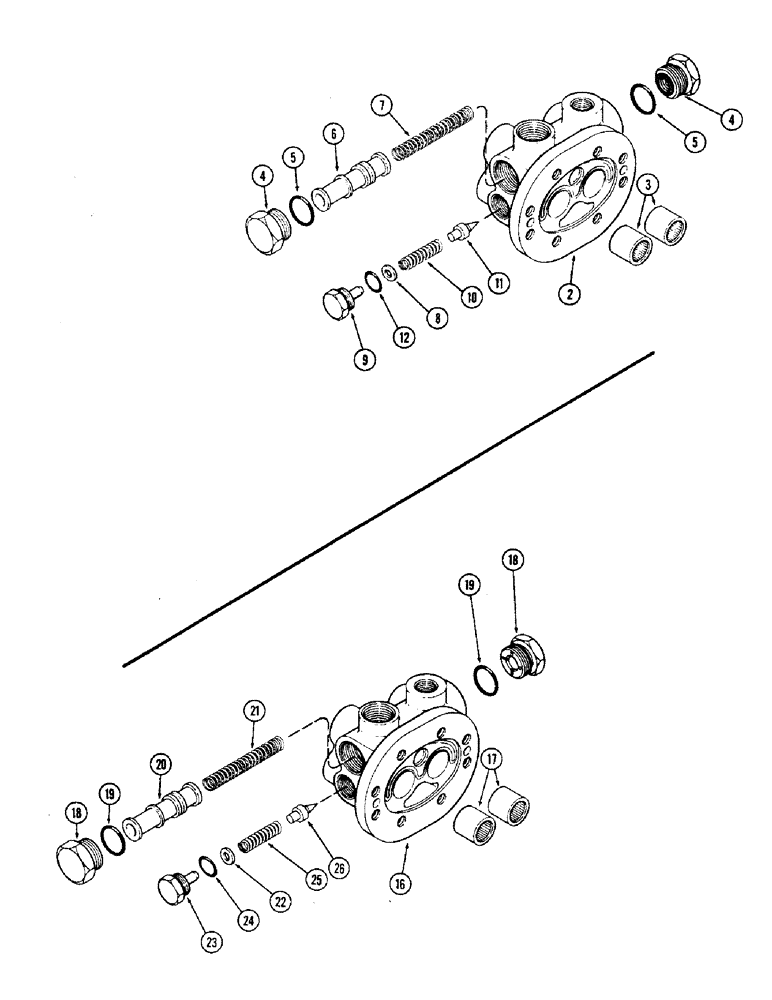

Запчасти Case IH 2470 (348) - HYDRAULIC PUMP REAR COVER, WITH SCREW TYPE FLOW DIVIDER PLUGS, FOR A141223 PUMP (08) - HYDRAULICS

A45384

COVER

ASSEMBLY - flow divider - relief valve, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - with sleeve (Order A45384)

1шт.

3

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

4

A45289

SEAT

PLUG - flow divider, with knurled face

2шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.77 MM)

2шт.

6

A44125

PISTON

- flow divider

1шт.

7

A45297

SPRING

- piston, 1/2" OD x 2-13/16" free length (12.7 x 71.4 MM)

1шт.

8

A44882

SHIM,.010" Thk

Relief valve (0.25 mm) .010" Thk

1шт.

8

A44883

SHIM,.031" Thk

Relief valve (0.78 mm) .031" Thk

1шт.

8

A44884

SHIM,.062" Thk

Relief valve (1.57 mm) .062" Thk

1шт.

9

A45250

PLUG

ASSEMBLY - relief valve

1шт.

10

A45366

SPRING

- relief valve, 5/8" OD x 2-1/4" free length (15.87 x 57.15 MM)

1шт.

11

A44119

SPOOL

POPPET - relief valve by-pass

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.87 x 19.05 x 2.38 MM)

1шт.

A45252

COVER

ASSEMBLY - flow divider - relief valve (Order A45384), for A137403 pump, Includes: Ref. 16 - 26

1шт.

16

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - with bearings and sleeve (Order A45384), for A137403 pump, Includes: Ref. 17

1шт.

17

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, for A137403 pump

2шт.

18

A44123

PULLEY

PLUG - flow divider, with grooved face, for A137403 pump

2шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.77 MM), for A137403 pump

1шт.

20

A44125

PISTON

- flow divider, for A137403 pump

1шт.

21

A44124

SPRING

- piston, 1/2" OD x 2-13/16" free length (12.7 x 71.43 MM), for A137403 pump

1шт.

22

A44882

SHIM,.010" Thk

Relief valve (0.25 mm), for A137403 pump .010" Thk

1шт.

22

A44882

SHIM,.010" Thk

- relief valve, 0.031" (0.78 MM), for A137403 pump

1шт.

22

A44884

SHIM,.062" Thk

Relief valve (1.57 mm), for A137403 pump .062" Thk

1шт.

23

A45250

PLUG

ASSEMBLY - relief valve, for A137403 pump

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/32" (15.87 x 19.05 x 2.38 MM), for A137403 pump

1шт.

25

A45366

SPRING

- relief valve, 19/32" OD x 2-1/4" free length (15.08 x 57.15 MM) (Replaces A45251), for A137403 pump

1шт.

26

A44119

SPOOL

POPPET - relief valve by-pass, for A137403 pump

1шт.
