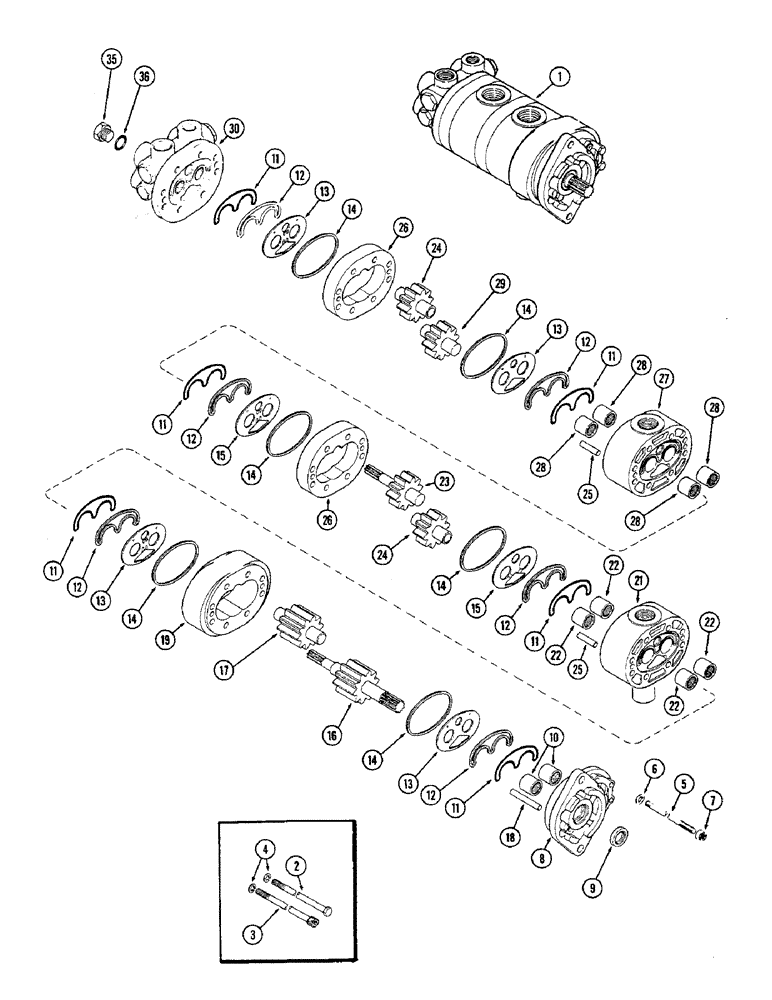

Запчасти Case IH 2470 (346) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

1

A141223

PUMP

ASSEMBLY - hydraulic (With screw type flow divider plugs) (Replaces A137403 and A139176), Includes: Ref. 2 - 36

1шт.

1

A139176

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (With push type flow divider plugs) (Order A141223), Includes: Ref. 2 - 36

1шт.

1

A137403

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (With screw type flow divider plugs) (Order A141223), Includes: Ref. 2 - 36

1шт.

2

A44102

BOLT

- assembly, 3/8 x 10-1/4" NC hex. (When used)

6шт.

3

A44101

HEX SOC SCREW

BOLT - assembly, 3/8 x 10-1/4" NC hex. socket head (When used)

2шт.

4

A32395

WASHER

- pump assembly (Use with A44101 and A44102)

8шт.

5

A45163

STUD

- pump assembly, 3/8-16 x 3/8-24 x 10-1/2"

8шт.

6

A45050

WASHER

- pump assembly, 25/64" ID x 5/8" OD x 1/16" (9.92 x 15.87 x 1.69 MM)

8шт.

7

A45051

NUT

- pump assembly - 3/8"-24 flange

8шт.

8

A44110

HOUSING

BODY ASSEMBLY - drive shaft end, Includes: Ref. 9 and 10

1шт.

9

T39095

OIL SEAL

- oil, pump drive shaft

1шт.

10

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, pump body gear

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - pump pre-load

6шт.

12

NSS

NOT SOLD SEPARAT

SEAL - pump load

6шт.

13

A45046

WEAR PLATE

PLATE - wear, gear (Replaces T39089)

4шт.

14

NSS

NOT SOLD SEPARAT

RING - seal retaining

6шт.

15

A45047

LARGE PLATE

PLATE - wear, gear (Replaces A44103)

2шт.

16

A44108

SHAFT

- pump drive, with gear

1шт.

17

A44107

GEAR

- idler, with shaft

1шт.

18

A44104

PIN

- dowel, body to gear plate, drive shaft end

2шт.

19

A47026

PLATE

- pump gear (Replaces A44105)

1шт.

21

A44111

PLATE

ASSEMBLY - bearing, middle, Includes: Ref. 22

1шт.

22

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

23

T39092

GEAR

- drive, shaft end

1шт.

24

A44106

GEAR

- pump drive

2шт.

25

T39077

PIN

- dowel, gear housing plate

4шт.

26

A45048

PLATE

- pump gear housing (Replaces A45048) (Replaces A44100)

2шт.

27

A44126

PLATE

ASSEMBLY - bearing, middle, Includes: Ref. 28

1шт.

28

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

29

D54175

GEAR

- idler shaft and gear assembly

1шт.

30

REF

INSTRUCTION

COVER ASSEMBLY - rear (See figure 348), Includes: Ref. 35 and 36

1шт.

35

L30425

PLUG

- end cover (When needed - for unused port)

1шт.

A44127

KIT

- major wear plate and seal (Includes ref nos. 9, 11, 12, 13, 14 and 15)

1шт.

A44128

KIT

- seal (Includes ref. nos. 9, 11, 12, 14 and 218-5009 and 218-5007, page 348)

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.
