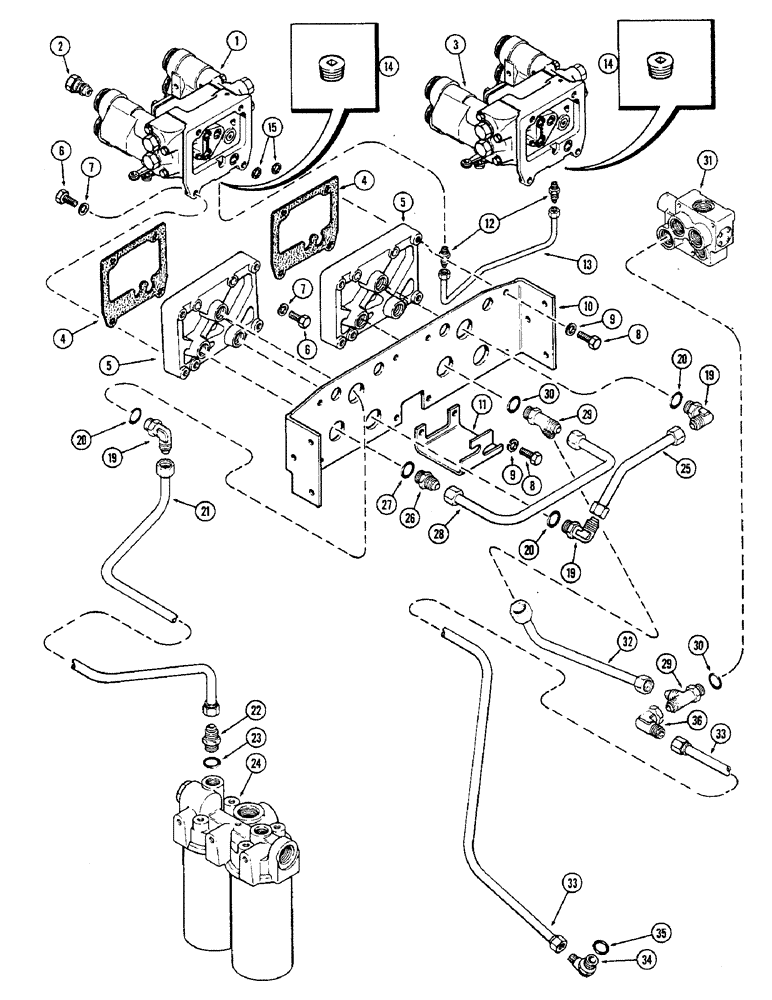

Запчасти Case IH 2470 (340) - TWIN DUAL REMOTE HYDRAULICS CIRCUITRY, TRANSMISSION SERIAL NO. 10025257 THROUGH 10053453 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - twin remote hydraulics (See figure 384)

1шт.

2

A66816

COUPLING, BREAK AWAY

COUPLING - male

4шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - single remote hydraulics (See figure 368)

1шт.

4

A145407

GASKET

- valve to manifold (Replaces A76909) (Order A145407)

2шт.

5

REF

INSTRUCTION

MANIFOLD - remote valve mounting (See figure 332)

2шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Manifold to valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

10

A76612

SUPPORT - side plate, hydraulic couplings

1шт.

11

A76995

SUPPORT

BRACKET - cable mounting

1шт.

12

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight

2шт.

13

A76929

TUBE

- detent crossover

1шт.

14

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. socket head (Discard one plug from each remote valve)

2шт.

15

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET -, Serial Range: valve-manifold

2шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 20 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

3шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

21

A139731

TUBE

- filter to optional twin remote valve

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

24

REF

INSTRUCTION

HOUSING - hydraulic filter (See figure 320)

1шт.

25

A76917

TUBE

- standard single remote valve to optional twin remote valve

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

28

A77022

TUBE

- single remote valve to twin remote valve

1шт.

29

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, Includes: Ref. 30

2шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

31

A76991

VALVE

ASSEMBLY - pressure regulator (See page 352)

1шт.

32

A77017

TUBE

- pressure regulator valve to remote valves

1шт.

33

A139716

TUBE

- pressure regulator valve to transmission sump

1шт.

34

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º adjustable (At sump), Incl. Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.72 x 3.17 MM)

1шт.

36

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at tee (3/4" tube) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.
