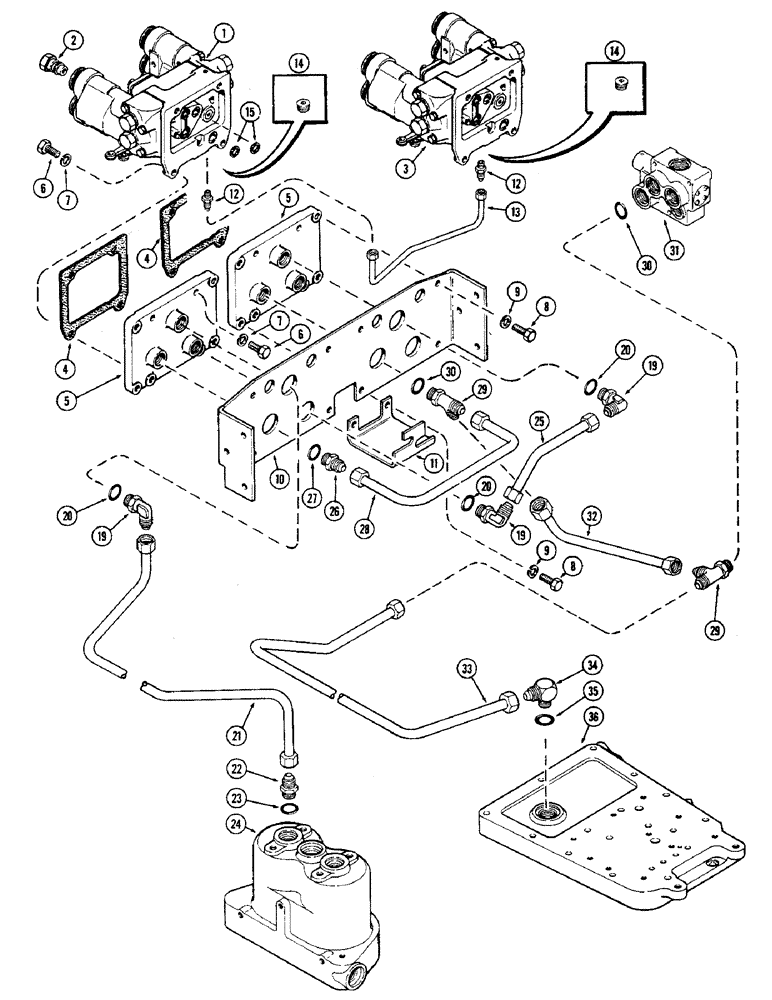

Запчасти Case IH 2470 (338) - TWIN DUAL REMOTE HYDRAULICS CIRCUITRY, PRIOR TO TRANSMISSION SERIAL NO. 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - twin remote hydraulic (See figure 376 and 384)

1шт.

2

A66816

COUPLING, BREAK AWAY

COUPLING - male (See figure 408)

4шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - single remote hyd (See figures 354 and 362)

1шт.

4

A145407

GASKET

- valve to manifold (Replaces A76909) (Order A145407)

2шт.

5

REF

INSTRUCTION

MANIFOLD - remote valve mounting (See figure 312)

2шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Manifold to valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

A76612

SUPPORT - side plate, hydraulic couplings

1шт.

11

A76995

SUPPORT

BRACKET - cable mounting

1шт.

12

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight

2шт.

13

A76929

TUBE

- detent crossover

1шт.

14

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. socket head (Discard one plug from each remote valve)

2шт.

15

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET -, Serial Range: valve-manifold

2шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 20 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

3шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

21

A76919

TUBE - filter to optional twin remote valve

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 2.175 MM)

1шт.

24

REF

INSTRUCTION

HOUSING - hydraulic filter (See figure 318)

1шт.

25

A76917

TUBE

- standard single remote valve to optional twin remote valve

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

28

A77022

TUBE

- single remote valve to twin remote valve

1шт.

29

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, Includes: Ref. 30

2шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

31

A76991

VALVE

ASSEMBLY - pressure regulator (See figure 352)

1шт.

32

A77017

TUBE

- pressure regulator valve to remote valves

1шт.

33

A135649

TUBE

- pressure regulator valve to transmission top cover (Replaces A77018)

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 35 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.451 x 3.17 MM)

1шт.

36

A75178

COVER

- transmission top (Order 1-A154179, 2- 113-417, 2- 113-422 and 7- 113-441)

1шт.
