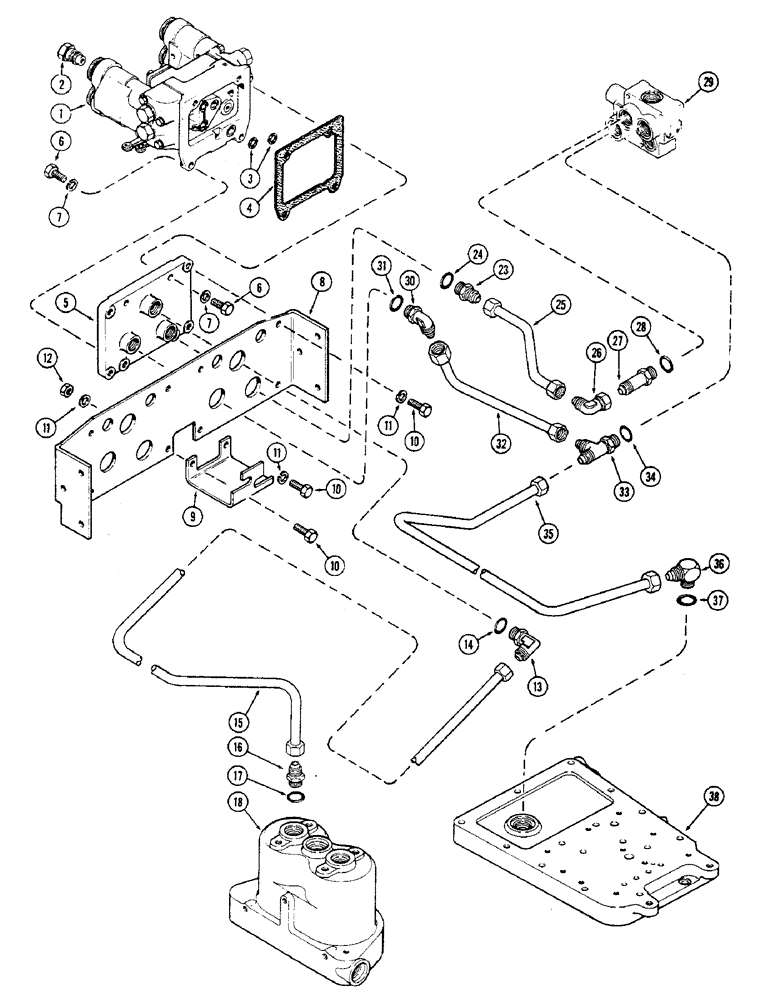

Запчасти Case IH 2470 (330) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, PRIOR TO TRANSMISSION SERIAL NO. 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - single remote hydraulics (See figure 360 and 368)

1шт.

2

A66816

COUPLING, BREAK AWAY

COUPLING - male

4шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET -, Serial Range: valve-manifold

2шт.

4

A145407

GASKET

- valve to manifold (Replaces A76909) (Order A145407)

1шт.

5

REF

INSTRUCTION

MANIFOLD - remote valve mounting (See figure 332)

1шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Manifold to valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A76612

SUPPORT - side plate, hydraulic couplings

1шт.

9

A76995

SUPPORT

BRACKET - cable mounting

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 14 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

15

A76918

TUBE

- filter to standard single remote valve

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

18

REF

INSTRUCTION

HOUSING - hydraulic filter (See figure 318)

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

25

A135649

TUBE

- regulator valve to standard remote valve (Replaces A77018)

1шт.

26

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

27

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

29

A76991

VALVE

ASSEMBLY - pressure regulator (See figure 352)

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 31 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

32

A77017

TUBE

- regulator valve to standard remote valve

1шт.

33

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

35

A135649

TUBE

- pressure regulator valve to transmission top cover (Replaces A77018)

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 37 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

38

A75178

COVER

- transmission top (Order 1-A154179, 2- 113-417, 2- 113-422 and 7- 113-441)

1шт.
